Twin Screw Floating Fish Feed Extruder

  • Clicks:

Twin Screw Floating Fish Feed Extruder:

1. Gear driving, high efficiency, flexible operation control.

2. Lower energy consumption and longer service life.

3. Wide adaptability of raw materials: high viscosity, low viscosity, high moisture, etc.

4. Fewer restrictions on the particle size of the raw materials: fine powders, coarse aggregates,etc

5. Better mixing averages, higher particle uniformity.

6. Better ripening degree, usually reaching 95%.

7. Higher yields with same power

8. Self cleaning and easy to maintain.

9. Wider diversity and adaptability of the final products

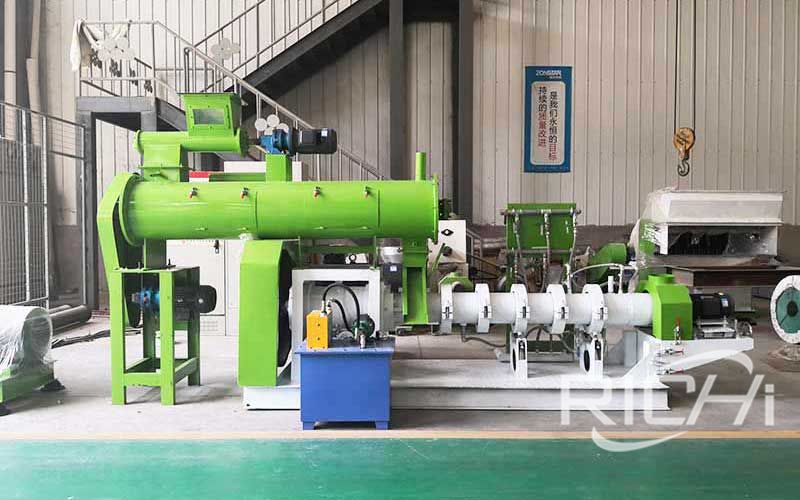

Twin Screw Floating Fish Feed Extruder

Twin Screw Extruder Features

1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.

2. The gearbox can stand strong torque and thrust up to 400hp.

3. Circled tunnel design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.

4. Screw is made of special anti-wear alloy with L/D ratio up to 19.5:1 that assures smoothly production for all kinds of sinking/floating feed.

5. It can deal with different formulation. It can produce pellet with die diameter from 0.5 mm to 10 mm.

6. Fast replacing mechanism for die and screw and on-line adjustment for cutter.

Main Technical Parameters

Model DT98×2 DT128×2 DT150×2 DT170×2
Main power
(kw)
110/132 160/200 250/315 400
Feeder power
(kw)
1.5 2.2 2.2 3.0
Cutter power
(kw)
4 5.5 7.5 11
Conditioner power
(kw)
11 18.5 22 30
Capacity
(t/h)
1.5~3.5 3~8 6~12 10-15
