2021-12-03

7.5T/H Organic Fertilizer Production Business Plan For Cattle Chicken Horse Sheep Manure Pellets

Clicks:

Today RICHI will share with you an organic fertilizer production business plan with an hourly output of 7.5 tons and an annual output of 30,000 tons for cow manure pellets, chicken manure pellets, horse manure pellets, sheep manure pellets.

We provide you with an organic fertilizer production project proposal to let everyone know what services we will provide to our customers, what issues will be considered when planning and designing the organic fertilizer production plant project, and what norms should be followed in the development of fertilizer manufacturing plant business.

horse manure pellet fertiliser machine poultry manure pelleting machine manure pellet machine

However, because customers come from different countries, the differences are very large, so unless they are in the same country or region, there is no project proposal for organic fertilizer that can be fully applied, and they all need to be designed according to actual needs. If you have any doubts, please feel free to contact us as soon as possible.

  • Project name:
    Annual output 30,000 tons of bio-organic fertilizer manufacturing plant project
  • Project construction site:
    The biological organic fertilizer processing project is located 1km away from the nearest village in Pingliang City,  Hebei Provincecow manure pellet machine horse manure pellet maker australia prices
  • Construction content:
    New organic fertilizer fermentation workshop 449.14m², organic fertilizer production workshop 942.24m², organic fertilizer finished product warehouse 987m3, warehouse 81.25m², manure stacking plant 525m², comprehensive office 172.8m², power distribution room and maintenance room 4 and public works, supporting organic fertilizer fermentation equipment, compost fertilizer pellets machine, organic fertilizer screening machine and fertilizer maker machine and packaging equipment, excrement and finished product transportation vehicles, public auxiliary equipment, etc.
  • Working system:
    The 7.5t/h good quality organic manure production plant project is designed to produce 250 days a year, with 2 shifts per day. Each shift works 8 hours a day. Each shift processes 60 tons of organic fertilizer and 30,000 tons of organic fertilizer per year. The organic fertilizer plant can be calculated. The output is 7.5t/h, 120 tons per day, 2500 tons per month.

Main technical indicators of commercial micronutrient fertilizer products ——7.5t/h organic fertilizer business plan

Name Metrics
Qualified product First Class Superior product
Organic content (%) ≥35 ≥45 ≥55
Total nutrient content (%) ≥5.0
Moisture content (%) ≤20
PH 5.5~8.0
Granularity Powder (under 0.5mm) ≥90%
Granular (2.5-6.0mm) ≥70%
manure peletizing machine for sale manure pellet machine for sale usa

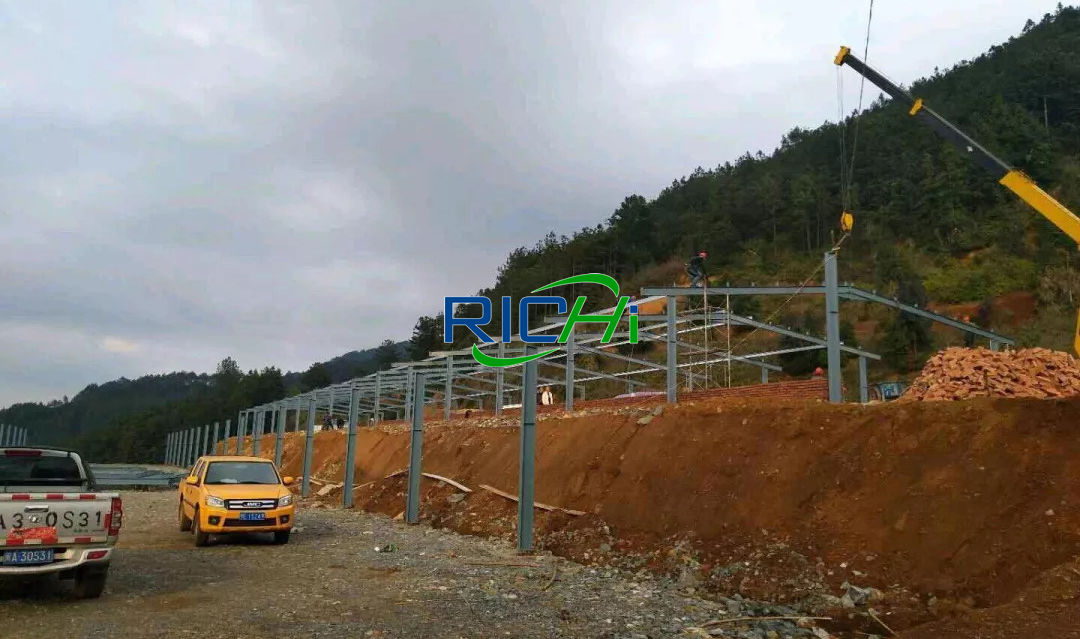

Construction progress of the 7.5t/h fertilizer manufacturing plant—— organic fertilizer business plan

Time Project implementation content
January 2017~March 2017 Preliminary work and preliminary design and construction drawing design
April 2017~September 2017 Construction and installation of biofertilizer manufacturing plant equipment
End of October 2017 Biofertilizer manufacturing plant completed
Before the end of November 2017 Project acceptance and normal operation

Funding and the use of special funds for environmental protection——organic fertilizer business plan

This China supplier offer 7.5t/h biofertilizer manufacturing plant project requires a total investment of 8.8693 million yuan (1391437USD). Among them: the application for special support funds for environmental protection of RMB 2,238,18(35113USD), accounted for 25.19% of the total fertilizer manufacturing plant cost, and the customer's enterprise self-raised RMB 6,648,750(1043071USD), which accounted for 74.81% of the organic fertilizer production plant cost.

how much does pellet manure making machine cost in nigeria today chicken manure pellets plants seeds & bulbs

See the following table for the fertilizer manufacturing plant cost and financing plan:

Name Funds (ten thousand yuan Proportion (%)
Total investment in construction projects 888.693 100
Apply for environmental protection special governance funds 223.818 25.19
Self-funded by the enterprise 664.875 74.81

Utilization of environmental protection funds——organic fertilizer production business plan

Fixed assets investment project Investment(Ten thousand yuan) Special funds for environmental protection (ten thousand yuan) Proportion of investment in environmental protection funds Main purpose
Construction costs 434.155 0 0 Special funds for environmental protection are not used for construction costs
Equipment cost 223.818 223.818 100% Used for the purchase of all equipment in the organic fertilizer manufacturing plant.
Other engineering costs 230.72 0 0 Special funds for environmental protection are not used for other fertilizer manufacturing plant cost
Total 888.693 223.818

Note: The special funds for environmental protection are mainly used for the construction of reasonable design organic fertilizer manufacturing plant facilities and the purchase of biofertilizer manufacturing plant equipment.

horse manure pellet maker vitax 6x odourless pelleted chicken manure natural plant feed organic fertilizer fertilisers

Material consumption and balance analysis——7.5t/h organic fertilizer production business plan

Source of raw materials for the easy to operate good quality fertilizer manufacturing plant for micronutrient fertilizer products

The main raw materials produced by the biofertilizer manufacturing plant project are the manure of dairy cows, beef cattle, chickens, sheep, horse and other livestock and poultry. The manure mainly comes from the scattered households and some large-scale breeding farms around the customer's fertilizers production company.

Type of stool Sources The scale of breeding (heads, only) Stool production (t/a)
Beef cow dung Ankou farmers 6400 46720
Beef cow dung Donghua Farmers 2100 15330
Horse dung Hongyuan Company 2000 14600
Cow manure Donghua Farm 1200 8760
Sheep dung Donghua Farmers 1200 1140
Sheep dung Xihua Farmers 2000 1900
Chicken manure Donghua Farm 85000 4657
machine to make wood pellets from horde manure horse manure pellet machine for sale

Consumption of raw materials——7.5t/h organic fertilizer production business plan

The China factory directly offered good quality fertilizer manufacturing plant project uses manure such as cow manure, sheep manure and chicken manure to process micronutrient fertilizer products. The consumption quota of manure, electricity, water, etc. is shown in the following table:

Item Daily consumption Annual consumption
Raw materials for organic fertilizer production line
Stool 360t/d 90000t/a
Straw and other additional fillers 8.5t/d 2125t/a
Starter 0.33t/d 82.5t/a
Packaging and others 3500 pcs/d 875,000 pcs/a
Fuel power and water and electricity consumption
Water 0.02 tons/ton·year 600
Electricity 11.0 degrees/ton·year 330000
Fuel 0.015 tons/ton·year 450

Machine for making organic fertilizer in the high quality 7.5t/h biofertilizer manufacturing plant

Selection principles of the organic fertilizer manufacturing plant with 7.5 tons capacity

  1. The main fertilizer making machine is compatible with the biofertilizer manufacturing plant construction scale, product plan, and technical plan to meet the requirements of production and users after the biofertilizer manufacturing plant project is put into production.
  2. The capabilities of the main fertilizer manufacturing plant equipment and between the main fertilizer maker machine and auxiliary fertilizer maker machine are matched to each other.
  3. The fertilizer machine is of reliable quality and mature performance to ensure stable production and product quality of the 7.5tph organic fertilizer manufacturing plant.
  4. On the premise of ensuring stable organic fertilizer equipment performance, strive to be economical and reasonable.
  5. The organic fertilizer processing machine to be selected meets the technical standards issued by government departments or specialized agencies.horse manure processing machine pellet system chicken manure pellet machine for sale

Selection of main animal waste granular fertilizer machine——organic fertilizer production project proposal

This 7.5 tons per hour low consumption organic fertilizer manufacturing plant project is equipped with organic fertilizer fermentation equipment, screening treatment equipment, granulation and packaging equipment, excrement and finished product transportation vehicles, and public auxiliary equipment.

Chicken cow dung fertilizer machine name Quantity Specifications and parameters
Special crusher for organic fertilizer 1 LP60*11kw
Conveyor 8 DT500*2.2kw
Mixer 2
Chicken horse sheep cow manure granulator for making fertilizer 1 ZD30-49kw

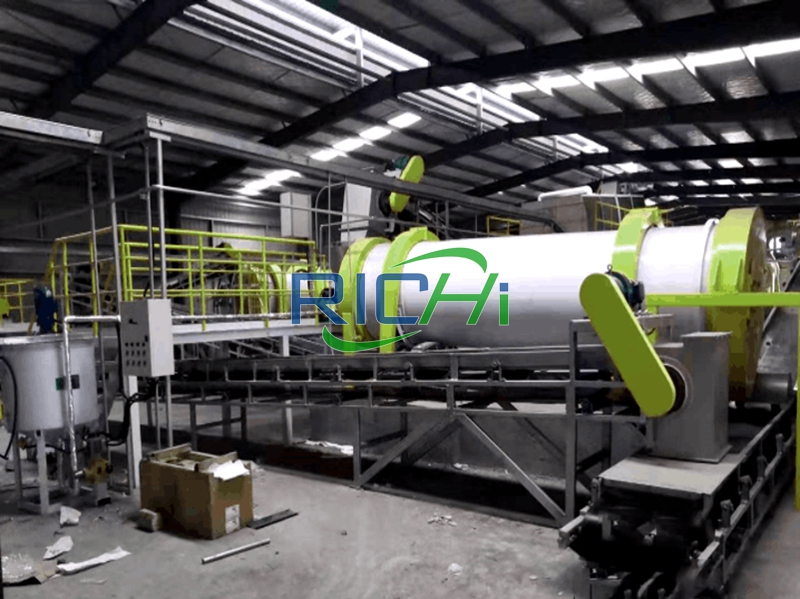

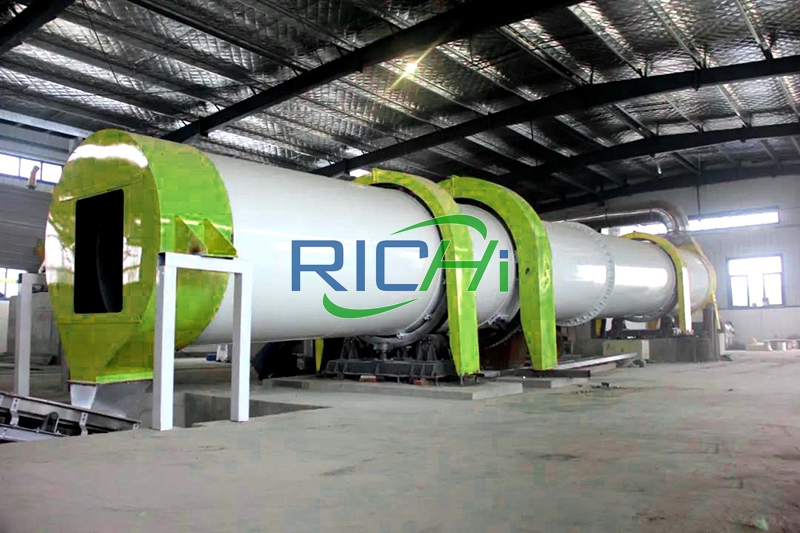

Rotary dryer for fertiliser 1 Φ1.5×12m
Cooling machine 1 Φ1.2×8×2.5m
Induced draft fan 1 4-72N08C*22kw
Finished product warehouse 1
Organic fertilizer screening machine 1 GS12X25*5.5kw
Fermentation turning and polishing machine (cow chicken manure compost machine) 1
Light rail 1

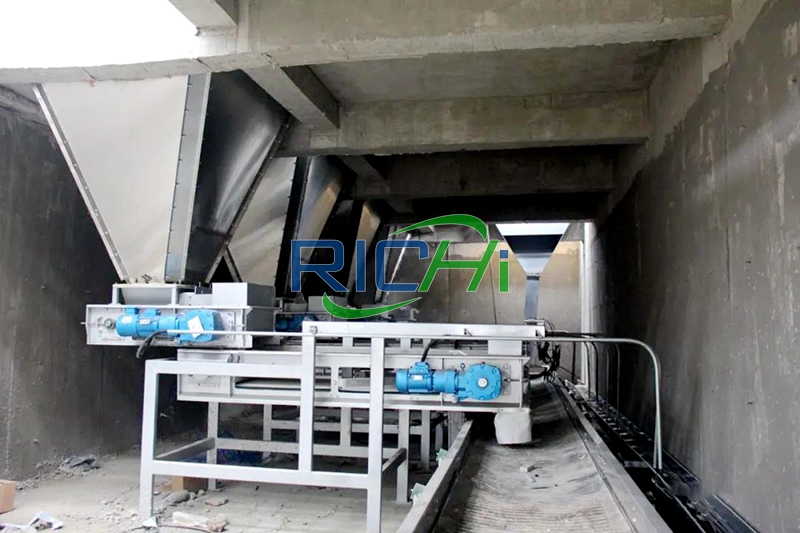

Four warehouse batching machine 1
Lifting belt conveyor 1
Laboratory equipment 2
Finished product transporter 1
Forklift 2
Stool collection truck 2
Raw material loader 1
Forklift 1
chicken manure for fish feedmill organic bchicken manure pellets plant care soil & accessories

Construction standards and design basis of the professional design 7.5t/h organic fertilizer manufacturing plant

Building standards——organic fertilizer production business plan

  1. "Microbial Organic Fertilizer" (NY 884—2012);
  2. "Organic-Inorganic Compound Fertilizer" (GB 18877-2002);
  3. "Determination of Fecal Coliform in Fertilizers" (GB/T 19524.1-2004);
  4. "Determination of Ascaris Egg Mortality in Fertilizers" (GB/T 19524.2-2004);
  5. "Organic Fertilizer" (NY 525—2002);
  6. "Compound Microbial Fertilizer" (NY/T 798—2004);
  7. "Bio-Organic Fertilizer" (NY 884-2012, June 6, 2012), promulgated by the Ministry of Agriculture Announcement No. 1783.chicken manure pellet machine animal waste treat treatment processing conversion fertilizer livestock feed equipment machine solution

Design principles——organic fertilizer production business plan

  1. Implement national and local policies on environmental protection, and abide by relevant national and local laws, regulations, norms and standards.
  2. Using high-efficiency, energy-saving, simple and easy-to-use organic fertilizer production and processing technology to ensure the treatment effect of livestock and poultry manure, reduce project investment and daily operating costs.
  3. Select domestic and foreign advanced, reliable, efficient, convenient management and maintenance cow manure horse manure chicken manure organic fertilizer machine.
  4. Using a reliable and safe control system, realizing scientific and automated management, achieving advanced technology and reasonable economy.
  5. Adopt the principle of long-term planning and phased implementation to coordinate project construction and development planning, which not only protects the environment, but also maximizes the benefits of the organic fertilizer production plant project.fertilizer pellet making machine fertilizer pelletizing machine mini fertilizer pellet making machine

Design specifications——organic fertilizer production business plan

  1. "Technical Specifications for the Harmless Treatment of Livestock and Poultry Manure" (NYT1168-2006);
  2. "Code for Design of Concrete Structures" and partial revision in 1993 (GBJ10-89);
  3. "Code for Design of Building Foundation Foundation" (GBJ7-89);
  4. "Code for Design of Power Installations of General Industrial and Civil Equipment" (GBJ55-83);
  5. "Code for Design of Concrete Structures" (GBJ17-88);
  6. "Code for Construction and Acceptance of Industrial Automation Instrumentation Engineering" (GBJ93—96);
  7. "Hygienic Design Standards for Industrial Enterprises", (GBZ1-2002);
  8. "Occupational Exposure Limits for Hazardous Factors in Workplaces" (GBZ2-2002);
  9. Classification of Hazard Degree of Occupational Exposure to Toxicants (GB5044-85);
  10. "Ambient Air Quality Standard" (GB3095-1996);
  11. "Boiler Air Pollutant Emission Standard" (GB13271-2014);
  12. "Emission Standard of Odor Pollutants" (GB14554-93);
  13. "Emission Standard of Air Pollutants for Industrial Furnaces and Kilns" (GB9078-1996);
  14. "Code for Design of Noise Control in Industrial Enterprises" (GBJ87-85);
  15. "Environmental Emission Standard for Noise at the Boundary of Industrial Enterprises" (GB12348-2008).fertiliser pellet machine rotary dryer for fertiliser sheep wool pellets fertiliser machine

Engineering design and related instructions of the commercial organic fertilizer production plant 7.5t/h

Overview of the construction site of the 7.5t/h biofertilizer manufacturing plant project

  • Geographical location and site location

    The construction site of the good quality biofertilizer manufacturing plant project is located in Xiafanzhuang Community, Wangxiakou Village, Donghua Town, Huating County, 1km away from the nearest village.

  • Site area and status quo

    The site covers an area of ​​14.44 acres (133.4m long in the west, 55m wide in the south, 138.1m long in the east, and 90m wide in the north). It is leased land, with walnut seedlings planted in the nursery of Huating County to the north, town and village roads to the west, and medicinal materials to the south. Planting land, farmland to the east is farmland; now it is barren beach land.

    There are other buildings in the site, and the "five connections and one leveling" have been realized, and the construction conditions are good.jual pressed wood pellet di bandung chicken dung pelletizing machine chemical compound fertilizer pelletizer machine rotary drum granulator raw materials

Conditions for site construction——organic fertilizer production business plan

Earthquake Prevention

According to the relevant regulations of "Building Anti-seismic Design Regulations" (DB62/T25-3055-2011), the area has an anti-seismic and anti-cracking degree of 8 degrees, and a design seismic acceleration value of 0.20g. The design group is divided into the second group, it belongs to the general area of ​​organic fertilizer manufacturing plant engineering construction.

Water supply conditions

The water supply is supplied by a new 5m deep pumped well and a supporting automatic water supply system in the plant area, and a new reservoir of 150m3 in the plant area, which is supplied to the whole organic fertilizer manufacturing plant site through the water supply pipe network.

Power supply conditions

The power used in the plant area is supplied by the 10kv high-voltage line around the site, which has been led to the plant area by overhead. The project area is equipped with a 200kvA transformer and supporting facilities to meet the power demand for organic fertilizer manufacturing plant project construction.

Heating conditions

The heat used in the plant area is mainly fertilizer drying, which is supplied by hot blast stoves; in winter, office heating uses coal stoves, which can meet the needs of the organic fertilizer manufacturing plant project.

fertilizer pellet machine machine to make fertilizer pellets organic fertilizer granulator machine

Environmental protection conditions

There are no large-scale polluting industrial enterprises around the organic fertilizer manufacturing plant site, and the environment is in good condition. After the fertilizer manufacturing plant project is completed, manure will be fermented to process organic fertilizers, which will ultimately realize the recycling of pollutants, ecological, harmless, and reduction, and improve the comprehensive utilization rate of waste, creating favorable conditions for environmental protection.

Flood prevention, moisture prevention, and waterlogging prevention facilities conditions

The fertilizer manufacturing plant project area has a complete drainage and irrigation ditch network, unobstructed water system, high site topography, and good flood control conditions. The project mainly conducts drainage engineering construction for rainwater drainage on the organic fertilizer manufacturing plant site.

Land acquisition and demolition conditions

The land used for the fertilizer manufacturing plant project is state-owned unused wasteland, which is in line with the overall land use planning of the township and the area can meet the construction planning of the organic fertilizer manufacturing plant project. It is now empty land and there is no need to demolish nearby buildings.

General layout of the reasonable price 7.5t/h automatic fertilizer manufacturing plant

General layout principles——organic fertilizer production business plan

  • According to the requirements of organic fertilizer production plant production process, production management, transportation and power, strive for smooth and short production lines, avoid backflow and crossing, and achieve obvious functional divisions of the site.
  • Considering the requirements for disease prevention and epidemic prevention, set a certain epidemic prevention distance between buildings, and consider the dominant wind direction to avoid cross-contamination.
  • Make full use of the terrain, and the layout of the buildings is neat, practical and compact, and the vertical layout meets the organic fertilizer pellet plant production function and the water supply and drainage requirements of the site.
  • Pay attention to environmental construction and do a good job in greening and beautifying the environment.
  • Under the conditions of organic fertilizer pellet manufacturing plant production, sanitation, epidemic prevention and transportation, save land as much as possible.plant feed mineral and organic fertilizer manure pelletizer machine horse manure pellet maker

General layout——organic fertilizer production business plan

The construction site of the 7.5t/h automatic organic fertilizer manufacturing plant project is located in Xiafanzhuang Village, Wangxiakou Village, Donghua Town, Huating County, covering an area of ​​14.44 acres, with a north-south trapezoid shape, high in the south and low in the north. The north is the nursery walnut seedling planting base of Huating County, and the west is the town and village. On the road, the south is the planting base for medicinal materials, and the east is the farmland.

The wind direction is southeast and northwest wind all year round. According to the biological organic fertilizer production process requirements and the topographic characteristics of the organic fertilizer manufacturing plant site, the plant area is divided into two areas: the organic fertilizer manufacturing plant production and processing area, the life management area and the auxiliary engineering area.

horse manure pellet maker uk chicken manure pellets plant care soil & accessories chicken manure to cattle feed process flow

The organic fertilizer production and processing zone is located in the northern part of the organic fertilizer manufacturing plant. It mainly constructs raw material premixed greenhouses, organic fertilizer fermentation workshops (including organic fertilizer fermentation tanks), screening and granulation workshops, finished products warehouses, packaging materials and auxiliary workshops.

The living management area and auxiliary engineering area are located in the southern part of the organic fertilizer manufacturing plant area. It is mainly equipped with comprehensive offices, staff canteens, quality inspection laboratories, power distribution rooms and maintenance workshops, pump rooms and reservoirs, water wells, guards, metering and settlement rooms, etc.

The organic fertilizer production plant opens its gate to the west of the plant, with the main road of the plant 8m wide and the secondary road 5m wide. The roads are all concrete pavements.

Main technical and economic indicators of the general plane——fertilizer manufacturing business plan

Name Quantity
Site area 9531.48 m²(about 14.44 acre )
Building area 4667m²
Building coefficient 48.96%
Road, site hardening, and yard area 2000m²
Structural coefficient 20.98%
Green area 800m²
Greening factor 8.39%

Vertical layout principle of the 7.5t/h customized organic fertilizer manufacturing plant with medium scale

  • Meet the elevation requirements for production, transportation inside and outside the organic fertilizer manufacturing plant, and loading and unloading operations.
  • The elevation and slope of the site should be determined to ensure that the organic fertilizer manufacturing plant site is not threatened by floods, so that ground rainwater can be quickly and smoothly eliminated by the shortest path.chicken manure pellet machine for sale chicken manure pellet machine manure pellet machine

The terrain of the organic fertilizer manufacturing plant area is flat, with a slight slope from north to south. The vertical design is adapted to local conditions, and the slope is 3% to 5% depending on different sections, in order to make reasonable use of the natural slope.

Rainwater from the organic fertilizer manufacturing plant area is discharged outside the site along both sides of the road in the organic fertilizer manufacturing plant area. The indoor and outdoor height difference of the organic fertilizer manufacturing plant building is determined according to its relative position and the requirements of the slope of the drainage system.

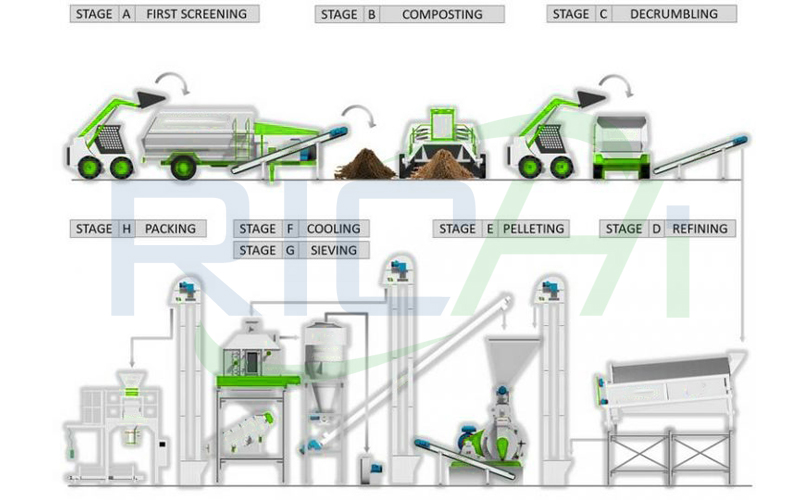

Main technical process of the best soilution 7.5t/h fertilizer manufacturing plant for sale China

Considering the utilization of resources, organic fertilizer manufacturing plant construction conditions and local actual conditions, the customer decided to adopt comprehensive treatment technology, namely, biological fermentation treatment to produce micronutrient fertilizer products.

Pretreatment——complete organic manure production plant process

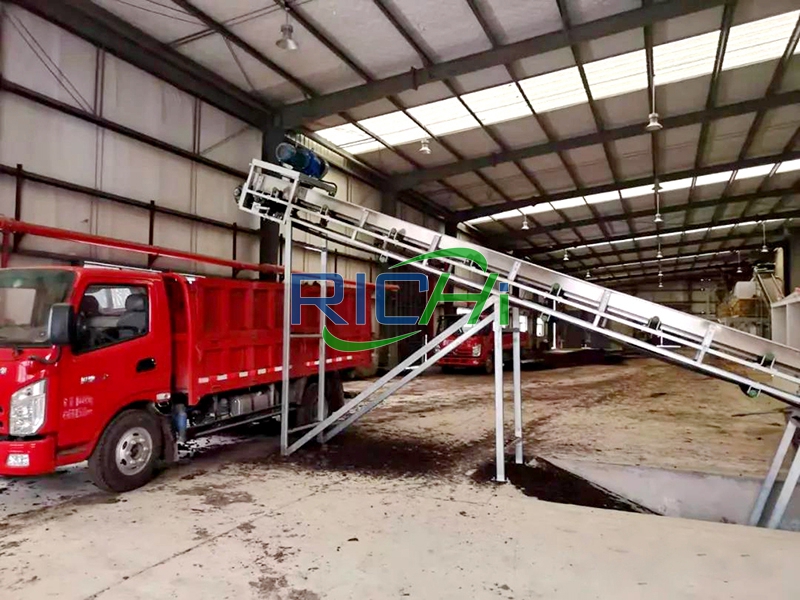

In the livestock and poultry manure transported into the biofertilizer manufacturing plant, a special zeolite biological deodorant is connected. The specific method and dosage is to take 2kg/t of special zeolite biological deodorant and 1kg/t of liquid strain according to the quantity of livestock and poultry manure, adopt the method of feeding and inoculating bacteria, and use manual or auxiliary equipment to remove solid and liquid.

horse manure pellet maker chicken manure fertilizer pellet making machine

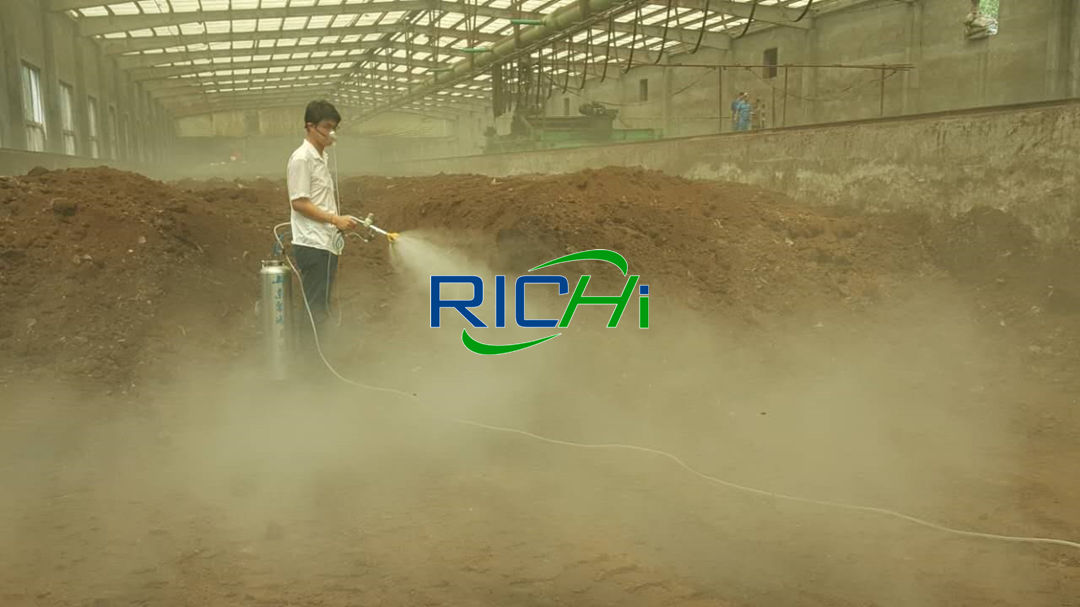

The odorant is evenly spread on the surface of livestock and poultry manure, and then it is transferred to the next cleaning procedure. Use a loader to turn over the deodorized livestock and poultry manure, with manual turning method to remove all sundries such as iron wire, bricks, cement blocks, plastic, wood, glass, rags, etc. After the miscellaneous work is completed, it also plays a role in the mixing of bacteria.

Fermentation——complete organic manure production plant process

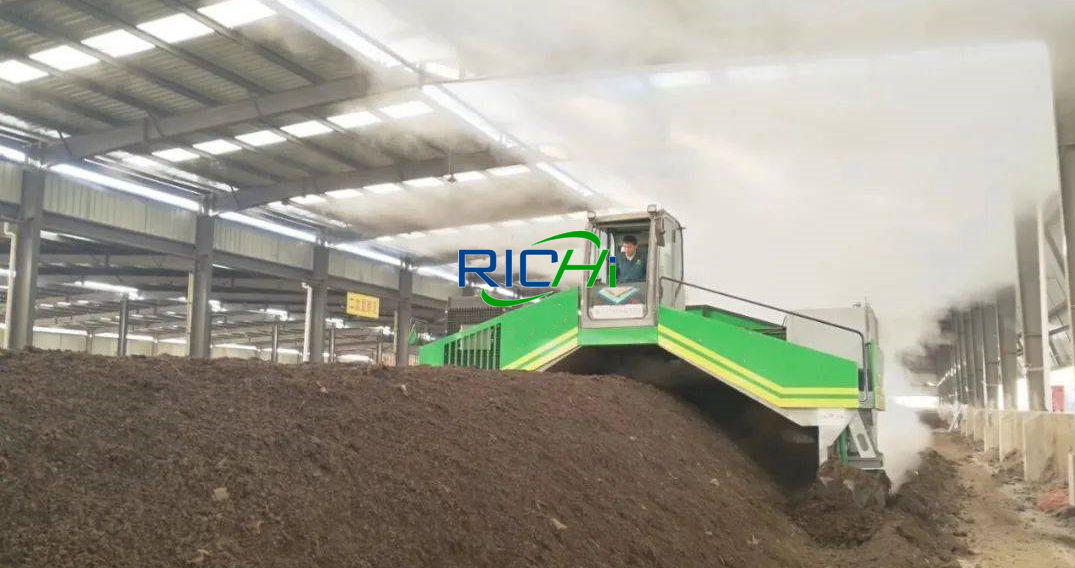

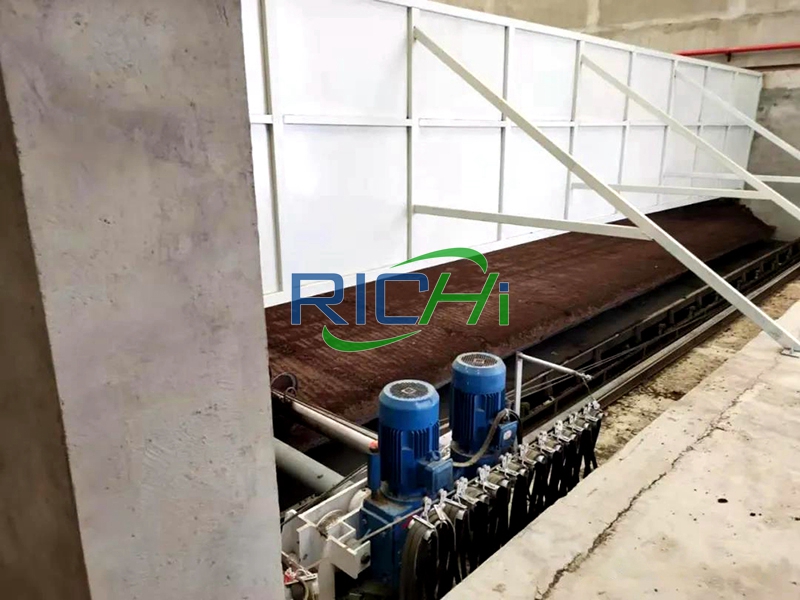

Use a forklift to send the cleaned livestock and poultry manure into the fermentation tank, and at the same time crush a certain proportion of auxiliary materials and add them to the fermentation tank to mix and ferment with the livestock and poultry manure. The daily ingredients are 1/8 of the tank length.

The accumulation thickness of the fermentation materials in the tank is 80-100cm. The continuous aerobic fermentation is carried out by natural ventilation and the oxygen provided by the contact between the materials and the air. The fermentation period is 7-8 days.

cow manure pellets for sale chicken manure pelleting equipment chicken manure organic fertilizer equipment

Under the transportation of the vertical and horizontal traveling mechanism of the turning and throwing machine, the high-speed rotating round rake continuously throws, scatters and produces a certain displacement of the fermented materials, so that the materials move backward in a regular and equidistant manner in the tank.

The fermented materials are transported away from the end of the fermentation tank every day, and the space vacated at the front of the fermentation tank is supplemented with new fermentation materials, thus forming a continuous fermentation process.

The automatic and intelligent control of the fermentation turning process can be realized, and the moisture content of the organic raw materials after fermentation is generally 20%~35%.

manure pelletizer chicken manure pellets pellet chicken manure

Granulation——complete organic manure production plant process

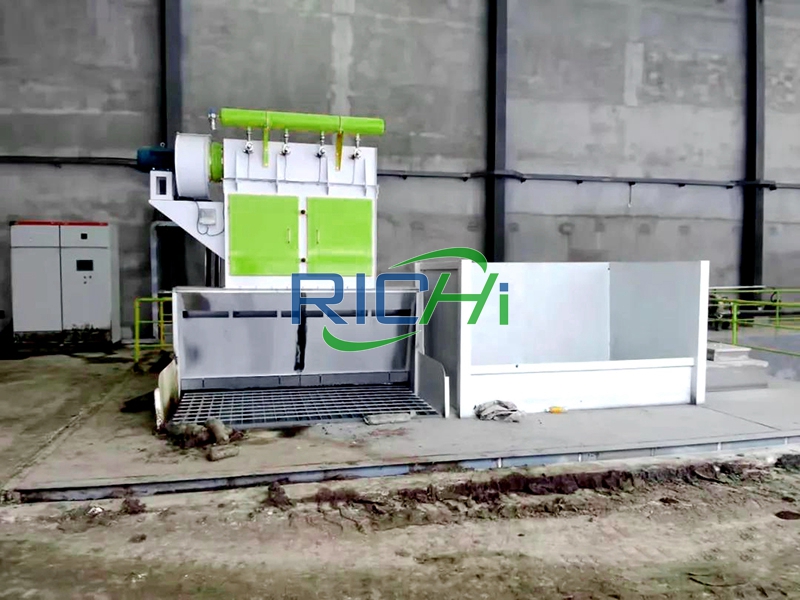

  1. Crushing——complete organic manure production plant process

    After fermentation and storage for days, pulverization is performed, and the fermented organic material is dried, pulverized, and sieved.

  2. Composition and mixing——complete organic manure production plant process

    In the production process of a series of special fertilizers, according to different soil conditions and different crops, inorganic nutrients and concentrated organic matter and trace element minerals are added to make the fertilizer contain a variety of nutrients required for plant growth such as nitrogen, phosphorus, potassium, sodium, manganese, etc., according to the formula, the nitrogen, phosphorus, potassium and the fermented materials are mixed by computer, and the conveyer is sent to the horse sheep chicken cow manure granulator for making fertilizer.
    manure fertilizer pellet machine chicken manure compost machine cow manure fertilizer pellet machine

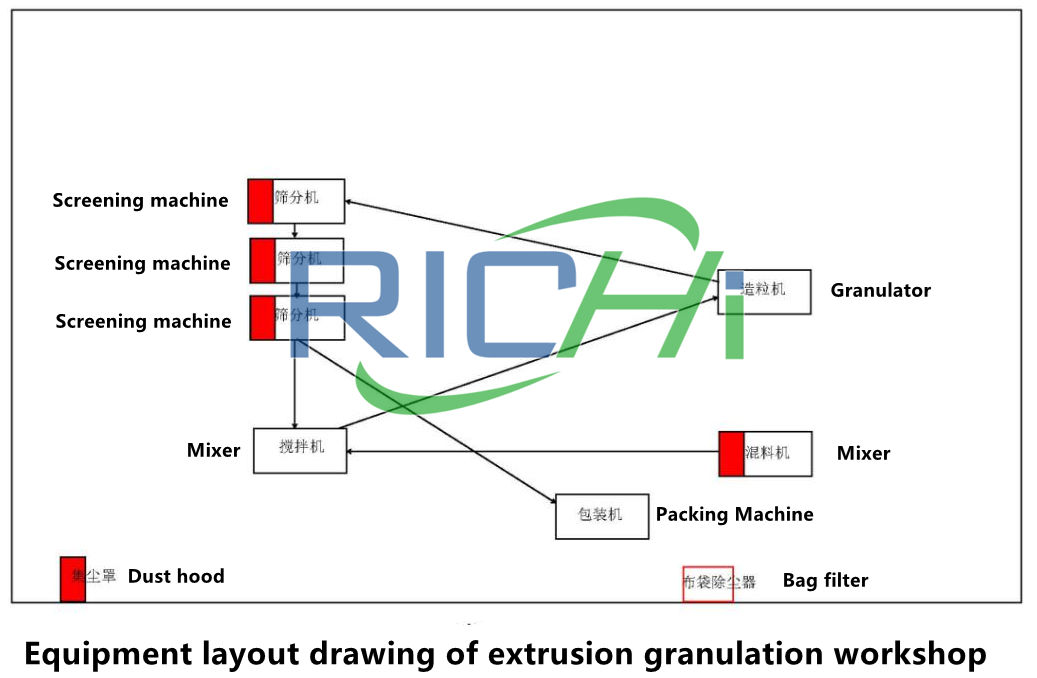

  3. Granulation——complete organic manure production plant process

    Since the production of biological fertilizers is based on organic matter, there are many celluloses, poor molding conditions, and the addition of live bacteria that can make fertilizers, and the organic fertilizer production process is not suitable for high temperature exposure.

    Disc granulation and drum granulation methods are not suitable for the material preparation method, because these two processes require high pulverization of raw materials, and generally have a water content of about 30%. For this reason, the drying load is large and the effective bacteria The loss is also large, and the ball formation rate is low (about 60% to 70%).

    poultry manure pellets animal manure pellet machine

    During the organic fertilizer production process, the dust is very large and the operating environment is very poor, so it is not conducive to the production of organic biological fertilizer. Ring die organic manure pellet machine extrusion should be used to produce better.

    Ring die organic fertilizer pellets granulator extrusion has low requirements for raw material crushing and high forming rate ( 95% or more), the pelleted chicken manure have low water content after molding, and the drying conformity is very small, which can reduce effective bacteria flying and lose dust, and the operating environment is better.

    chicken manure fertilizer machine cow manure pellets horse manure pellets

    The raw materials enter the chicken cow dung fertilizer making machine, and pass in an appropriate amount of steam to bond them into granules. After granulation, the materials are sent to the dryer through a belt conveyor for drying. The manure pellets diameter is 3.0-4.0mm, and the granulation rate is greater than 70%.

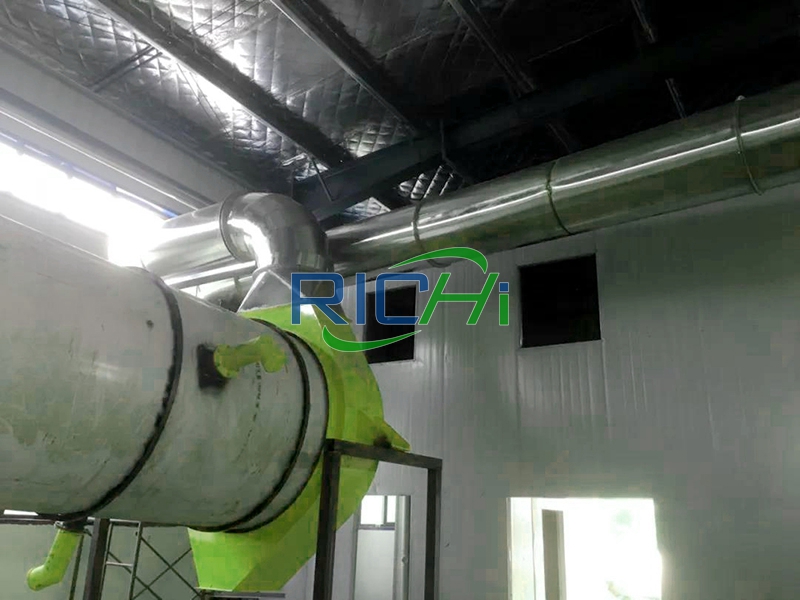

Drying——complete organic manure production plant process

In the production process of biological fertilizers, not only the water content of the pellets after molding generally exceeds the target, and low temperature drying is required, but also the water content of the organic raw materials after fermentation is about 30% to 40%, and the water content of the pellets after granulation by animal manure pellet granulator. Generally, it is between 15% and 20%, and it needs to be dried.

Therefore, the drying section is an indispensable and important process in the production of biological fertilizers. It directly affects the output, quality and energy consumption. It is very important to choose the model and specifications of the rotary dryer for fertiliser reasonably and to control the biofertilizer manufacturing plant process conditions.

manure making machine livestock manure mixing equipment chicken manure pellets for sale

In order to avoid the death of effective living bacteria due to high temperature during the drying process, the drying temperature of the material should not be higher than 60℃ (usually 50℃). For this reason, the temperature of the hot air in contact with the material should be based on the moisture content of the material It varies from one to another.

Generally, it should not exceed 130°C. It is best to control the temperature of the hot air in sections to improve thermal efficiency and avoid the death of effective live bacteria.

cow manure granulation machine manure pellet mill manure processing machinery

There is a secondary granulation zone in the front of the rotary dryer for fertiliser, and the material can realize secondary granulation in this zone. Then the material is lifted up by the lifting plate for sufficient drying. The tail of the dryer is sucked out by the exhaust fan through the pipe, and then enters the settling chamber to settle.

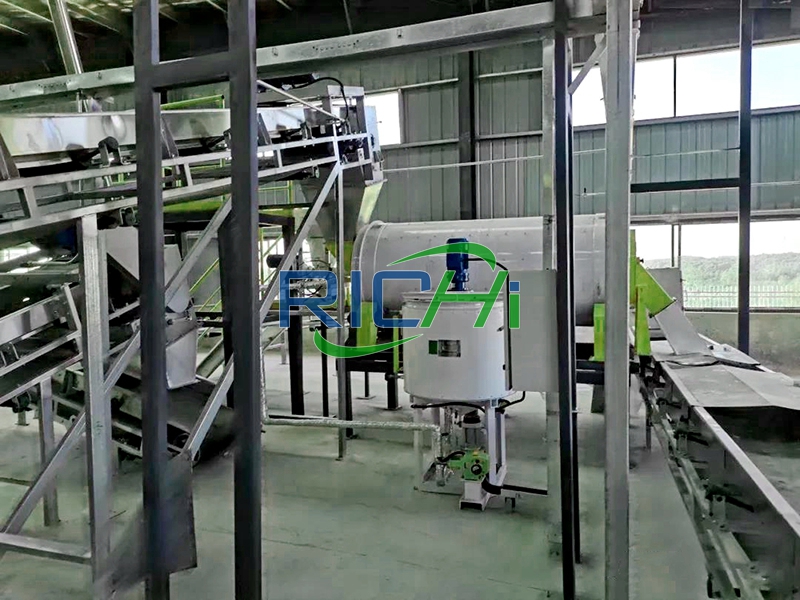

Cooling——complete organic manure production plant process

The dried material is sent to the organic fertilizer cooler by the belt conveyor for cooling. The cooling process is mainly to use a fan to send natural air into the cooler through a pipe to cool the material. The air direction in the cooler is countercurrent, passing through the fan and the pipe. The exhaust gas drawn into the settling chamber is treated the same as the drying exhaust gas and then discharged into the atmosphere.

chicken manure pellet mill cow dung manure making machine chicken manure pellet china manure pellet machine

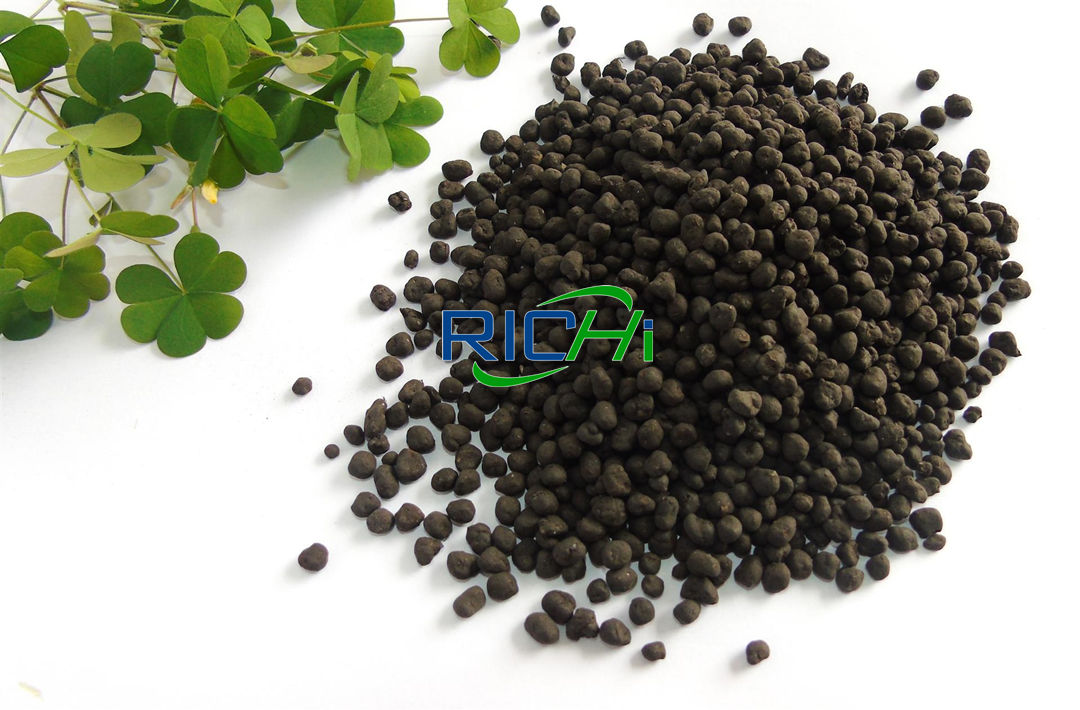

The cooled fertilizer pellets are screened, and the large fertilizer pellet are crushed together with the sieved powder into the return belt and conveyed to the granulator for re-granulation by organic fertilizer granulator machine, and the finished product enters the automatic packaging system for packaging.

Conditions for fecal fermentation of the 7.5t/h commerical organic fertilizer manufacturing plant project

Name Allowable range Remarks
Organic matter 50%~70% Best at 65%
C/N 30:1~35:1 15:1~20:1 after being decomposed
PH value 6~8 Best 6.5~7
Fermentation time 7d~8d
Fermentation temperature 50~60℃

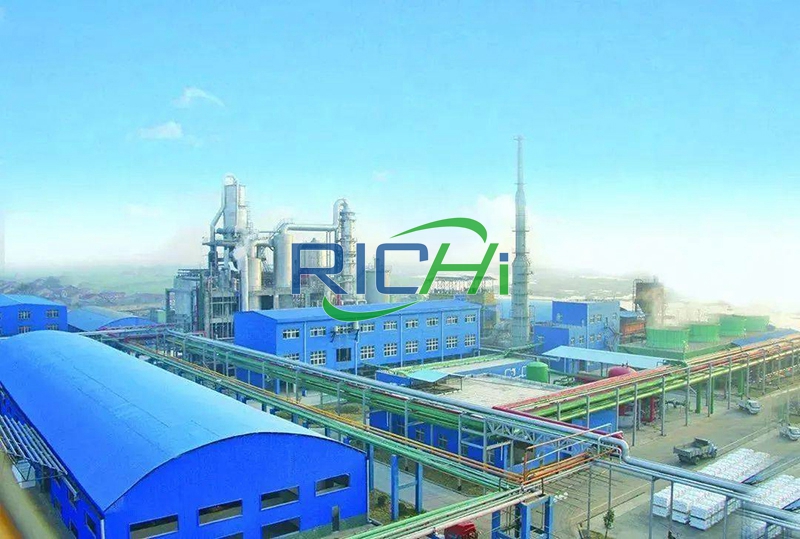

Engineering plan of the 7.5t/h factory sale new design organic fertilizer manufacturing plant

The construction of this reasonable design organic fertilizer manufacturing plant project is mainly composed of the organic fertilizer fermentation workshop, the finished product warehouse of the screening and granulation workshop, the comprehensive office, the staff canteen and the quality inspection laboratory.

Building name Structural form Area (m2)
Organic fertilizer production workshop Bent structure 942
Organic fertilizer fermentation workshop Bent structure 450
Manure dump site Bent structure 525
Product warehouse Door steel frame 987
Raw material stacking workshop Masonry structure 840
Warehouse Door steel frame 81
Staff canteen Masonry structure 63
Integrated Office Masonry structure 172

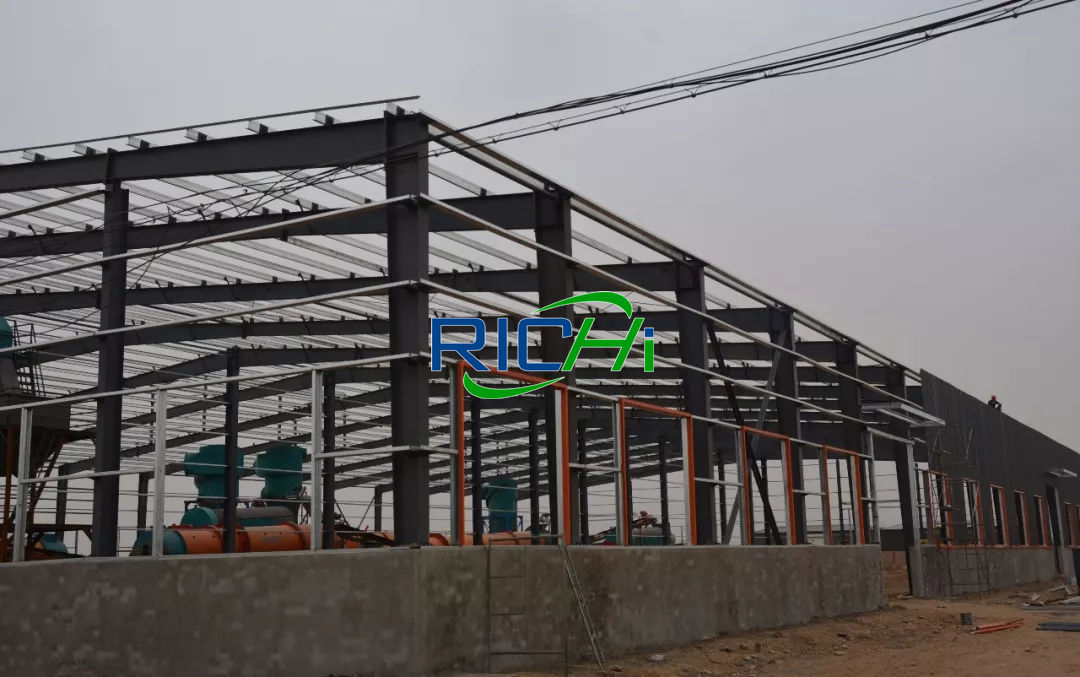

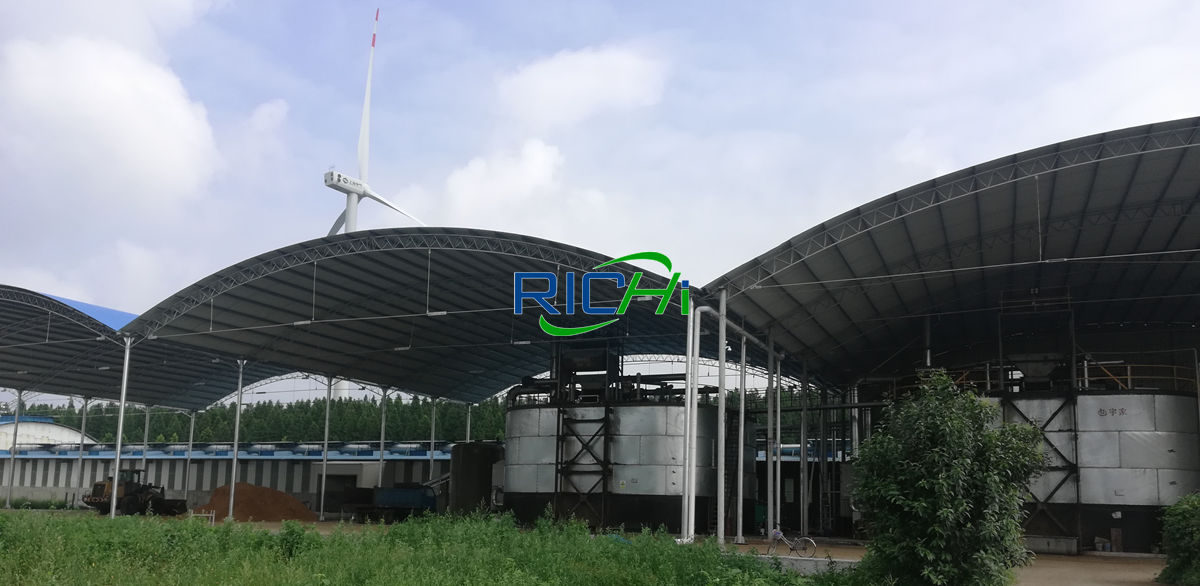

Organic fertilizer fermentation workshop——fertilizer manufacturing business plan

Newly build a new organic fertilizer fermentation workshop with a building area of ​​942m² and a cornice height of 10m. It adopts the bent frame structure, the fire resistance grade is three, and the structural safety grade is two.

Organic fertilizer fermentation workshop——fertilizer manufacturing business plan

The roof is made of light steel roof truss, steel purlins, and thermal insulation color steel plates on the top. Sunlighting strips are installed every other bay on the roof to ensure lighting and temperature requirements in the shed in winter; the load-bearing system adopts reinforced concrete cast-in-place columns.

The surrounding walls are maintained by 240mm thick brick walls, cement-lime mortar is used for the surface; the door is a rolling gate, the windows are steel windows; the cement mortar floor, the concrete anti-skid ramp, the scattered water is the cement mortar surface layer, and the reinforced concrete independent foundation under the column, pouring a geosphere beam under the wall.

poultry manure fertilizer machine sales of pig manure organic fertilizer production equipment

Manure dump site——fertilizer manufacturing business plan

A newly built excrement dump with a construction area of ​​525m² and a cornice height of 10m. It adopts the bent frame structure, the fire resistance grade is three, and the structural safety grade is two.

The roof is made of light steel roof truss, rigid purlins, and thermal insulation color steel plates on the top. Sunlighting strips are installed every other bay on the roof to ensure lighting and temperature requirements in the shed in winter; the load-bearing system adopts reinforced concrete cast-in-place columns, which are set up and down ring beam; the surrounding walls are maintained by 240mm thick brick walls, cement-lime mortar is used for the surface.

The door is a rolling gate, the window is a steel window; the cement mortar floor, the concrete anti-skid ramp, the scattered water is the cement mortar surface layer, and the reinforced concrete independent foundation under the column, pouring a geosphere beam under the wall.

chicken manure organic fertilizer production line cattle manure pelleting machine

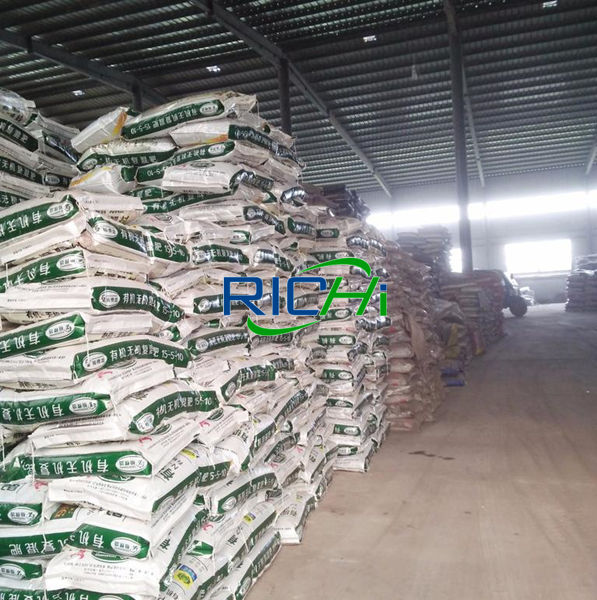

Finished product warehouse——business plan for organic fertilizer

1 newly built finished product warehouse, with a construction area of ​​987m², adopts a portal steel frame structure, the cornice height is 4.2m, the service life is 25 years, and the fire resistance level is three.

The roof adopts portal steel roof truss, rigid purlin, and color steel plate roof. Every other bay of the roof is equipped with sunlight panels to ensure lighting requirements; the main structure is supported by portal steel frame columns, and the surrounding walls are made of 240mm thick bricks.

The wall is enclosed, the windows are ordinary steel windows, the doors are rolling gates, the cement mortar floor, the scattered water is the cement mortar surface, and the concrete anti-skid ramp. A reinforced concrete independent foundation is adopted under the steel column, and a ground ring beam is poured around it.

granule machine for poultry wastemanure fertilizer pellet machine animal manure pellet granulator

Warehouse——business plan for organic fertilizer

1 Newly-built packaging material and auxiliary material warehouse, with a construction area of ​​81m², adopts a portal-type steel frame structure, a cornice height of 4.2m, a design service life of 25 years, and a third-level fire resistance.

The roof adopts portal steel roof truss, rigid purlin, and color steel plate roof. Every other bay of the roof is equipped with sunlight panels to ensure lighting requirements; the main structure is supported by portal steel frame columns, and the surrounding walls are made of 240mm thick bricks.

The wall is enclosed, the windows are ordinary steel windows, the doors are rolling gates, the cement mortar floor, the scattered water is the cement mortar surface, and the concrete anti-skid ramp. A reinforced concrete independent foundation is adopted under the steel column, and a ground ring beam is poured around it.

organic manure pellet machine chicken manure fertilizer complete production line price

Staff canteen——business plan for organic fertilizer

Newly-built a staff canteen and a quality inspection laboratory, with a building area of ​​63m², a floor height of 3.6m, and a height difference of 0.30m between indoor and outdoor. The design service life of the building is 50 years, and the fire resistance grade is three.

The roof adopts reinforced concrete cast-in-place slab, polystyrene board insulation layer, and SBS waterproof layer. The exterior wall uses 370mm thick sintered brick wall, the interior wall is 240mm thick sintered brick wall; the interior and exterior walls and cement mortar are plastered with white paint; the floor is floor tile. The door adopts aluminum alloy casement doors, and the windows are aluminum alloy windows. Brick strip foundation is used under the wall.

chicken manure organic fertilizer machine horse manure fertilizer machine

Integrated Office——business plan for organic fertilizer

Newly build a comprehensive office building with a construction area of ​​172m², a floor height of 3.0m, and a masonry structure with a height difference of 0.45m between indoor and outdoor. The design service life of the building is 50 years, and the fire resistance grade is three.

The roof adopts reinforced concrete cast-in-place slab, polystyrene board insulation layer, and SBS waterproof layer. The outer wall is made of 370mm thick sintered brick wall, and the inner wall is made of 240mm thick sintered brick wall.

The inner and outer walls are plastered with cement mortar and painted with white paint; the floor is floor tiles, the door is made of aluminum alloy casement doors, and the windows are aluminum alloy windows. . Brick strip foundation is used under the wall.

Benefit analysis of the factory offered automatic running organic fertilizer manufacturing plant 2500tons per month

Environmental benefits——organic fertilizer production business plan

This 7.5t/h organic fertilizer manufacturing plant project will carry out organic fertilizer processing after uniform collection of farming manure to solve the environmental pollution problem caused by rural farming, especially free-range farming, turning waste into treasure, improving rural production and living conditions, and reducing environmental pollution caused by livestock and poultry farming, to create an environment for the establishment of animal husbandry development with high-efficiency large-scale breeding of livestock and poultry, safe production of livestock products processing, and a virtuous cycle of ecological environment.

The implementation of this organic fertilizer production plant project will enable the utilization of 93,000 tons of livestock and poultry manure as a resource, reduce COD9585.63t/a, NH3-N 32.285t/a, and effectively reduce environmental pollution in the breeding area.

organic fertilizer manufacturing plant

Economic benefits——organic fertilizer production business plan

According to the various indicators of the financial evaluation of the feasibility study report, the project investment profit rate is 20.9%, the investment profit and tax rate is 26.132%, the financial internal rate of return after income tax is 21.11%, which is 8% higher than the benchmark rate of return.

Judging from the results of the financial evaluation, the project has strong financial anti-risk ability and profitability, and the overall project investment can achieve better financial benefits.

Social benefits——organic fertilizer production business plan

  1. The 7.5t/h customized organic fertilizer manufacturing plant project is based on local resources and industrial comparative advantages. Through the project, the manure pollutants of farmers in the project area and surrounding areas have been effectively treated, so as to achieve effective use of resources and bring the aquaculture industry into the track of a virtuous cycle and ecological balance.

    The 7.5t/h customized organic fertilizer manufacturing plant project will help the local agricultural production move towards a circular agricultural development model integrating planting, breeding and processing, realize the coordinated development of economy, society and resources, and at the same time promote the development of aquaculture and planting in the project area, and can optimize the agricultural industry structure.

  2. According to the development model of "company + base + farmer households", the farm (household) and the leading enterprise can be connected by signing a manure recovery agreement to effectively solve the pollution of the farm and reduce the manure treatment of the farm (household) cost, effective use of manure resources, increase revenue, help protect the ecological environment, and solve the problem of rural non-point source pollution.

    organic fertilizer pelleting machine chicken manure fertilizer pellet making machine

    At the same time, in accordance with the principles of risk sharing, benefit sharing, mutual assistance and cooperation, and joint development, establish a common interest relationship in all aspects of production and sales, trade, industry and agriculture, and give full play to its scale benefits and promote the process of industrialization.

  3. The implementation of the fertilizer manufacturing plant project can add about 35 people in manure treatment, technical services, management, etc., and at the same time, radiation will drive the majority of farmers and growers to solve more rural labor employment.

    In addition, the implementation of the fertilizer manufacturing plant project can promote the cultivation of the development of related industries, such as planting, processing, transportation, and sales, will create more employment opportunities for labor, which will help increase farmers' income, maintain a stable and united social situation, and promote the rapid development of the local rural economy.

  4. In a normal year, sales tax and surcharges of 1,778,700 yuan(279046 USD) and income tax of 1,549,700 yuan(243120USD) can be realized, which will help increase local fiscal revenue and promote economic development.

Helping you Grow your Business

Having the right mix of reliable, high-quality pellet machine and pelletizing systems and expert support is essential to your success. Watch how our end-to-end feed pellet plant solutions have helped our customers optimize their performance.

Our customized and future-proofed turnkey pellet plant solutions is designed with you at the core. From vision to reality and beyond, our team stays connected with yours. Giving you peace-of-mind with an expert at your side.

At RICHI, we go beyond project completion. With RICHI Servicee, we’re your dedicated partners in success. Count on us for expert guidance, minimal downtime, and optimized productivity. Choose RICHI for unmatched service and support.

POSITION IN INDUSTRY

Meet global product demands and quality standards with industry-leading pellet plant design, engineering, equipment, and construction services for pellet processors.

Global Reach, China base

Your Partner Beyond Project Completion

2000+ cases

RICHI is the leading designer, manufacturer and builder of pellet plants in the world, completing over 2000 projects in 140 countries across 6 continents.

Read More

The Right Combination


Increase plant productivity, profitability, and safety by integrating high quality equipment into your pellet production line. Over the years, RICHI has become China's top pellet equipment manufacturer. At the same time, RICHI has established valuable partnerships with the world's leading component and raw material manufacturers to bring you the best there is in technology, automation, and efficiency in pelleting plant machinery.

Industries We Serve

For nearly 30 years, RICHI has been providing best-in-class pellet plant equipment and services to clients across a variety of industries, sizes, and needs. We pride ourselves on the knowledge and skill that each team member possesses – from our technical sales team to our process design engineers. You can count on RICHI Machinery to take your operation to the next level of innovation, quality, and success.

Need help with your pellet manufacturing plant project? Contact us today.



ANIMAL FEED

BIOMASS

WOOD

ORGANIC FERTILIZER

AQUA FEED

CAT LITTER

MUNICIPAL WASTE RECYCLING

SPECIAL PELLET PRODUCTION

RICHI MACHINERY

RICHI Machinery continues to deliver world class pellet mill equipment, pellet plant engineering and project solutions that add value to our customers in the animal feed, wood waste, agriculture waste, organic fertilizer, cat litter and special pellet products industries. Throughout the years, we RICHI Machinery have built strong brand, becoming industry-leading pellet machine manufacturer. We value integrity, promise quality, and prioritize your success.

Learn More

Expertise

With our expert team, we precisely implement your process engineering requirements in pellet mill and pelletizing plant systems. No matter which industry you’re in – we understand your needs and deliver solutions that meet the highest standards.

Quality

At RICHI, quality comes first. Our pellet making machine and related pellet line equipment undergo rigorous quality controls to ensure they meet the highest standards. Rely on products that are durable, safe, and efficient.

Experience

With decades of experience in pellet machine and pellet production line production, we have earned a reputation as a trusted partner in various industries. Our expertise allows us to cover a wide range of applications.

service

Not only do we offer premium pelleting equipment, but we are also experts at designing, building, installing, and maintaining facilities from the ground up. Our expertise is within pellt plant process design, discovering the most efficient, productive, and profitable way to handle your materials in an end-to-end cycle.

contact us

Keeping in touch with us is an effective way to solve all your problems. If you have any needs or questions, please leave your contact information, then RICHI technical consultants will send design, quotation, videos to your mailbox. You can also contact us directly via WhatsApp: +86 13838389622

Application:

* We will store the information you have provided us. We will only use this information for the purpose of helping to answer your inquiries. We will not disclose your information to third parties.

Copyright©2015-2024 by HENAN RICHI MACHINERY CO., LTD. All rights reserved.
