115T/H Super Scale Industrial Animal Feed Factory For Compound And Concentrated Feed Production

  • Clicks:

Overview of the 115t/h super scale industial animal feed factory project for compound and concentrated feed production

The client of this 115 tons per hour super large compound and concentrated animal feed factory project, Qingdao Zhide Animal Nutrition Co., Ltd. of Shandong Province, China, acquired the feed equipment, feed plant and land of Qingdao Fenghui Feed Co., Ltd. located in the north of Xingwu Road, Yuanshang Town, Laixi City, Qingdao City, and invested 50 million yuan (785200USD) to build an annual output of 240,000 Tons of feed manufacturing project.

The big animal feed factory project covers an area of ​​23083m² and a building area of ​​17,160m². The planned construction period of the turnkey project feed factory was 200 days, and it was put into production in the same year. After the full automatic feed factory project is completed, it can promote the development of local planting and breeding industry, promote farmers' income, increase agricultural efficiency, and solve the employment of more than 100 people.

feed mill factory qatar what are the hazard in feed mill factory to be looked by the safety officer

The customer of this large scale animal feed mill factory project invest in a feed manufacturing project with an annual output of 360,000 tons, with a total investment of 120 million yuan (18850000USD). It will be constructed in two phases. The current compound and concentrated feed factory project is a phase 1 project with an annual output of 240,000 tons. The development model of the livestock industry cluster integrating processing, feed production, breeding chicken breeding, chicken hatching, and commercial chicken breeding is introduced into the local area.

feed mill factory for sale food factory machine chicken

  • Construction period
    The construction period of the concentrated and compound feed factory project is from January 2020 to June 2020, and it has been officially put into production at the end of July 2020.
  • Labor quota and work formulation
    The labor quota is 30 people, the 115 tons per hour animal feed factory project produces 260 days a year, each shift is 8 hours, and the system is one shift. It can be calculated that the output of the project is 115 tons per hour, 20000 tons per month, and 923 tons per day.
  • Environmental protection investment
    The total investment of the animal feed factory project is 50 million yuan ((785200USD)), of which the environmental protection investment is about 500,000 yuan (78526USD), which is mainly used for the treatment of exhaust gas and noise.
Get Animal Feed Factory Cost

Construction content and scale of the animal feed factory for concentrated and compound feed production

The industrial animal feed mill factory project covers an area of ​​23083m² and a building area of ​​17,160m2. It mainly includes 1 production workshop, 2 silos, 1 raw material warehouse, 1 finished product warehouse, 1 boiler room, 1 office building and 1 guard room.

feed mill factory structural drawings what is liquid system in feed mill factory

Project category Project name Main project content and scale
Main project Production workshop One 5F, the workshop covers an area of ​​504m², and builds a compound feed production line and a concentrated feed production line, including feeding, crushing, ball milling and other processes
Auxiliary project Silo 2, located on the north side of the feed factory production workshop, each silo covers an area of ​​334.8 m²
Raw material library Building 1, 1F, located on the east side of the feed factory production workshop, covering an area of ​​2010 m²
Finished product library Building 1, 1F, located on the south side of the feed factory production workshop, covering an area of ​​1320 m²
Boiler room Building 1, 1F, located on the west side of the feed factory production workshop, covering an area of ​​103.6 m²
Office building Building 1, 3F, located on the south side of the animal feed factory, covering an area of ​​640 m²
Guardian Room Located in the southeast corner of the animal feed factory, covering an area of ​​10 m²
Utilities Water supply Provided by water company
Drainage After the turnkey animal feed factory project's domestic sewage is collected and pretreated in septic tanks, it is discharged into the local sewage treatment plant through the municipal sewage pipe network for treatment
Power supply Provided by local power supply bureau
Heat supply The office uses split air-conditioning for heating, and the animal feed factory production workshop does not provide heating
Environmental protection project Wastewater After the project's domestic sewage is collected and pretreated in septic tanks, it is discharged into the local Sewage Treatment Plant through the municipal sewage pipe network for treatment
Exhaust gas Dust generated in the processes of powder feeding, pellet feeding, pellet primary cleaning, pellet crushing, mixing, grading and screening, and concentrated feed packaging are processed by the pulse bag filter and passed through a 15m high exhaust cylinder emission.
Noise Using low-noise animal feed factory equipment, plant sound insulation and basic vibration reduction
Solid waste Set up a trash can, general solid waste temporary storage room
Get Animal Feed Factory Cost

Project products and production scale of the 115 tons per hour animal feed factory for concentrated and compound feed production

Products Annual output
Compound feed 9.6t/a
Concentrated feed 14.4t/a
poultry feed factory cost poultry and fish feed factory cost

Consumption of raw and auxiliary materials of the large industrial animal feed factory for concentrated and compound feed production

Name Annual consumption
Corn 36,000 t/a
Barley 12,000 t/a
Soybean meal 112,500 t/a
DDGS 19,300 t/a
Puffed corn 19,200 t/a
Stone powder 4,900 t/a
Bran 19,600 t/a
Rice bran powder 15,200 t/a
Additives 0.21 million t/a
Total 240,800 t/a
Get Animal Feed Factory Cost

Manufacturing process of animal feed in the 115t/h large animal feed processing factory for concentrated and compound feed production

How to handle the process in the animal feed factory? Animal feed manufacturing process is a key link to start a feed mill factory.

modern ultra chicken meat processing factory amazing food processing machines chicken food processing factory machine

Magnetic separation and crushing section in 115t/h feed production factory

Maize, barley and other raw materials need to be crushed, and other powder materials do not need to be crushed. This industial animal feed mill factory project uses 2 sets of feeding systems to feed separately.

Corn, barley and other granular materials are put into the feed inlet and lifted by a bucket-type fast elevator into the cylinder for initial cleaning and screening.

After the high level difference, it directly enters the crushing bin for pulverization, and the crushed raw materials directly enter the batching bin through the high level difference. The powder that does not need to be crushed directly enters the batching bin through the powder feeding port.

ppb feedmill factory fire safety guidelines in feed mill factory

The amount of granular material used in the 115t/h animal feed production factory project is 48,000 t/a. The granular material is screened before crushing, and the impurities such as iron filings and crushed stones in the raw materials are screened out.

The amount of impurities produced in the primary cleaning screen is based on the raw materials. If the amount is 0.01%, the amount of impurities sieved out is about 4.8t/a.

Batching and mixing in feed factory

According to the animal feed mill factory formula, input all kinds of raw materials into the computer, and the computer will automatically weigh the ingredients according to the program.

The prepared materials are automatically put into the mixer for mixing. The mixing mainly adopts a double-shaft paddle animal feed mixer. After each material enters the animal feed mixer machine, the mechanical action of the blade makes the material gradually mixed evenly.

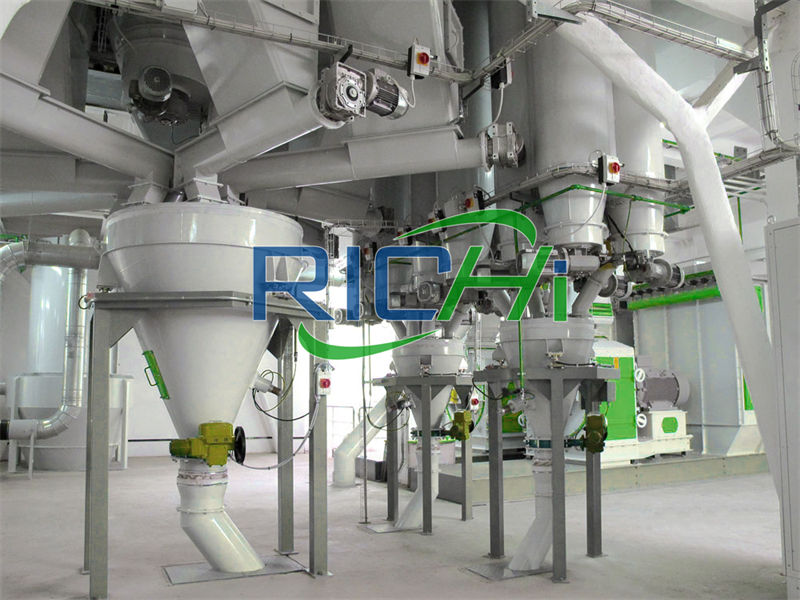

batching and mixing in feed factory how to operate feedmill factory

The large feed mill factory project products include concentrated feed and compound feed. After the ingredients are mixed, the concentrated feed product is obtained. The concentrated feed product is directly packaged into the finished product warehouse; the compound feed needs to be further processed through the feed mill pelletizing process.

Pelletizing section in the large feed mill factory

The large animal feed processing factory project adopts thermal granulation method for granulation. The granulation process uses steam modulation. The 115t/h automatic animal feed processing factory project uses a 2t/h gas boiler to provide the steam required for granulation.

case study on feed mill factory pdf feed mill factorys

The main purpose of pelleting is to improve palatability, increase feed digestibility, reduce animal picky eaters, avoid automatic grading of feed ingredients, and kill Salmonella in animal feed.

After the material is compressed, it is ventilated and cooled. Cooling is a physical process that reduces the moisture inside and outside the feed to the qualified moisture range.

Hierarchical packaging section

The cooled compound feed is sieved by a sieving machine to screen out qualified products, and packed into the finished product warehouse. The powder under the sieve is re-entered into the granulator for granulation.

feed mill factory chicken feed factory

Get Animal Feed Factory Cost

Main animal feed making equipment of the 115 tons industrial feed mill factory for concentrated and compound feed production

Animal feed machine name Model and specifications Quantity
Scraper conveyor TGSU25*12m, TGSU25*16m, TGSU32*6m 3
Bucket elevator TDTG48/33*34.5m 6
Rotary distributor TFPX-4-250, TFPX-6-250, TFPX-10, TFPX-12 5
Ingredients warehouse 24*12.5=300m³ 1
Smashing warehouse 24*6=144 cubic meters 1
Animal feed crusher machine SFP-Y60132H, SFP-Y60160H 2
Biaxial paddle type animal feed mixer SLHSJ4 1
Animal feed pelleting machine SDPM420DC 2
Leveler Resistant spin type 1
Pellet crumbler machine SDPCS120 1
Plane rotary grading screen SFJH120*3c, SFJH120*2c 2
Finished product warehouse 18*4=72 square meters 1
Quantitative packaging scale DCS-50 1
Ingredients weighing bucket 3*3 1
Small material adding scale 150kg 1
Microcomputer batching system LCS-2000 1
Weighing liquid adding system SYTC100 1
Natural gas boiler WNS2-1.25-Y(Q) 1
Permanent magnet cylinder TCXT30, TCXT40 3
Preliminary cleaning SCQ90*80*110 1
Cylinder preliminary cleaning sieve SCY100 1
Air compressor BLX-30A/8 1
Counter flow cooler SKLN4 1
Cooling fan 4-72-8C 1
Get Animal Feed Factory Cost

Utilities of the super capacity leading animal feed mill factory for concentrated and compound feed

Water supply of the animal feed processing factory

The water used in the large capacity animal feed mill factory project is mainly boiler water and domestic water, and the water supply is supplied by the Laixi municipal water supply pipe network.

  1. Boiler water of the animal feed production factory

    The industrial animal feed processing factory project's compound feed needs to use steam in the pelleting process. The animal feed processing factory project is equipped with a 2.0t/h natural gas steam boiler to provide the steam used in the feed pelleting process. When the boiler is operating at full load, the steam generation is 2t/a.

    1T of steam can process about 20t of feed, the annual output of compound feed is 96,000 tons, and the production of the animal feed processing factory project requires 4800t/a of steam. In the actual operation process, the steam generation is about 90% of the full load operation, so the boiler soft water consumption is 5333.3t/a.

    feed mills factory for cattle chicken factory equipment

    According to the boiler's water quality requirements, fresh water needs to be softened before entering the boiler. The purpose of the treatment is to remove calcium and magnesium ions in the water to prevent the water from being too hard and affecting the normal operation of the boiler.

    The soft water preparation system of the animal feed production factory project mainly adopts the "ion exchange resin" process. The soft water preparation efficiency is 95%, and the fresh water consumption is 5614t/a.

  2. Domestic water of the animal feed manufacturing factory

    The large capacity animal feed manufacturing factory project has a labor force of 30 people, a canteen and a dormitory are set up in the animal feed mill factory, and the domestic water consumption standard for employees is 80L/person•d, and the domestic water consumption is about 624t/a. In summary, the total water consumption during the operation period of the animal feed manufacturing factory project is 6238t/a.

    chicken factory equipment feed factory machine

Drainage of the animal feed manufacturing factory

Drainage during the operation period of the large scale animal feed manufacturing factory project is mainly boiler sewage, soft water preparation system waste water and domestic sewage.

  1. Boiler blowdown water In order to prevent pipe scaling during the operation of the boiler of the large scale animal feed manufacturing factory project, part of the sewage needs to be discharged regularly. The boiler blowdown rate is calculated at 3% of the boiler water consumption, and the boiler blowdown is 160t/a.

  2. Wastewater from the soft water preparation system of the animal feed manufacturing factory project accounts for 5% of the fresh water consumption for soft water preparation, so the amount of waste water from the soft water preparation system is 280.7t/a.
    pellets factory feed production factory to buy

  3. Domestic sewage of the animal feed manufacturing factory project is calculated based on 85% of the water consumption, and the annual production of domestic sewage is about 530.4t/a. In summary, the wastewater discharge during the operation period of the animal feed manufacturing factory project is 971.1t/a.

    The large feed mill factory project's boiler sewage and soft water preparation system waste water are used for sprinkling in the plant area to suppress dust; domestic sewage is collected and pretreated in septic tanks, and then discharged into the local sewage treatment plant through the municipal sewage pipe network for treatment.
    feed mill factorys construction feed mill factory erection

Electricity of the 115tph large animal feed plant factory

The power supply for the large capacity animal feed plant factory project is provided by the municipal power grid, with an annual electricity consumption of 500,000 KW•h.

Cooling and heating of the 115tph large animal feed plant factory

The industial scale animal feed mill factory project workshop does not need heat for production, and the office adopts air-conditioning for cooling and heating.

Get Animal Feed Factory Cost

The above is the article for you: 115T/H Super Scale Industrial Animal Feed Factory For Compound And Concentrated Feed Production. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: sales@cnrichi.cn
