1T/H Straw Pellet Production Line in Vietnam

Home > Wood Pellet Production Line >

Name:Straw waste pellet plant for fuel
Capacity:2500 t/a
Pellet Size:6-12mm
The install period:30 Days
Control Mode:Semi-automatic
Guiding Price:180,000 USD

1T/H Straw Pellet Production Line in Vietnam

Origin of 1 t/h straw pellet production line in Vietnam

The development of biomass resources and straw resources is a strategic measure to promote energy conservation and emission reduction. It is an important aspect of promoting the development of circular agriculture and building modern agriculture. It is also an effective way to protect the ecological environment and make rational and effective use of agricultural resources.

Choosing biomass pellet fuel instead of burning coal and oil can not only meet the requirements of environmental protection, but also be more affordable. In this context, in order to meet market demand and increase corporate benefits, the client of this project decided to invest US$180,000 to build this straw pellet plant project with an annual output of 2,500 tons.

1T/H Straw Pellet Production Line in Vietnam

The 1 t/h straw pellet production line in Vietnam project covers a total area of 480m2 and is mainly made of agricultural straw and bark. , waste wood chips, sawdust, pasture, cereal grass, etc. are used as raw materials and processed into biofuel straw pellets. ​

  • Labor system and staff: This project has a labor capacity of 20 people. There is no canteen or dormitory. It works 150 days a year, one shift, and works 8 hours a day. ​
  • Power supply: The power supply of this biomass pellet production line project is uniformly supplied by the power supply grid, which can meet the power needs of enterprises and does not require a diesel generator.
  • Investigate the marketing channels and determine the type of feed to be produced. Including feed quality and output requirements, and determining the formula for feed processing.
  • Steam supply: The heat supply for this 1 t/h straw pellet production line in Vietnam project is drying heat, and the heat source is provided by a 0.5t/h steam boiler. The fuel is molded biomass straw pellets, with a total annual consumption of 200t, which can meet the heating needs of the project.

Raw and auxiliary materials

The main raw material consumption of the 1 t/h straw pellet production line in Vietnam project is shown in the table below:

Raw material name Dosage Remark
Straw pellet raw materials 2800 Contains agricultural straw, bark, waste wood chips, and sawdust (moisture content is about 23%)
Woven bag About 100,000 25kg/bag
Straw pellet fuel 200t Produced from this project

Note: The raw materials for this 1 t/h straw pellet production line in Vietnam project are directly provided by the suppliers. Some raw materials have been crushed before entering the factory. Some uncrushed raw and auxiliary materials can be crushed directly after entering the factory and stored in the workshop. ​ (Maybe  you are interested in our case:10-12 T/H Biomass Pellet Production Line in Thailand

Product plan and scale

The product plan of this 1 t/h straw pellet production line in Vietnam project is shown in the table below:

Product name Annual output (t) Product specifications Storage location
Straw fuel pellets 2500 6㎜-12㎜ In the workshop

Straw pellet fuel product indicators

NO. Item Unit Technical indicators
1 Calorific value MJ/kg ≥16.9
2 Volatile matter % ≥80
3 Full sulfur % ≤0.05
4 Moisture % ≤13
5 Ash content % ≤4
6 Apparent density g/cm3 >1.0
7 Breakage rate % <2

Construction content and scale

This 1 t/h straw pellet production line in Vietnam project covers an area of 3080m2, and the total construction area of the project is 2549m2. The project composition is detailed in the table below:

Construction type Construction content
Structural work Production workshop (1728m2), with an annual production of 2500 tons of biomass particles
Auxiliary works Office building (768m2)
Public works Water supply A deep well in the factory area
Drainage Anti-seepage dry toilet
Powered by Unified supply of power grid
Heating Production heat supply is provided by a 0.5t/h biomass boiler
Environmental Engineering Wastewater Production is not drained, domestic sewage is collected through anti-seepage dry toilets, and is regularly cleared and used as agricultural fertilizer; boiler effluent is used for dust suppression in the factory area.
Exhaust gas The crushed and granulated dust is discharged through a 15m high exhaust pipe after being treated by a bag dust collector. The boiler flue gas is discharged through a 20m chimney after being treated by a bag dust collector.
Noise Vibration reduction, sound insulation, noise elimination
Solid waste Domestic waste and raw material residues are uniformly processed by the environmental sanitation department; dust collected by bag dust collectors is reused; boiler ash and slag are transported out to be used as agricultural fertilizer.

List of main buildings of 1 t/h straw pellet production line in Vietnam

Number Buildings Covered area (㎡) Building area (㎡) Remark
1 Office building 384 768 Newly built (including shower room)
2 Production workshop 1728 1728 Newly built, integrating production and warehouse functions
3 Anti-seepage dry toilet 5 5 Make use of the old
4 Boiler Room 48 48 Build a new boiler room, covering an area of 24㎡

Production process of 1 t/h straw pellet production line in Vietnam


Raw material processing

Straw has many components, including various celluloses, hemicelluloses and lignin. When processing straw, it is necessary to remove foreign matter and remove impurities, and at the same time separate the straw to ensure the quality of the straw.



Straw has a high moisture content and needs to be dried. After drying to remove moisture, production costs can be reduced and the density and quality of the particles can be improved.



The dried straw needs to be crushed and processed into small particles to facilitate subsequent granulation processing. Common crushing methods include blade and hammer mills.



The core step of straw granulation is granulation. The crushed straw is processed through a straw pellet machine, heated to a certain temperature and then pressed into cylindrical or spherical pellets. The granulation process is divided into two stages: shaping and hardening.



After granulation, the surface temperature of the straw pellets is high and cooling treatment is required to prevent spontaneous combustion of the straw pellets and is also beneficial to the storage and packaging of the straw pellets.



After the straw pellets are cooled, they need to be screened to screen out the straw pellets that are too large or too small to ensure the uniformity of the straw pellets.



The straw pellets processed through the above steps need to be packaged. Common packaging materials include bags and bulk.

In general, the production process of straw pellets is a comprehensive technology that includes multiple steps. The processing method of each step needs to be strictly controlled in order to produce high-quality straw pellets.

Production equipment for 1 t/h straw pellet production line in Vietnam

The main production equipment of the 1 t/h straw pellet plant in Vietnamproject is shown in the table below:

NO. Device name QTY
1 Straw crusher 1
2 Straw pellet mill 1

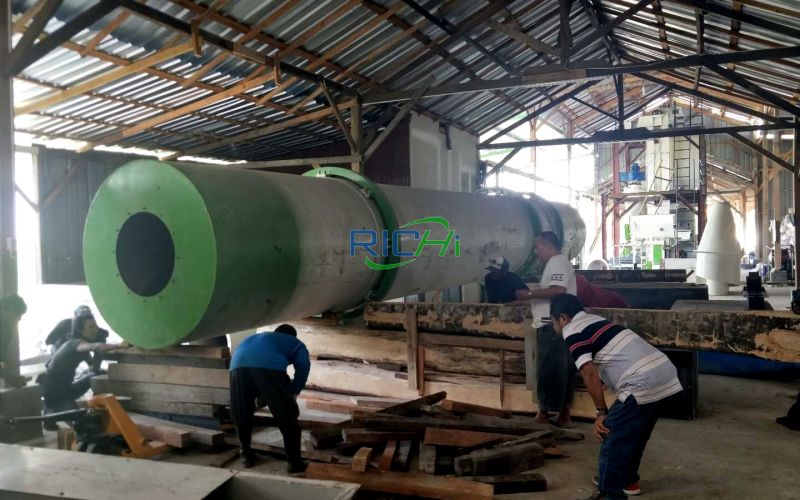

3 Straw dryer 1
4 Conveyor 2
5 Biomass boiler (0.5t/h) 1

Environmental protection measures

Item Emission source Pollutant name Prevention Expected governance effects
Wastewater Staff life Domestic sewage Enter the anti-seepage dry toilet, clean it regularly and use it as agricultural fertilizer. Waste water is not discharged outside
Ambient air Crushing and granulating dust Dust 4 gas collecting hoods + 1 bag dust collector + 15m high exhaust pipe Exhaust gas emissions meet standards
Boiler flue gas Smoke SO2, NOX 1 bag dust collector + 1 20m high exhaust pipe
Unorganized emissions Dust --
Solid Waste Staff life domestic waste Centralized collection and handed over to environmental sanitation department for processing No secondary pollution
Bag dust collector collects dust Dust reused in production
Boiler Ash Shipping to make agricultural fertilizers
raw material muck Collect them together and hand them over to the environmental sanitation department for processing
Noise The main noise sources of the project are mechanical noise and aerodynamic noise such as crushers, granulators, fans, etc. The source intensity is 75-83dB(A). By taking measures such as vibration reduction, sound insulation, and installing mufflers on fans, the noise at the factory boundary has been reduced. It can meet the "Environmental Noise Emission Standards at the Boundary of Industrial Enterprises".

First of all, we all know that straw is the waste left after harvesting crops. If not utilized, they can become a source of environmental pollution. Nowadays, with the increasing depletion of resources and the increasingly serious environmental problems, the development and utilization of new energy has become a top priority.

In this context, straw pellet fuel has become a very promising new form of energy. So, what exactly is straw pellet fuel? Simply put, it processes straw and compresses it into small particles for combustion.

This kind of fuel has the advantages of high calorific value, low ash content, low sulfur content, and low nitrogen oxides. It can not only replace traditional fuels, but also reduce the environmental burden and achieve environmental protection and energy saving.

Straw pellet fuel processing is a very meaningful job. It can not only solve the problem of waste straw disposal, but also contribute to the development and utilization of new energy.

In addition to this 1 t/h straw pellet production line in Vietnam project, Richi Machinery has currently exported straw pellet machines and straw pellet production lines to Malaysia, Indonesia, India, Moldova, Russia, Germany, the United States, Canada, Australia, New Zealand, Argentina, Brazil, South Africa, Ghana and other countries.

The processed pellets can be used for both fuel and feed. If you are also interested in starting straw pellet processing business, contact Richi Machinery to get a detailed production line design plan and quotation!
