Wood Chip Dryer Machine in United States for 10 t/h wet feed. Review drum specifications, water removal and integration with existing biomass fuel handling.

The wettest truckloads were the priority. Drying every tonne in a power station's fuel yard would add unnecessary heat demand. This project focused on conditioning a wetter wood-chip stream before it returned to the existing boiler-fuel system.
The customer brief for this wood chip dryer machine in United States describes an energy company operating three biomass power plants and handling approximately 500,000 metric tonnes of wood fuel annually across those sites. The replacement duty covers one station's wet-fuel stream: 10 metric tonnes per hour entering the dryer, about 11 U.S. short tons. The receiving yard, screening equipment and boiler-feed infrastructure remain outside the new machine purchase.
Name:
Wood Dryer Project
Country:
United States
Date:
2024.07.12
Capacity:
10T/H
Raw material:
Forestry residues, Sawdust, Recycled wood
The install period:
7 Days
Heat Source:
Electricity
Model:
φ1.8*12*3C
The specified feedstock is clean forestry-residue chips and chipped sawmill offcuts. Softwood and hardwood batches can both enter the preparation route, but their chip thickness, bark content and incoming moisture are recorded separately. Rain-soaked deliveries receive particular attention at unloading.
Prepared chips are predominantly 10–30 mm long, with a trial thickness window of 2–6 mm. Oversize pieces return to the chipper. Screening and metal removal protect the dryer and downstream conveyors; soil and stones are removed through the appropriate cleaning stages.
Loose sawdust follows a separately assessed handling route. Its entrainment and drying behavior differ from those of chips. The purchase specification also excludes painted, preservative-treated and mixed demolition wood. Drying removes water; it does not establish whether contaminated wood is an acceptable boiler fuel.
Lots already meeting the boiler's agreed moisture window can bypass drying. That decision keeps the dryer available for material requiring treatment and avoids spending fuel on wood that is already suitable.
The reference duty reduces moisture from 45% to 30%, both on a wet basis. Each hour, 10,000 kg of incoming chips contains 5,500 kg of dry wood solids. With those solids conserved, the discharge weighs approximately 7,857 kg/h and water evaporation is approximately 2,143 kg/h.
These figures describe the prepared material crossing the dryer inlet, after upstream rejects have been removed. Any dry solids collected separately downstream must be included in the acceptance balance. A wetter delivery increases evaporation demand, so retaining the same feed rate requires sufficient thermal and airflow capacity.
RICHI's published Φ1.8 × 24 m rotary dryer provides a reference platform for engineering review. Its listed drum-drive power is 15 kW. Final selection depends on representative chip trials and the required evaporation duty; drum dimensions alone cannot confirm the project's throughput.
| Equipment or duty | Reference specification |
|---|---|
| Dryer arrangement | One rotary drum with matched heating and exhaust equipment |
| Reference drum model | Φ1.8 × 24 m |
| Published drum-drive power | 15 kW; auxiliaries and thermal input additional |
| Prepared wet-feed target | 10 metric t/h |
| Reference inlet moisture | 45%, wet basis |
| Target outlet moisture | 30%, wet basis |
| Calculated product flow | Approximately 7,857 kg/h |
| Calculated evaporation | Approximately 2,143 kg/h |
| Reference product dimensions | Predominantly 10–30 mm long; 2–6 mm trial thickness |
| Proposed heat supply | Natural-gas-fired hot-air package, sized separately |
Lifting flights raise and release the chips through the gas stream as the drum rotates. Their arrangement is reviewed against bulk density and chip geometry. The dryer changes moisture content; the chipper and screen establish the fuel dimensions.
The commercial schedule identifies the drum, feeder, heat generator, fan, separation equipment and controls individually. Buyers evaluating a roller drying machine need the same separation between drive power, total electrical load and heating duty.
For preliminary budgeting, an assumed fuel-energy requirement of 4 MJ per kilogram of evaporated water gives approximately 8.6 GJ/h, or 2.4 MW, at the reference duty. This is an engineering allowance for evaluation, subject to testing. It is separate from the drum's electrical rating.
The economic review compares dryer fuel and electricity costs with the value of meeting the receiving boiler's fuel specification. Natural gas availability provides a defined starting point. A future alternative heat source requires its own combustion, gas-cleaning and control assessment.
Inlet moisture, chip thickness, gas flow and retention time are evaluated together. Acceptance records include feed and discharge weights, moisture samples, gas consumption and electrical demand. Fuel heating value is measured on an agreed basis; a moisture target alone does not guarantee a fixed calorific value.
A wood chip drying system in the USA must also fit the site's operating practices. The interface review covers the 60 Hz electrical supply, confirmed voltage, conveyor elevations, exhaust routing and access around the drum supports. Foundation loads and thermal movement are included in the installation drawings.
Discharged chips pass through the agreed temperature check before entering the existing enclosed mechanical conveyor and fuel buffer. Storage residence time and pile management remain part of the station's operating plan. Thirty-percent moisture does not make wood chips immune to biological activity or self-heating.
The control schedule defines feed-loss response, temperature alarms, burner permissives and shutdown sequencing. Spark detection, extinguishing and dust-explosion protection are specified through the site's hazard review, with responsibilities assigned between equipment suppliers and the plant.
Pre-start inspection covers drum alignment, support rollers, drive guards and seals. The service plan identifies lubrication points, wear inspections and access for clearing material safely. A cold mechanical run precedes the heated material test.
Air-permit review addresses the actual dryer, burner, fuel and exhaust treatment. Applicable particulate and organic-emission limits, sampling conditions and test methods are established for the site. RICHI provides the agreed equipment information; the owner and its environmental team manage the permitting process.
Planning assumes two shifts providing 20 productive hours daily over 300 days: 60,000 tonnes of prepared wet feed annually at the target rate. Existing station personnel provide shift supervision and maintenance coverage. Changeovers, outages and off-specification material require separate allowances.

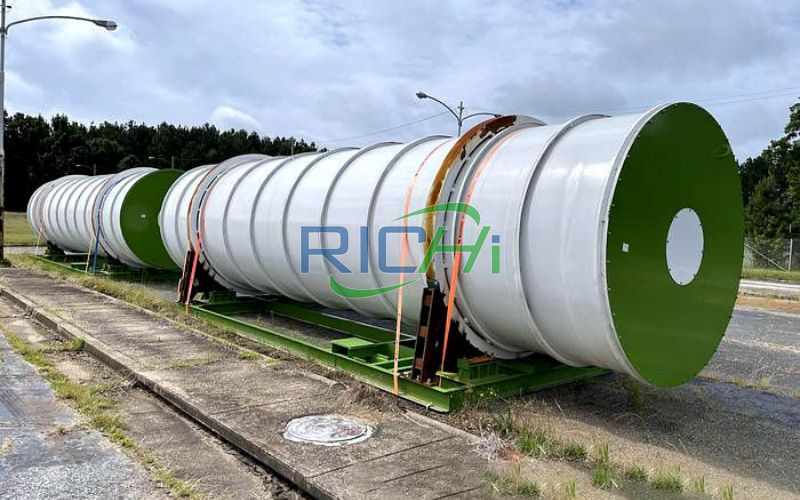

For a southeastern U.S. installation, Qingdao to the Port of Charleston is a reference freight route, followed by inland haulage. Drum sections, shipping dimensions, lifting points and field assembly requirements are confirmed before booking. The installation schedule also accounts for foundations, ductwork and control connections.
For a wood chip dryer machine in the United States, share chip-size data, measured moisture, the boiler's fuel limits and the proposed site layout with RICHI Machinery. RICHI can then define the drying duty, equipment scope and trial criteria around the material the plant actually receives.
