Biomass Pellet Machinery Project With an Annual Output of 30,000 Tons of Rice Husk and Wood Chips

  • Clicks:

The biomass pellet raw material produced by this project is a solid fuel formed by extrusion of rice husks and wood chips. It is easy to store, transport, easy to use, free of any harmful additives, high in combustion efficiency, clean and environmentally friendly, and can be used for both civilian and environmental purposes. Replace coal as fuel for industrial boilers. After the project is completed and put into operation, it will solve the reuse of waste materials such as chaff waste and wood processing waste, increase employment, protect the environment, and promote local economic development. It has good economic and social benefits.

Biomass Pellet Machinery Project With an Annual Output of 30,000 Tons of Rice Husk and Wood Chips
Biomass Pellet Machinery Project With an Annual Output of 30,000 Tons of Rice Husk and Wood Chips

1. Project Overview

The total investment of the project is 2 million yuan, and the construction scale is to produce 30,000 tons of biomass pellet fuel per year. The construction content of the project mainly includes the construction of production workshop, finished product storage yard, raw material storage yard, etc. The main plant is transferred from the original biomass pellet plant. The main construction content is shown in Table 1-1.

Table 1-1 List of project composition

Project category Project content Remarks

Main project
1 production workshop (900m2), 4 production lines (including rice husk as raw material production
3, sawdust raw material production line 1), equipped with a pellet mill, its annual output 30,000 tons of biomass pellet fuel.
The main factory building has been built
Supporting project Office building (100m2). Not completed
Public engineering Water supply The water used in the production process of this project is mainly the staff's domestic water, and the domestic water
comes from the water supply plant in Yingfengqiao Town.
Not completed
Drainage The drainage system is rain and sewage diversion system. Domestic sewage is treated in septic tanks and used for irrigation of surrounding farmland and vegetable fields. Not completed
Power supply The power supply of the plant is supplied from the power grid of Fengfengqiao Town. Not completed

Environmental protection project
Wastewater treatment Grease trap, septic tank. Not completed
Exhaust gas treatment The dust generated in the production process is removed with a bag filter and canteen oil
installed with an oil fume purifier.
Not completed
Noise control Take measures such as vibration reduction, absorption, isolation, and strengthening of greening. Not completed
Solid waste disposal Domestic garbage is handed over to the sanitation department for regular cleanup Not completed

2. Main Raw and Auxiliary Materials

Table 1-2 Main raw and auxiliary materials of the project


Name

Dosage
Material balance
Biomass pellet products Dust emissions Other losses (water evaporation)
Rice Husk 25000 tons/year 22500 tons/year 1.25 tons/year 2498.75 tons/year
Sawdust 10000 tons/year 7500 tons/year 0.5 tons/year 2499.5 tons/year

3. List of Main Equipment of the Project

Table 1-3 List of main production equipment

Name Unit Quantity
Pelletizer Number of units 4
Bag dust collector Number of units 1
Belt conveyor Article 4
Crusher Number of units 1
Dryer Number of units 1
Slicing machine Number of units 1
Forklift Number of units 1
Weighbridge Number of units 1
Transformer Number of units 1

4. Labor Quota and Work System

The project has a labor force of 5 people, 340 working days throughout the year, 16 hours a day (two shifts), and noisy forklifts can not be used after ten o'clock in the evening.

5. Product Plan

After the project is completed, it will produce 30,000 tons of biomass pellet fuel annually.

Biomass Pellet Machinery Project With an Annual Output of 30,000 Tons of Rice Husk and Wood Chips
Biomass Pellet Machinery Project With an Annual Output of 30,000 Tons of Rice Husk and Wood Chips

6. Factory Transportation

The main raw materials of the project are purchased and transported by social vehicles into the raw material storage yard of the factory. The roads in the factory are smooth, people and goods are separated to meet the transportation requirements. The raw materials enter the production line through the conveyor belt, and the products are all sold in the factory area by truck.

7. Public Works

Power supply: The power supply for the project is introduced from the power grid of Yingfengqiao Town in Ziyang District, which can meet the power demand of the project for production and living. The annual electricity consumption is 800,000 Kwh.

Water supply: The water supply for the project comes from the water supply plant in Yingfengqiao Town.

Drainage: The drainage system of the project plant is divided into rain and sewage, and rainwater is collected by gravity and discharged into the surrounding drainage ditches. Waste water is staff office and domestic wastewater. Waste water discharge is calculated based on 80% of water consumption, and the discharge volume is 108.8m3/a. The domestic sewage of the project is treated by grease traps and septic tanks to reach the "Farmland Irrigation Water Quality Standard" (GB5084-92) and then used for irrigation and fertilization of surrounding farmland and vegetable fields.

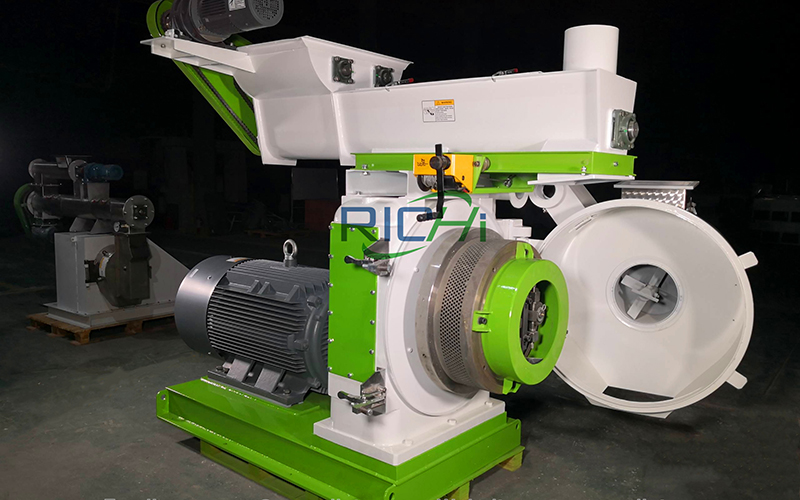

Rice Husk and Wood Pellet Machine
Rice Husk and Wood Pellet Machine

Richi Foreign Biomass Pellet Production Line Project Case

U.S. 10t/h wood pellet production line

Indonesia 1-1.5 t/h Wood Pellet Production Line

Congo 1-2 t/h wood pellet plant Production Line

Mexico 10T/H Wood Sawdust Pellet Production Line

Canada 2-3 t/h Full Automatic Biomass Wood Pellet Line

Netherlands 2T/H Wood Pellet Plant

German 2-3 t/h wood pellet production line

Austria 5Ton/Hour Wood pellet Production Line

Iceland 1 t/h wood pellet plant Production Line

Taiwan 1-2 t/h Wood Biomass Pellet Production Line

The above is the article for you: Biomass Pellet Machinery Project With an Annual Output of 30,000 Tons of Rice Husk and Wood Chips. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: sales@cnrichi.cn
