Floating Fish Feed Extruder Or Fish Feed Pellet Production Line

  • Clicks:

Hi, I need a quote on a floating (for at least 30 minutes) fish feed extruder with following ingredients in capacity 1 ton per hour in 4.5mm diameter pellets. Also need any preconditioning of the feed. We would supply all conveyors, bins, hammer mill, blender etc. If you need to dry, cool and coat, also quote that. Plse send picture and process and references where you have installed this. Feed would consist of the following: rapeseed, soybean, sunflower meal, DDGS(Dryied distillers grains), corn/maize/gluten feed, Meat flour.

Floating Fish Feed
Floating Fish Feed

Our fish feed pellet production line is the complete procedure of feed pellet production with capacity of 150-10000kg/h. This line is designed for making commercial pellets from corn, maize, grass, grains, protein, molasses and so on, and final pellets with different shapes, unique flavor, rich nutrients and fine texture, are widely used as aquatic and pet feed like goldfish, tropical fish, catfish, shrimps, dog, cat and etc.. Super automation control, high production efficiency, our fish feed production line is the best choice for medium and big sized feed mills and breeding farms. Complete pellet production lines with different capacities are also available to meet customers’ specific demands.

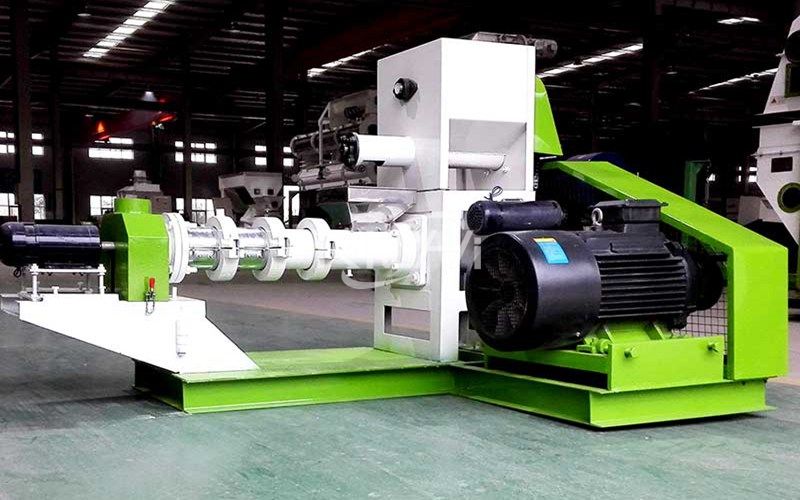

The output of the fish feed extruder is generally 0.03-4t/h, and the effect of the extruder is very good. When the raw material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which can make the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mold. After that a cutting device will cut the formed pellets into different length as required.

Floating Fish Feed Extruder
Floating Fish Feed Extruder

Floating Fish Feed Extruder Parameter

DGP Dry Type Fish Feed Extruder Parameter
Model Capacity(t/h) Main motor power(kw) Feeder power(kw) Screw diameter(mm) Cutter power(kw)
DGP40-Cs 0.03-0.04 3.0*2 0.4 Φ40 0.4
DGP40-C 0.03-0.04 5.5 0.4 Φ40 0.4
DGP50-C 0.06-0.08 11 0.4 Φ50 0.4
DGP60-C 0.12-0.15 15 0.4 φ60 0.4
DGP70-B 0.18-0.2 18.5 0.4 φ70 0.4
DGP80-B 0.2-0.25 22 0.4 φ80 0.6
DGP90-B 0.30-0.35 37 0.6 φ90 0.8
DGP120-B 0.5-0.6 55 1.1 φ120 2.2
DGP135-B 0.7-0.8 75 1.1 φ133 2.2
DGP160-B 1-1.2 90 1.5 φ155 3
DGP200-B 1.8-2.0 132 1.5 φ195 3.0-4.0

DSP Wet Type Fish Feed Extruder Parameter
Model Capacity(t/h) Main motor power(kw) Feeder power(kw) Screw diameter(mm) Cutter power(kw) Conditioner power(kw)
DSP60-B 0.18-0.2 15 0.4 Φ60 0.4 0.75
DSP70-B 0.25-0.30 18.5 0.6 Φ70 0.6 0.75
DSP80-B 0.35-0.40 22 1.1 Φ80 0.8 1.1-1.5
DSP90-B 0.50-0.60 37 1.1 Φ90 1.1 2.2
DSP120-B 0.70-0.80 55 1.1 Φ120 1.5 2.2-3.0
DSP135-B 1.0-1.2 75 1.5 Φ135 2.2 3.0-4.0
DSP160-B 1.8-2.0 90 2.2 Φ155 2.2-3.0 4.0-5.5
DSP200-B 3.0-4.0 132 2.2 Φ195 3.0-4.0 5.5
DSP200-B 3.0-4.0 132 2.2 Φ195 3.0-4.0 5.5

Advantages of Fish Pellet Feed

● Storage: can be kept for two to three months when stored in a covered cool dry place.

● Hygiene: expansion process can eliminate most bacteria. Low moisture content (about 10%) can prevent bacterial growth.

● Nutrition: can be added with animal or plant protein, fish oil or other fats, vitamin complex and minerals required by specific fish species. It is highly nutritious and can effectively improve the health of fish stock.

● Environmental impacts: using pellet feed of appropriate size and density can lower the loss rate and significantly mitigate the environmental pollution caused by the feed residues.

● Notice: Pellet feed of different sizes and densities can be made to accommodate the needs of species in various growth stages and with different babits. By using pellet feed of the appropriate size and density, loss rate and environmental pollution caused by the feed residue can be significantly reduced.
