Difference between biomass pellet machine and feed pellet machine

  • Clicks:

Biomass Pellet Machine

1.Introduction

Biomass pellet machine,also called wood pellet machine,wood pellet mill.According to our experience in industries of biomass, Richi have designed MZLH pellet machine. Biomass pellet mill can be used to process various kinds of material like wood chips, straw, rice husk,sawdust, paddy straw, sun flower stalk, hulls, forestry wastes, chemical waste and many other wastes or solid powder materials.

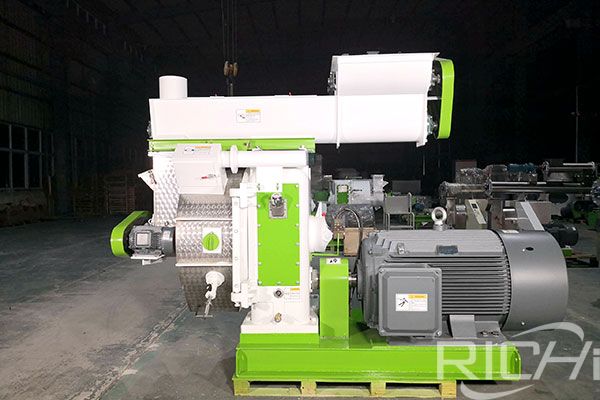

biomass pellet machine

2.Feature

① Achieve adjustale speedle speedle speedble speed by replacing the pulley .

② The support bar and main shaft are forged together,keep uniform gap between roller and ring die,ensure high efficiency. Output increases 10-12%,reduce maintenance rate.

③ Add oil when starting up,user can set the adding oil volume and period according to the case,avoid wrong operation hurting the machine.

④ Stainless steel gate,long durability.

⑤ Pneumatic fast discharging gate,avoid burning the motor or damage the equipment.

⑥Forged bear,long durability.

⑦VIP configuration:SKF bear,siemens motor,schneider electric,touching screen cabinet.

3.Parameters

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 1-2 22 0.75 1.5 250 2~12
SZLH320 3-4 37 1.5 2.2 320 2~12
SZLH350 5-7 55 1.5 3 350 2~12
SZLH420 8-12 110 1.5 7.5 420 2~12
SZLH508 10-18 160 2.2 11 508 2~12
SZLH558 15-25 180/200 2.2 11 558 2~12
SZLH558D 14-22 160/180/200 1.5 7.5 558 2~18
SZLH678 20-30 220/250 2.2 11 678 2~12
SZLH678D 15-25 200/220/250 2.2 11 673 2~18
SZLH768 25-40 280/315 2.2 11 768 2~12
SLZH858 25-42 280/315 2.2 15 858 2~18

Feed Pellet Mill

1.Introduction

Feed pellet mill,also called feed pellet machine, pelleting machine, or pelletizer machine, is a novel granulator produced by Richi patent technology. Feed pellet mill is equipped with high quality ring die, press roller and advanced technology. The transmission system adopts dual-motor and V-belt drive with small area, uniform force, simple structure, easy operation and maintenance. Feed pellet mill can also convert motor and ring die, adapted to different production capacities and needs of different specification, to achieve ideal technical and economic benefits.

Feed pellet mill is mainly composed of three parts--feeder, conditioner and pellet mill host, which is consisted of body, chassis, hollow spindle assembly, ring die, roller assembly, cutter components, security devices, the main motor drive system, etc.

Currently it has been formed pelletizing series including livestock and poultry feed, ruminant feed and aquatic feed.

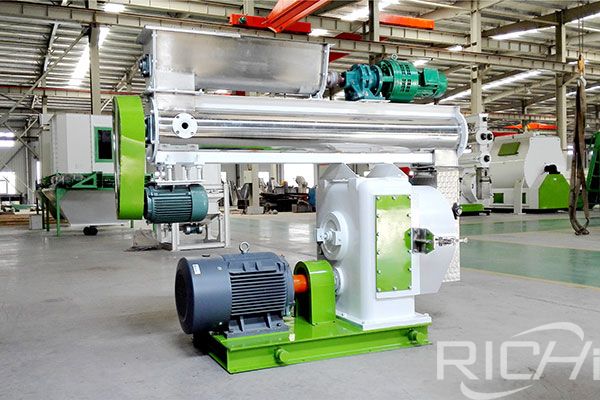

Difference between biomass pellet machine and feed pellet machine

2.Feature

①Achieve adjustable speed by replacing the pulley .

② Double motors with triangle belt driving system, smooth rotation, low noise and no need lubrication.

③ Compared with gear machine, the main shaft bearing is more durable, no oil leakage phenomenon.

④ The starting current is only half of gear machine because of double motors, and little influence on power grid.

⑤ The support bar and main shaft in pelletizing bin are forged together. Roller and main shaft are processed together to ensure the parallelism between the eccentric shaft of roller and axis of ring die, keep uniform gap between roller and ring die.

⑥Feed pellet machine Can be used for livestock and poultry feed, ruminant feed and aquatic feed.

3.Parameters

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Capacity 300-400kg/h 500-700kg/h 1.0-1.2 t/h 2.0-2.5 t/h 2.5-4 t/h 3-4.5 t/h
Power 37kw 55kw 90kw 110/132kw 250/280kw 280kw
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm

The above is the article for you: Difference between biomass pellet machine and feed pellet machine. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: sales@cnrichi.cn
