1 T/H Tofu Cat Litter Production Line In Thailand

• Customer consultation content: "I'm interested this one, raw material is Soybean, Is it ok?"
• Annual output of the project: 2,000 tons of tofu cat litter per year
• Project nature: newly built
• Cat litter production line price: 40,000-50,000 USD.
• Labor quota and work system: The labor quota of this project is 5 people, and the project adopts a shift system, with 8 hours per shift and 250 working days a year.
• Construction content and scale: This project uses the customer's existing workshop, covering an area of 1,100 square meters and a building area of 1,100 square meters. Purchase and install 15 sets (sets) of production equipment such as mixer, cat litter pellet making machine, pellet cooler, and packaging machine. After the completion of the project, the annual output of tofu and cat litter will be 2,000 tons.

Raw and auxiliary materials of 1 t/h tofu cat litter production line in Thailand

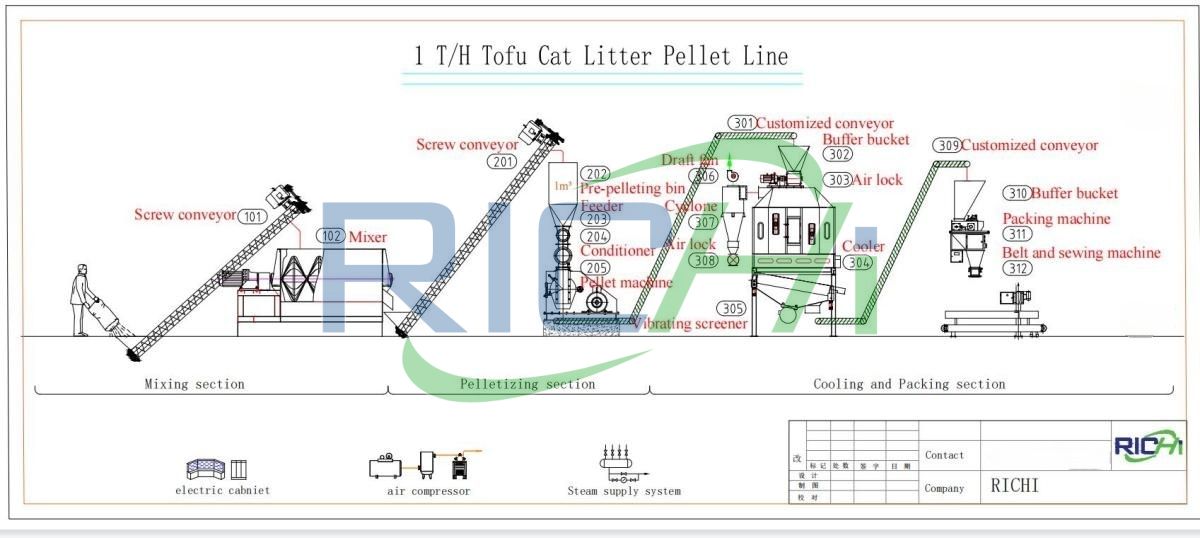

Process design of 1 t/h tofu cat litter production line in Thailand

• According to the requirements of the formula, the raw and auxiliary materials are batched in the closed batching room according to the proportion, and then transported by the conveyor to the mixer for mixing.

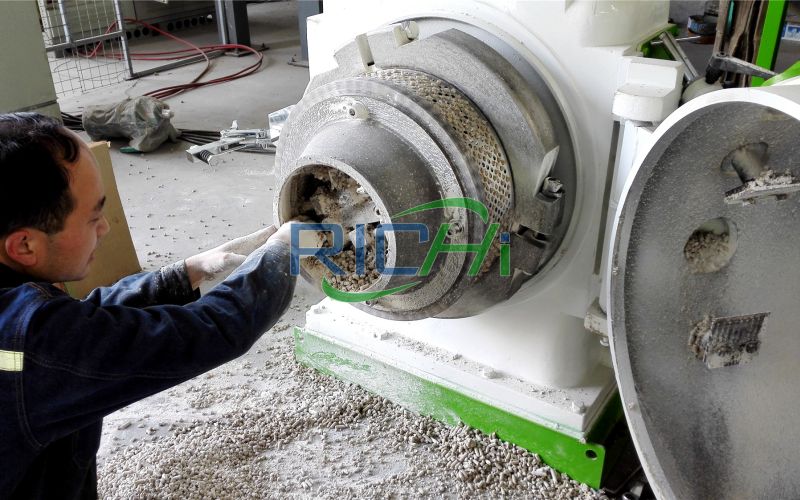

• A small amount of fresh water needs to be added during the mixing process, and the mixed material is lifted to the cat litter pellet machine for granulation.
• The cat litter pelleting process generates heat, and the granulated cat litter pellets are cooled by the cooling machine.
• After cooling, the cat litter pellets screened by a flat rotary sieve, and then enters a closed silo, and is finally packaged and put into storage.
• According to customer needs, some products are mixed according to color and packed into storage. Adjacent processes are conveyed by closed conveyor belts.

Main production equipment for 1 t/h tofu cat litter production line in Thailand

Public works

water supply

The water used in this 1 t/h tofu cat litter production line in Thailand project is provided by the nearby pipeline network, and the water quality and quantity can meet the water demand of this project.

The water used in the project is mainly production water and domestic water, and the production water is mainly mixing process water and equipment cooling water. The fresh water consumption of the project is 2.23m³/d.

High Output And Low Energ Consumption

The rain and sewage diversion system is adopted for the drainage of the project, and the rainwater is collected and discharged directly outside the plant.

All the stirring water of the project enters the product, and no waste water is produced; the cooling water of the equipment is recycled and not discharged; the waste water of the project is mainly domestic sewage, and the production volume is calculated according to 80% of the water consumption, so the production volume of domestic sewage is 0.38m3/d (114m3/ a) .

The amount of production is small and the water quality is simple, all of which are used for dust suppression. The factory area is equipped with anti-seepage dry toilets, which are regularly cleaned and used as agricultural fertilizers, and the waste water is not discharged outside.

Power supply

The power consumption of this 1 t/h tofu cat litter production line in Thailand project is provided by the nearby power grid, and the power and voltage can meet the needs of the project.

Heating and cooling

The production heat of this project is supplied by electricity, office heating in winter uses electric heaters or air conditioners, and summer cooling uses air conditioners.

Environmental Engineering

• Waste water: All the stirring water of the 1 t/h tofu cat litter production line in Thailand project enters the product, and no waste water is generated; the cooling water of the equipment is recycled and not discharged.

  The waste water from the daily washing of the employees is directly used for splashing and dust suppression in the factory area, and the factory area is equipped with anti-seepage dry toilets, which are regularly cleaned and used as agricultural fertilizers, the waste water is not discharged outside.
• Exhaust gas: Dust in the project’s batching, mixing, granulating, drying, screening, and lifting processes is collected by the gas collection device and then processed by the pulse dust collector.

  The dust in the cooling process is collected by the gas collection device and then processed by cyclone dust removal. They are discharged together through a 15-meter-high exhaust pipe.
• Noise: After adopting measures such as low-noise equipment, foundation vibration reduction, plant sound insulation, and reasonable layout, it will be attenuated by distance.
• Solid waste: Waste materials and dust collected by dust collectors are collected and reused in production; waste packaging bags are collected and sold outside; domestic waste collected by employees is collected and sent to designated places by the sanitation department.

Reasonable location

The location of the 1 t/h tofu cat litter production line in Thailand project has good basic conditions and is suitable for construction; corresponding prevention and control measures have been taken for the pollutants during the operation period of the project to ensure the stable discharge of pollutants.

There are no nature reserves, scenic spots, or centralized drinking water near the site environmentally sensitive areas such as sources, after the project is completed, environmental pollution disputes are less likely to occur.

The layout of the factory area is reasonable and compact, with clear divisions, and the layout of the factory area is designed in accordance with the process flow to facilitate production.

RICHI Tofu Cat litter Production Technology

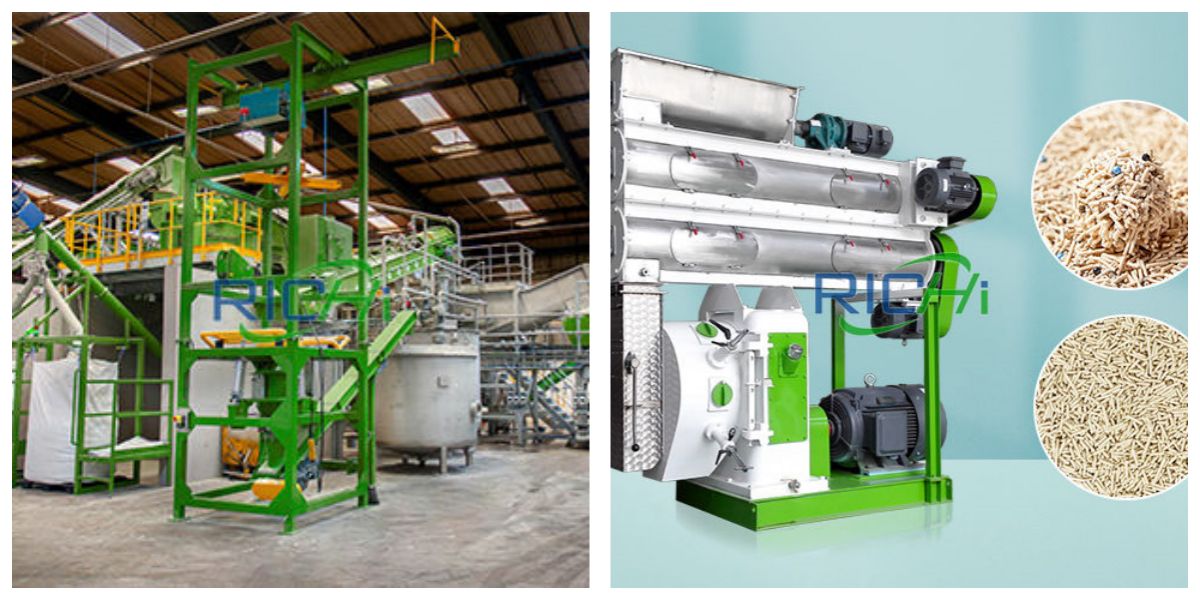

A complete cat litter pellet plant consists of cleaning machine, hammer mill, mixing machine, ring die cat litter pellet machine, cooling machine, drying machine, screening machine, packaging machine and and other auxiliary equipment.

Cat litter production line is used to produce cat litter, which can bury their feces and urine in cat toilet or litter box. Then it can help keep the room clean and fresh air. And our production line mainly produces tofu cat litter. Usually the 2-5 mm diameter of cat litter are the most popular because of the strong water absorption.

• Based on dozens of successful tofu cat litter pellet line project, RICHI Machinery can provide you the best ideal and most suitable project plan of cat litter pellet plants.
• We can customize the cat litter processing line according to your requirements on pellet size, capacity per hour and different animals（cat, dog, rabbit, etc.）.
• Experienced engineers for overseas installation and training.

If you want to start a tofu cat litter production line in Thailand or any other country, feed free to contact Richi Machinery!
