1 T/H Tofu Cat Litter Production Line in Saudi Arabia

Cat litter is an object used to bury cat urine and feces. According to different raw materials and production processes, it can be divided into tofu cat litter, bentonite cat litter, crystal cat litter, etc.

Among them, although bentonite cat litter and crystal cat litter are good at absorbing cat excrement and odor, they also have a great impact on the environment. In view of the impact of clay (bentonite cat litter) and silica (crystal cat litter) on the environment and d ue to potential health effects, cat owners began to look for safer and more environmentally friendly cat litter.

Therefore, tofu cat litter came into being. It currently accounts for 70% of the entire cat litter industry. The raw materials of tofu cat litter are made and processed from environmentally friendly materials. , mainly composed of bean dregs with strong water absorption and corn starch that dissolves quickly, can even reach the level of food, and is very popular among cat lovers.

In order to seize market opportunities, the client of this 1 t/h cat litter production line in Saudi Arabia project invested US$100,000 and used an idle factory building covering an area of 1,550 m2 to purchase production equipment such as mixers, cat litter making machines, cat litter dryers, and packaging machines from RICHI Machinery to implement the "annual output of 3,000 tons" Cat Litter Project”.

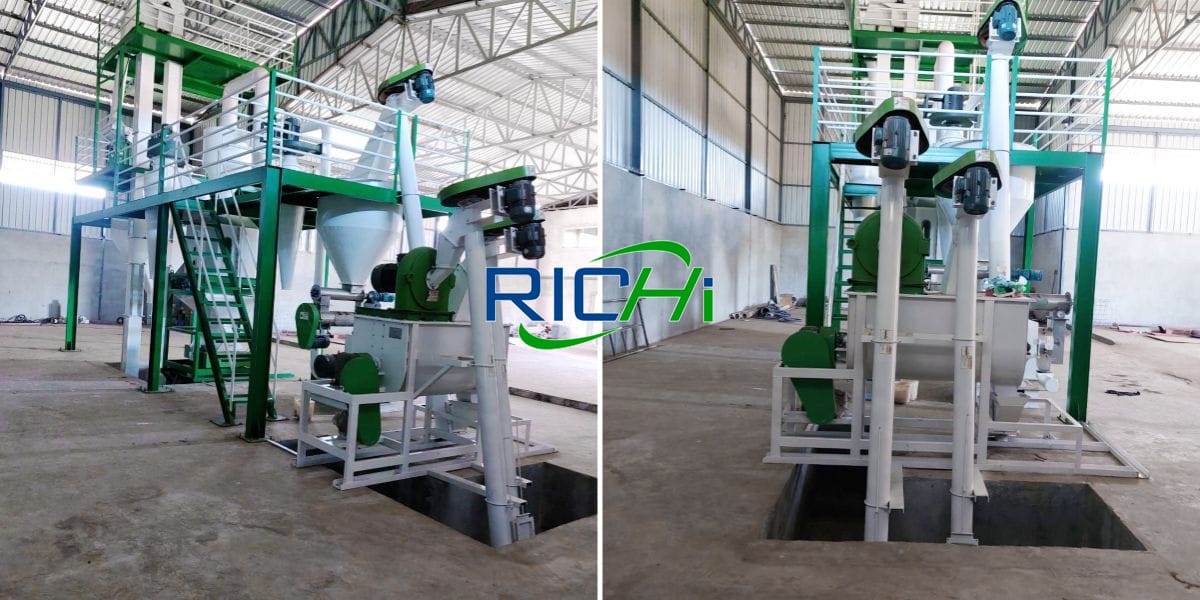

This 1 t/h cat litter production line in Saudi Arabia project uses a fully automatic cat litter production line. Compared with manual ingredients, this production line achieves precise delivery of raw materials.

The tofu cat litter produced can absorb pet urine, feces and other wastes and prevent odor spillage. It is the best choice for most A common must-have for families with pet cats. In response to different requirements, the client company carefully considers the particle size, length, softness and hardness, etc., to provide their customers with personalized services.

• Number of employees: 10
• Work system: 300 working days a year, single-shift daytime production, 8 hours per shift (8:00~11:30, 12:30~17:00), no food or accommodation provided in the factory.

The basic information of this 1 t/h cat litter production line in Saudi Arabia project is shown in the table below:

This 1 t/h cat litter production line in Saudi Arabia project is mainly engaged in the production of tofu cat litter. The specific product plans are shown in the table below:

The main production equipment configuration of this 1 t/h cat litter production line in Saudi Arabia project is shown in the table below:

The main raw and auxiliary materials and energy consumption of this 1 t/h cat litter production line in Saudi Arabia project are shown in the table below:

• Pea fiber: Pea fiber is made by separating the protein, starch and fiber from peas and extracting the fiber. The separated fiber has strong water absorption, and the high purity pea fiber does not contain protein.
• Corn starch: Corn starch is also called corn starch. The common name is Liugufen. It is a white and slightly yellowish powder, which is produced by soaking corn and then crushing, sieving, settling, drying and grinding. Ordinary products contain small amounts of fat, protein, etc. It has strong hygroscopicity, up to 30% or more.
• Guar gum: Guar gum is a highly purified natural polysaccharide extracted from guar beans. Due to its unique molecular structure and naturalness, guar gum has quickly become a new environmentally friendly additive with superior performance. Guar gum is a macromolecular natural hydrophilic colloid, a natural galactomannan, one of the quality improvers, and a natural thickener.
• Oil powder: Oil powder is the abbreviation of emulsified balanced oil powder. It is a feed additive. Its main ingredients are: emulsified fat powder, puffed corn meal, modified starch, protein, VE. It adopts triglyceride enzyme digestion, exchange and recombination. And emulsification technology, livestock and poultry are easier to absorb, and are more effective than other conventional oils and fat powders.

Brief description of process flow:

The purchased pea fiber, corn starch, etc. are weighed and proportioned according to the product ratio, and are manually fed into the sealed warehouse. The materials are sealed and conveyed to the sealed mixer through the stainless steel auger. The mixer uses the automatic water supply device to fill the water and mix it evenly. Long conveyed to the pellet machine.

The mixed material enters the cat litter pellet machine, and the pellets are pressed through a ring mold (normal temperature) and initially formed. The formed pellets are transported to a natural gas drying box through a closed conveyor, and the formed particles are dried at about 65°C (heated by natural gas).

After the cat litter pellets are dried and cooled, and the finished cat litter passes the inspection, it enters the automatic packaging machine, is vacuum packed and put into storage for sale.

The waste gas generated during the production process of the 1 t/h cat litter production line in Saudi Arabia project is mainly dust (feeding, packaging dust), natural gas combustion waste gas and drying waste gas.

Most of the raw materials used in the production process of the project are powders. Generally, dust is easily generated during the feeding, mixing, transportation, packaging and other processes.

However, the mixing process of the project is filled with water and is fully sealed. The transportation uses a sealed dragon, which basically does not generate dust. Therefore, this project Dust is mainly generated during the feeding, unloading and packaging processes.

During the feeding process of the 1 t/h cat litter production line in Saudi Arabia project, the suction fan on the side of the hopper is turned on throughout the entire process to form a slight negative pressure in the hopper, which can effectively prevent the material dust from escaping;

During the unloading and packaging process, the product is already granular, but there will still be some debris to generate dust. Limited, the amount of dust generated in the feeding and packaging section is calculated based on 2kg/t of raw materials. The actual amount of raw materials added to the project is 2954.05t/a, so the amount of dust generated is 5.908t/a (2.462kg/h).

[Pollution control measures]

The dust generated by the 1 t/h cat litter production line in Saudi Arabia project is collected and treated with a bag dust collector and then discharged through a 15m high exhaust pipe (1#) at high altitude.

The drying heat source of the project uses natural gas as energy, which is a clean energy. The consumption of natural gas is about 5000m3/a. Every 10,000m3 of natural gas burned produces 107753m3 of pollutant industrial waste gas, SO20.02Skg (S=200), and NOx15.87kg. The natural gas combustion exhaust gas is collected and discharged through a 15m high exhaust pipe (2#) at high altitude.

The raw materials of the project will contain a certain amount of moisture due to moisture. Fresh water also needs to be added during the material mixing process. The annual fresh water requirement is about 100t/a.

However, the project products have certain requirements for moisture content, so the granulated products need to be processed In the drying process, the drying temperature is set at about 65°C. The moisture contained in each material will evaporate to form water vapor. The hot steam rises to the reserved pipe of the dryer and is discharged at high altitude through the 15m high exhaust tube (2#).

[Pollution control measures]

Enterprises are required to strengthen the passage of machinery in the workshop and ensure air circulation in the workshop.

The noise source of the 1 t/h cat litter production line in Saudi Arabia project is the noise generated by the operation of various types of equipment.

[Pollution prevention and control measures]

• Enterprises are required to try their best to choose equipment with good performance and low noise on the premise of meeting production needs;
• Reasonably arrange equipment in the workshop, provide separate compartments for high-noise equipment such as air compressors, set up shock absorbers, adopt soft connections, etc., strengthen the foundation, and strengthen inspection and maintenance of equipment at the same time;
• Strengthen daily equipment maintenance during the operation period to avoid the generation of abnormal production noise;
• Strengthen worker’ production operation management and reduce or reduce the generation of man-made noise.

The by-products generated during the 1 t/h cat litter production line in Saudi Arabia project production process are mainly dust collection, damaged bags, waste packaging materials and employee domestic waste, etc.

• (1) Dust collection
  The dust generated during the production process of the project is collected and processed by bag dust removal device. According to the above analysis, tt can be seen that the dust collection volume of the project is 5.211t/a.
• (2) Damaged cloth bag
  The dust exhaust gas of the project is treated by bag dust removal. The dust bag will be broken during use. The amount of damage is estimated to be about 0.5t/a.
• (3) Waste packaging materials
  The raw and auxiliary materials used in the production process of the project are all packed in bags. According to the project raw material consumption and packaging specifications, the estimated output of woven bags is about 118,203 pieces. Converting based on 1kg/10 pieces, the estimated amount of waste packaging materials generated by the project is about 11.82 t/a.
• (4) Domestic garbage
  The 1 t/h cat litter production line in Saudi Arabia project has a labor capacity of 10 people, and the domestic waste production volume is calculated as 0.5kg/person·d, then the domestic waste production volume is 1.5t/a, which is entrusted to the environmental sanitation department for transportation and disposal.
