900 KG/H Wood Shavings Dryer in France

Wood shavings dryer in France for pellet and briquette feed. See the 900 kg/h dried output target, 435 kg/h evaporation duty and dry shavings bypass.

900 KG/H Wood Shavings Dryer in France

OVERVIEW

A French producer of wood pellets and briquettes purchased a standalone rotary dryer to replace its ageing drying unit. The wood shavings dryer in France prepares pine and spruce residues from nearby mills. Its job is to keep both fuel products supplied as incoming moisture varies.

The customer's wood pellet production line already included a crusher, a wood pellet mill and a cooler. The purchase covered one drying unit. Dry planings also have a market as screened bedding, so it makes sense to identify clean dry lots before assigning them to a fuel run.

  • Name:

    Softwood shavings dryer

  • Country:

    France

  • Date:

    2025

  • Capacity:

    900 kg/h

  • Model:

    φ1.2*12

  • Diameter:

    1.2 meters

  • Raw materials:

    Pine and spruce shavings

  • Design moisture:

    40% inlet to 11% dried discharge

Keep dry planings out of the wet feed bin

French softwood supply chains include the fir and spruce mills of Grand Est. The producer in this case uses pine and spruce shavings. The condition of a lot depends on where it was collected. Material from machining green timber or stored in the rain can be much wetter than shavings from planing kiln-dried boards.

Sample each delivery across the load. Use 35–50% moisture as the sizing range for the wet stream, rather than as a specification for all shavings. Keep clean, dry planings under cover so they can bypass the drum when their moisture and particle size suit the receiving press or an agreed blend.

A rotary dryer for softwood shavings in France has to handle the volume of the feed as well as its weight. A curled flake occupies more space than a fine particle, and long shavings can hang up at an inlet. Screen out foreign material and shorten troublesome strips before the drum if the feed trial calls for it.

Use clean, untreated residues for the fuel stream. Keep painted or coated scraps and engineered board offcuts separate. Check the existing crusher with a sample of dried shavings; fluffy material can feed differently from sawdust even when both streams weigh the same.

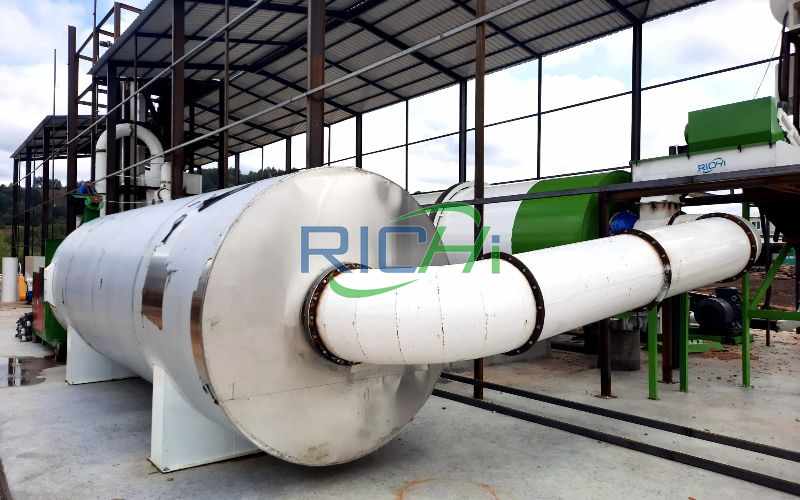

Selection pointDryer configuration
Selected drumφ1.2 × 12 m
Drum dimensions1.2 m diameter; 12 m length
ConstructionSingle-shell rotary drum
Drying gas temperature references400–500 °C inlet; 70–80 °C outlet
Adjustable rotation3–12 rpm reference range
Dried shavings moisture10–12%, wet basis; confirm against the press

One drum serves the wet stream. The shell dimensions describe the selected unit; the available heat, airflow and behaviour of the shavings determine the sustained output. Check the floor and access for the drive and drum supports as well as the space for the shell itself.

The temperature references are for drying gas. Measure the shavings separately at discharge. Allowable gas settings and the response to an interruption in feed or airflow are established with the supplied heat source and protection system during commissioning.

Size the dryer from the water it must remove

The sizing example for this wood shavings dryer in France takes 1,335 kg/h of wet shavings at 40% moisture. They contain 801 kg/h of wood solids and 534 kg/h of water. At 11% outlet moisture, the same solids give 900 kg/h of dried material with 99 kg/h of water.

The drum therefore needs to remove 435 kg/h of water at that point. The table keeps dried output at 900 kg/h to show how the duty changes with the load. All moisture figures are on a wet basis. The example assumes steady operation with no loss of dry solids.

Incoming moistureWet inputWater to remove
35%About 1,232 kg/hAbout 332 kg/h
40%1,335 kg/h435 kg/h
50%1,602 kg/h702 kg/h

When discussing wood shavings drying capacity in France, specify whether the dryer must hold output on the wettest load. At 50% moisture, an evaporation limit of 435 kg/h gives about 993 kg/h of wet intake and 558 kg/h of dried shavings at 11%. The drying trial establishes the rate the plant can sustain.

The dry route changes the amount available to the presses. Add 300 kg/h of clean bypass material at 9% moisture to the 900 kg/h dried stream at 11%. The blend is 1,200 kg/h at an average moisture of 10.5%. Verify representative samples after blending so damp pockets are caught before pressing.

If the bypass lot is unavailable, producing the full 1,200 kg/h from 40% wet shavings at an outlet moisture of 11% would raise evaporation to 580 kg/h. This changes the duty on the heat source and exhaust. Check the supply of clean dry stock before quoting a combined press feed rate.

If the wet lot rises to 50% and the same dry stock is available, the combined feed falls to about 858 kg/h at the stated evaporation limit. The plant can plan a shorter pressing campaign or release more suitable dry stock. Use the measured rates to allocate material to the pellet and briquette orders.

At the 40% design point, six productive hours would give 5.4 tonnes of dried shavings from the drum. The bypass adds 1.8 tonnes, giving 7.2 tonnes of prepared material before pressing. Account for heat-up and stops separately when working out how much can be prepared in a shift.

At 1,335 kg/h, a wet lot with a loose bulk density of 120 kg/m³ would require about 11.1 m³/h of feed volume before allowing for feeder fill. Measure density for each material type. Light shavings can reach a feeder's volume limit well below its weight rating on denser material.

Check the discharge and the collector together during the trial. Light pieces can travel with the gas, particularly as they dry. Weigh collected material separately and decide whether its size and cleanliness suit a return to the fuel stream before counting it as usable output.

At steady load, record wet and dried weights, both moisture readings and fuel and electricity use over the same interval. Use heat input per tonne of water removed to compare the dryer across lots. Use energy per tonne of accepted press feed when assessing the cost of the product.

Use each dry fraction where it fits

For wood pellet feedstock drying in France, confirm the moisture needed at the mill with the intended die and grind. Test the cooled pellets separately. For buyers specifying ENplus wood pellets, the scheme sets a maximum finished moisture of 10% as received, alongside other fuel quality requirements.

Wood shavings going to pellets may need further grinding before entering the ring die. Use a sieve sample of the prepared feed to set the crusher and screen. Check the pellet sample after cooling for size, durability and fines generated during transfers to packing.

Briquette feed preparation in France can draw from the same dry stock. Check the briquette press's accepted particle range and moisture before allocating a batch. A long shaving that feeds poorly at a pellet die may still need size reduction for briquetting, depending on the compression and feed arrangement.

Hold dry material in covered storage and measure moisture again at each press inlet. Allocate the shared stream by weight to each order. The 1,200 kg/h example is the total prepared material available to the two routes; actual finished output follows the press settings, cooling and rejects on each route.

Wood shavings for animal bedding in France are another outlet for suitable clean, untreated planings. Keep that stock separate at receiving. Screen and remove dust to the bedding buyer's specification, with separate handling where cleanliness requires it. This fuel dryer does not establish a bedding grade.

A trial on a prepared agricultural residue such as wheat straw belongs to a separate fuel campaign. Check its fibre size, airflow, fire risk and ash characteristics first. Use the trial to establish a new drying duty and an appropriate combustion market for the non-wood fuel.

Fit the replacement around the existing plant

A rotary drum dryer retrofit in France starts with a drawing of the old inlet, discharge and hot gas connections. Check the feed height and whether the ducts and separator can be reused at the new duty. The exhaust fan must deliver the required flow against the resistance of the connected system.

Where the dry material is sent to a sawdust pellet mill, agree on the grind before fixing the discharge route. Size the transfer out of the drum for 900 kg/h in the design example and check the shared feed equipment at the combined rate when the bypass is running.

Review wood dust and fire hazards at the drum, ducts, collector and transfers together. Check extraction at the points where dry fines escape. The dryer controls must be compatible with the plant's response to abnormal temperature, loss of airflow or an interruption in feed.

Use France's 50 Hz network frequency as a design input and confirm voltage and available load on site. Include the drum drive, feeder, exhaust fan and retained auxiliaries in the electrical schedule. Specify the heater separately against evaporation, material heating and system losses.

To check the integration with an existing biomass pellet machine, run the prepared blend at the intended press feed rate. Take samples before the press and after cooling. This isolates a drying or transfer problem from a die, cooler or packing constraint.

For shipment planning from Qingdao, Le Havre is a French gateway to assess for onward delivery to the mill. Check the packed length and heaviest lift before booking freight. Allow room for unloading and for removing the drive and supports during future maintenance.

A complete biomass pellet production line has a different supply scope. For this replacement, price the drum package, necessary changes to the gas or transfer circuits, transport and installation separately so the buyer can compare the installed cost.

For a wood shavings dryer in France, send RICHI Machinery your wettest and driest samples, their hourly availability and the moisture needed by each press. Add the heater, fan and existing layout details so we can quote the drying duty and the interfaces that need work.
