400 Tons/day Wood Rice Husk Straw and Other Plant Fiber Biomass Pellet Production Line Project
- Date: 2021-01-21 08:40:11
- From: www.pellet-richi.com
1. 400 Tons/day Wood Rice Husk Straw Biomass Pellet Production Line Project Overview
Biomass pellet fuel production uses plant fibers as raw materials, including wood and bamboo product processing scraps, rice processing crude shells, tree residues, firewood, straw, cotton stalks, hemp stalks and other combustible biomass. The basic processing technology is: crushing, drying, and extrusion molding. Biomass pellet fuel meets the fuel requirements of industrial production by changing the combustion properties of biomass such as density, strength, and moisture content.

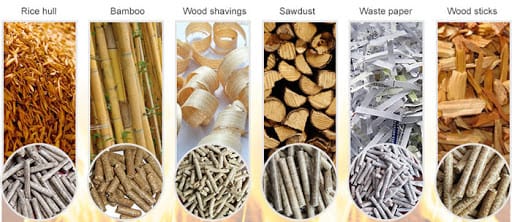

Biomass raw materials
2. 400 Tons/day Wood Rice Husk Straw Biomass Pellet Production Line Project Content
The main engineering of this project is the construction of a biomass pellet production line. Auxiliary projects include the construction of production workshops, raw material storage sheds, finished product warehouses, weighbridge rooms, power supply and distribution systems, water supply pipe networks, office spaces and canteens that are compatible with the main project. The main engineering content of the project is shown in Table 1-1, and the construction area and structure of the main civil works are shown in Table 1-2.
Table 1-1 List of main project contents
|Project category||Project content|
Building a biomass pellet fuel production line with a production scale of 400 tons/day (120,000 tons/year)
Production workshop, raw material shed, finished product warehouse, weighbridge room, power supply and distribution system, water supply network, office space, canteen
|Water supply||The source of water for employees' domestic use is the Zhoujiatan Village Water Plant. The water supply demand is about 10m3/d. The fire water source is
in the southwest pond with an area of about 10 mu.
|Drainage||Drainage is separated from rain and sewage. There is no production waste water. Domestic sewage is about 4.8m3/d, which is treated in a septic tank and then discharged into the southwest pond to feed fish.|
|Power supply||The power supply is introduced by the 10KV overhead dedicated line of the Huishan Port Power Supply Station, and one transformer each of 1600KVA and 315KVA will be added according to electricity demand.|
Environmental protection project
|Wastewater treatment||Septic tanks, grease traps and other domestic sewage treatment facilities|
|Exhaust gas treatment||Installation of dust removal device of pellet production line, water spraying and dust removal measures|
|Noise control||Taking measures such as vibration reduction and sound insulation treatment|
|Solid waste treatment and disposal||Comprehensive utilization of drying kiln dust, regular removal of domestic waste, sanitary landfill|

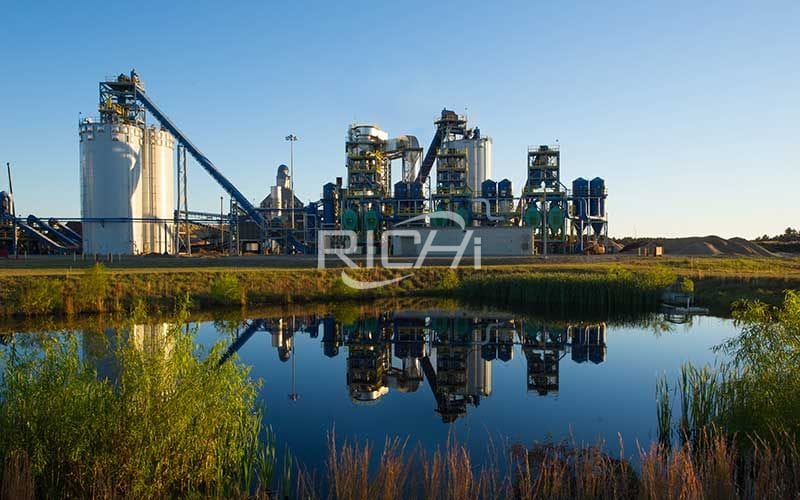

Biomass Pellet Plant Projects
Table 1-2 List of main buildings
|Serial number||Building name||Building area m2||Occupied area m2||Number of layers|
|3||Finished product warehouse||2500||2500||1|
|4||Raw material warehouse||2500||2500||1|
3. Production Scale of 400 Tons/day Wood Rice Husk Straw Biomass Pellet Production Line Project
Table 1-3 Project product plan and production scale
|Products||Fuel pellets (heat value 3900~4800 kcal/kg)|
|Processing capacity||Processing days||Annual output|
|400 tons/day||300||120,000 tons/year|
4. Consumption of Raw and Auxiliary Materials of Wood Rice Husk Straw Biomass Pellet Line Project
The main raw materials for the production of biomass pellet fuel are the waste bamboo chips after the processing of bamboo products, the leftover materials after the processing of woodware, branches, straws, etc. Calculate the amount of raw materials based on the current product output as follows.
Table 1-4 Raw (fuel) auxiliary materials and annual consumption
|Serial number||Name||Unit||Annual consumption||Source of raw materials and others|
|1||Bamboo chips||ton||100000||Bamboo product processing enterprises|
|2||Wood and branches||ton||30000||Wood processing and agricultural and forestry waste|
|3||Straw||ton||50000||Crop straw collected from farmland|
|4||Packaging bag||ten thousand||240||Divide the pellets into 50kg/bag|
5. Material Balance Sheet of 400 Tons/day Wood Rice Husk Straw Biomass Pellet Production Line Project
Part of the raw material consumed in the production of biomass fuel pellets is used for combustion in the drying kiln as fuel, and the other part is the raw material that is pulverized, dried, and extruded into biofuel pellets.
Table 1-5 Material balance sheet for biomass fuel pellet production
|Injection of raw and auxiliary materials||Products and other output|
|Serial number||Raw and auxiliary materials
(30% moisture content)
|Amount of input
|Serial number||Products and others||Output (t/a)|
|1||Bamboo shavings||100000||1||Biomass particles (water content <5%)||120000|
Wood and branches
|Note: For every ton of pellets produced, 0.10 ton of bamboo shavings branches or straws are burned (used in the drying kiln).||4||NOX||12.2|
|5||Smoke and dust||1500|
|6||CO2, steam and others||57270.4|
|7||Dust (except smoke and dust)||7.2|
|8||Fume volume||150 million mark m3|
6. Main Production Equipment of Wood Rice Husk Straw Biomass Pellet Production Line Project
Table 1-6 List of main production and auxiliary equipment
|Serial number||Device name||Model||Unit||Quantity|
|1||Slicing machine||BX214 5 tons/hour||Number of units||5|
|2||Belt conveyor||600×7500||Number of units||5|
|3||Wood hammer mill||SFSP66*60a 5 tons/hour||Number of units||5|
|4||Fan||9-26-5A Special fan for water cooling base||Number of units||2|
|5||Raw material upgrade wind net||Including diameter 1200 Shakron etc.||Number of units||1|
|6||Air shut off device||30 liters||Number of units||1|
|7||Tumble dryer||φ1400×18000||Number of units||2|
|8||Outlet skirt belt conveyor||600×9000||Number of units||1|
|9||Feeding belt conveyor||600×8600||Number of units||1|
|10||Permanent Magnet Roller||Automatic iron removal||Number of units||2|
|11||Bucket Elevator||9m 3-4 tons/hour||Number of units||2|
|13||Circular broken arch granulation bin||φ1500×1500||Number of units||2|
|14||Belt conveyor||ZH600×12 pairs||Number of units||2|
|15||Dehumidification fan||4-72-5A||Number of units||2|
|16||Dehumidification air net||Set||2|
|17||Cooler||ZH6||Number of units||4|
|18||Cooling fan||4-72-5||Number of units||1|
|19||Cooling wind net||ZH1000||Number of units||2|
|20||Belt conveyor||ZH600×8.5 pairs||Number of units||2|
7. Public Works of 400 Tons/day Wood Rice Husk Straw Biomass Pellet Production Line Project
(1) Water supply and drainage
Table 1-7 Project water balance sheet
|Water object||Water standard||Quantity||Water consumption
|Number of days (days)||Drainage (m3/d)|
|Fire fighting water||Reserve water||15 acres of pond|
|Vehicle, road cleaning and sprinkling||4.0||100||/|
|water for live||150L/person·d||40 people||6.0||300||4.8|
Water supply: The staff's domestic water comes from the water plant in Zhoujiatan Village, and the water supply demand is about 10m3/d. The fire fighting water comes from the southwest pond with an area of about 10 mu. See Table 1-7 for production and domestic water consumption.
Drainage: Drainage is a separate system of rain and sewage. There is no production wastewater. Domestic sewage is about 4.8m3/d. After treatment in a septic tank, it is discharged into the southwest pond to feed fish.
(2) Power supply
The installed capacity of electrical equipment for this project is 17000Kw, and the transformers of Taojiang Hongxin Paper Co., Ltd. are used. The starting and protection equipment of electrical equipment are installed on the power distribution panel of the power distribution room, and only the electrical room and control buttons are installed on site.
(3) Fire protection
The production of biomass fuel pellets has a large dust concentration and a moisture content as low as 5-20%. Once a fire source exists, it can cause a major fire. Fire safety will be the most important part of the company’s safe production. The project will install fire hoses, fire hydrants and a certain number of indoor fire extinguishers in accordance with the fire protection requirements; all electrical equipment will be equipped with short-circuit protection and overload protection devices. Once abnormal conditions occur Then it will sound an alarm or automatically cut off the power supply to quickly eliminate fire hazards or reduce the scope of the accident; the substation is installed with a grounding protection device, and the grounding resistance is not greater than 10Ω. The main building belongs to the third type of lightning protection structure, and the corresponding lightning protection is adopted in the design Grounding protection measures.
In order to ensure sufficient fire-fighting water sources, the company has leased the southwest pond (approximately 15 mu).

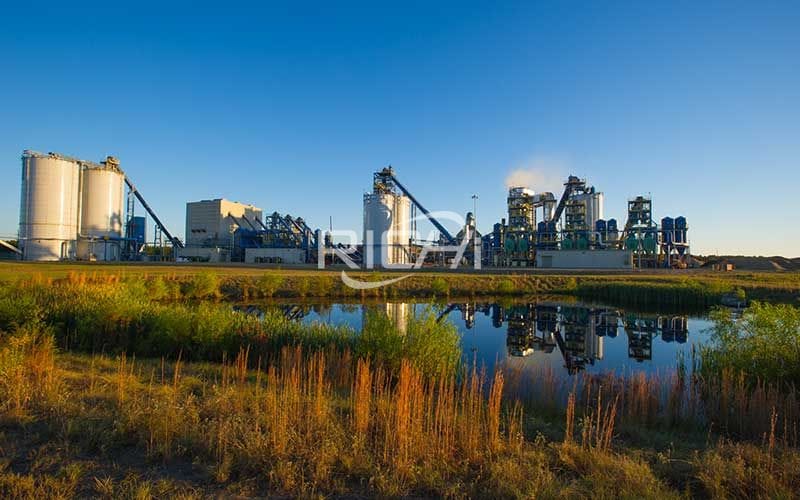

Biomass Pellet Plant Projects
8. Investment Scale and Capital Composition
Investment scale: The fixed investment of this project is 34.76 million yuan, and the environmental protection investment is about 600,000 yuan.
Funds Raising: A bank loan of 20 million yuan, the rest will be raised by the enterprise itself.
9. Labor Quota of 400 Tons/day Wood Rice Husk Straw Biomass Pellet Production Line Project
The company's labor force is 60 people, and 20 people stay in the company for a long time.
Work system: 300 working days per year, two shifts in normal time.
