Introduction And Case Of Wood Pelletizer With 2-3 Tons Per Hour

  • Clicks:

"I am looking for wood pellet mill with a capacity of 2-3 tons per hour and also a cooling machine. Please send me your options."This is a customer's message consultation on our website. Wood pelletizers and coolers with 2-3 tons per hour are the main equipment on the wood pellet production line. But what the customer wants is not a complete set of wood pellet lines, but also a wood pellet machine and a cooler equipment.

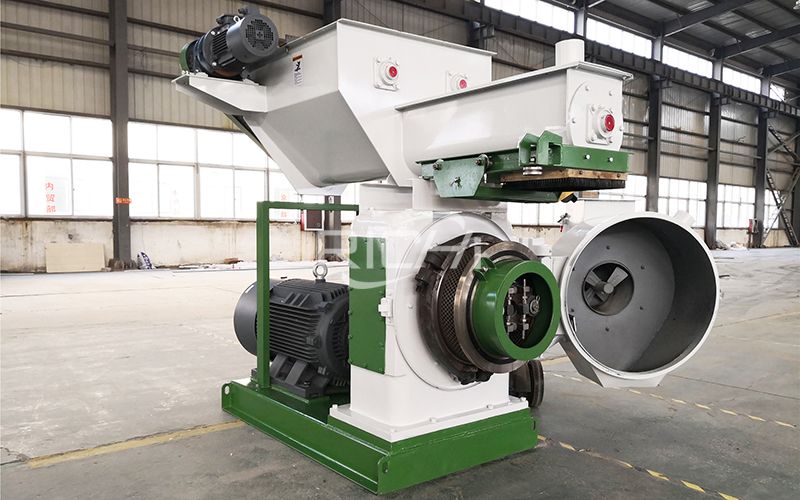

2-3 Tons Per Hour Wood Pellet Mill

2-3 Tons Per Hour Wood Pellet Mill
2-3 Tons Per Hour Wood Pellet Mill

  • Mode: MZLH-520
  • Capacity: 2-3T/H
  • Main Power: 160KW
  • The Size of Pellet Machine: 3000*1260*1860 MM
  • The Forced Feed Power :0.75 KW
  • The Pellet Machine Power: 160KW
  • The Final Pellet :6-12mm
  • The Weight : 4500KG

Wood Pellet Machine Model Output

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Anti-caking Feeder Power 1.5KW 1.5KW 1.5KW 2.2KW 3KW 3KW
Forced Feeder Power 0.55KW 0.55KW 0.55KW 0.75KW 1KW 1KW
Capacity 300-400kg/h 500-700kg/h 1.0-1.2 t/h 2.0-2.5 t/h 2.5-4 t/h 3-4.5 t/h
Pellet Machine Power 37kw 55kw 90kw 110/132kw 250/280kw 280kw
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm

2-3 Tons Per Hour Cooling Machine

The cooling of pellets is an indispensable process in the granulation section. The counter-flow cooler series can cool the pellets with a temperature of 70 ℃ -90 ℃ from the pellet mill. to a temperature slightly higher than the room temperature of 3 ℃ -5 ℃, and can be reduced to safe moisture (≤12.5%), which is convenient for pellets transportation and storage.

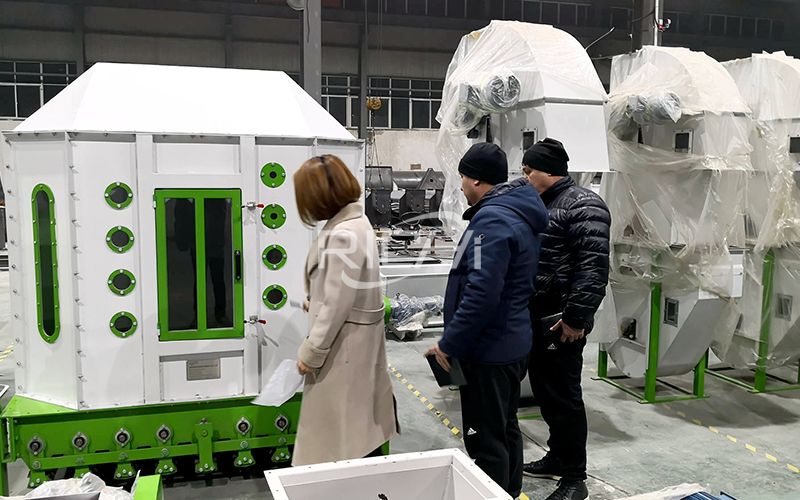

Cooling Machine
Cooling Machine

  • Mode: SKLN
  • Capacity: 3-5T/H
  • Main Power: 0.75KW
  • Applicable Working Conditions:Wood Pellet Line
Counterflow Cooler Parameter
Model SKLN11*11 SKLN14*14 SKLN17*17 SKLN20*20 SKLN24*24
Capacity(t/h) 1.5-2 3-5 5-8 9-12 13-18
Power(kw) 0.75 0.75 1.1 2.05 2.05

Mexico 2-3T/H Wood Pellet Machine Case

  • Name: Wood Pellet Machine
  • Country: Mexico
  • Capacity: 2-3T/H
  • Date: April 13th,2019
  • Installation cycle: 2 Days
  • Pellet Size: 6-12mm pellet

Related News

2-3 T/h Wood Pellet Machine Model Cases and Manufacturer

The above is the article for you: Introduction And Case Of Wood Pelletizer With 2-3 Tons Per Hour. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: sales@cnrichi.cn
