New Build 20-21T/H Customized Automatic Floating Fish Feed Mill Plant For Extruded Fish Pellets

Name:Floating Fish Feed Mill For Pellets
Country:China
Date:November 2020
Capacity:50000t/a, 20.8t/h (20-21t/h)
Feed Size:2-4mm
The install period:120 Days
Control Mode:Automatic
Cost to operate fish feed mill:3140000 USD

sales@cnrichi.cn sales@cnrichi.cn
Send Inquiry Send Inquiry

Overview of 20-21t/h customized automatic floating fish feed mill plant for extruded fish pellets

Agriculture is the most basic industry of consumer goods in China. The food or protein we take in every day is basically related to agriculture. At the same time, consumers influence the direction and mode of agricultural production. As we all know, aquatic products are rich in protein and protein is the main nutrition of the human body.

In addition, with the upgrading of consumption, people's protein satisfaction has become healthy and safe. Therefore, the change of people's lifestyle has promoted the increasing demand for aquatic products.

floating fish feed line floating fish pellet machine for sale

Based on the potential development of the aquatic feed industry, the client invested 20 million yuan (3140000USD) to build a 20-21t/h customized automatic floating fish feed mill plant project with an annual output of 50,000 tons of extruded feed in Kaifeng City, Henan Province, China.

The automatic floating fish feed mill processing plant project covers an area of ​​3333m2, about 5 acres, with a construction area of ​​3200m2. It is planned to employ 15 employees, all of whom will not be accommodated in the floating fish feed mill plant. Working 8 hours a day, 300 working days a year, the annual sales revenue is expected to be 50 million yuan (7850000USD), and the profit will be 10 million yuan (1570000USD).

float feed fish pallet how to make floating fish pellet

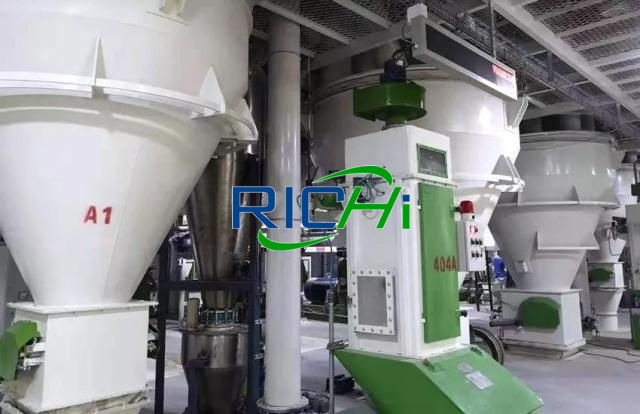

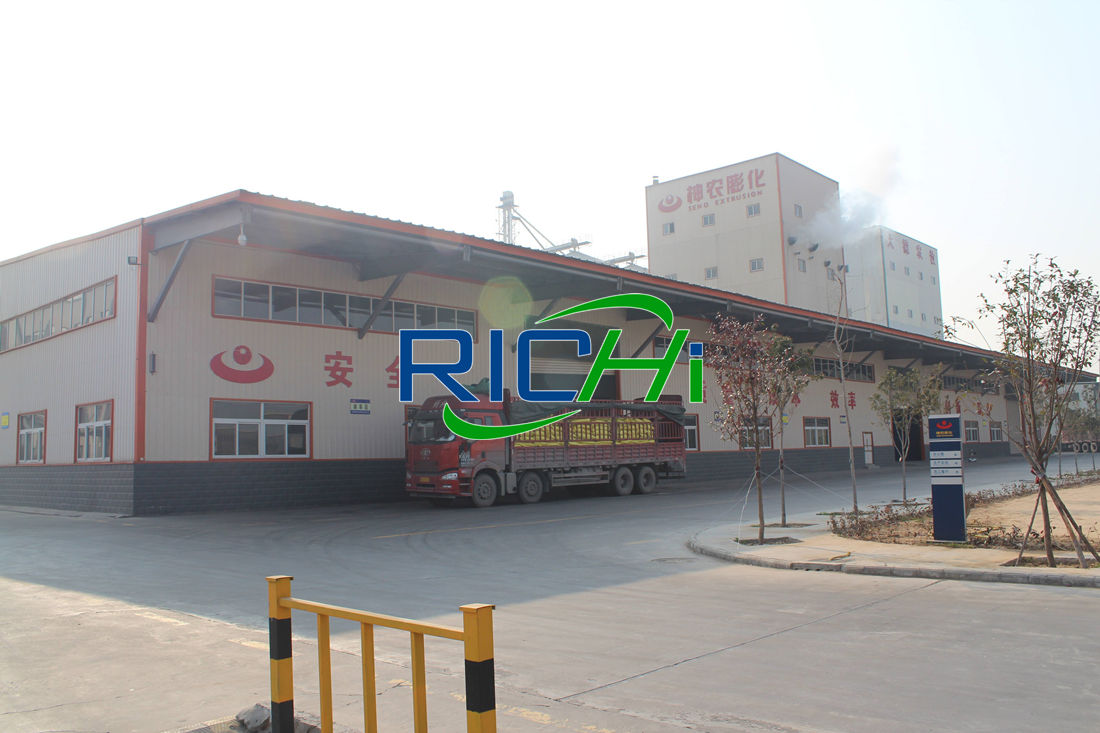

Workshop of the floating fish feed miller

According to the working system of the 20-21t/h customized automatic floating fish feed mill plant project, it can be calculated that the output of the aqua fish feed mill machinery plant project is 4166t/m, 166t/a, 20.8t/h (20-21t/h).

Get Floating Fish Feed Cost

Main technical and economic indicators of 20-21t/h customized high quality floating fish feed mill plant for extruded fish pellets

Name Quantity Notes
Total Investment 20 million yuan (3140000USD) Self-funded by all customer's fish feed company
Environmental Investment 160,000 yuan 0.80% of total investment
Total Footprint 3333m2 about 5 acres
Building Area 3200m2 /
Extruded Fish Feed 50,000 tons/a /
Labor Capacity 15 people None of the meals and lodging at the fish feed mill
Annual workday 300 days 8 hour work day
Annual Sales Revenue 50 million yuan (7850000USD) /
Total annual profit 10 million yuan (1570000USD) /
Get Floating Fish Feed Cost

Production scale and product plan of this 20-21t/h customized best floating fish feed mill factory for extruded fish pellets

Product Name Scale
Extruded Fish Feed 50,000 tons/year
floating fish feed pellet machine price in alibaba floating fish feed machine manufacturer in uk
Get Floating Fish Feed Cost

Main raw and auxiliary material consumption of this 20-21t/h advanced full floating fish feed mill factory for extruded fish pellets

Ingredient name Consumption (t/a) Notes
Corn 20000 Outsourcing, tanker transportation, temporary storage in raw material warehouse
Soybean meal 20000 Outsourcing, truck transportation, temporary storage in raw material warehouse
Rice 8000 Outsourcing, truck transportation, temporary storage in raw material warehouse
Other excipients 2000 Outsourcing, truck transportation, temporary storage in raw material warehouse
floating fish feed making machine importer in bangladesh floating fish feed pellet machine bd

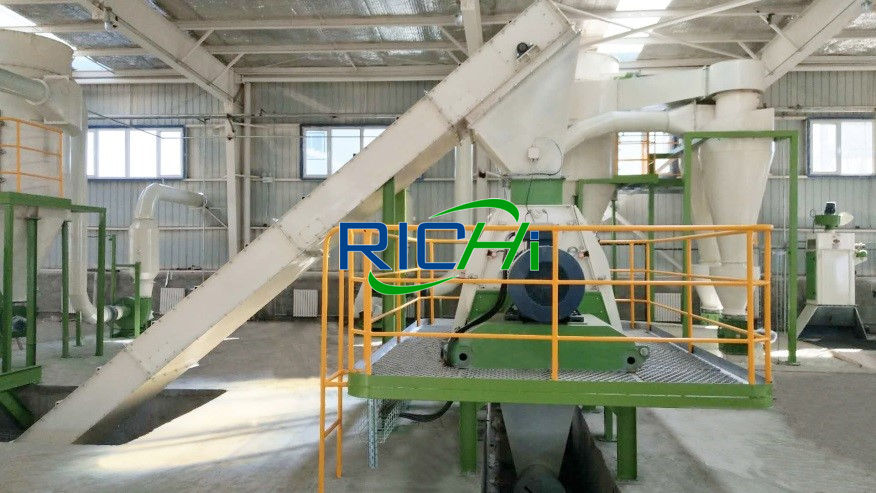

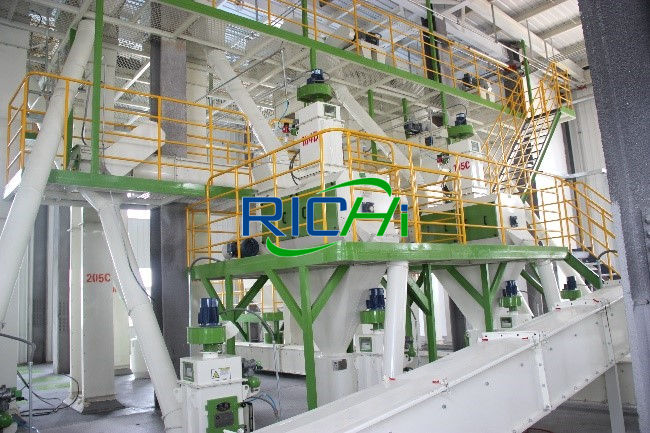

The picture is from the day the fish feed miller project was put into production
Get Floating Fish Feed Cost

Main energy consumption of this 20-21t/h advanced large capacity floating fish feed mill plant for extruded fish pellets

Name Dosage Notes
Water 249m3/a In-plant wells
Electricity 2 million kWh/a Local Power System
Get Floating Fish Feed Cost

The composition and main construction content of this 20-21t/h best quality floating fish feed mill plant for extruded fish feed

This high automation floating fish feed mill plant project is mainly a production workshop, mainly including raw material area, production area, finished product area, etc. The production and warehousing functions are clearly divided and the fish feed mill layout is reasonable.

floating feed extruder machines floating feed making machine

Project Composition Main item name Build Content Notes
Main Project Production Workshop The first floor, the building area is 3200m2, 100m*32m, mainly including raw material area, production area and finished product area. New
Utilities Water Supply Self-provided wells in the floating fish feed mill plant area New
Drainage There is no production wastewater discharge in this 20-21tph floating fish feed mill project; after the domestic wastewater is treated in the septic tank in the floating fish feed mill plant, the compost is regularly pulled away by the nearby villagers, and the wastewater is not discharged outside. New
Powered Local power supply network /
Environmental protection project Exhaust gas treatment Exhaust gas from feeding, crushing, puffing and screening process: gas collecting hood + bag filter + 15m high exhaust pipe New
Wastewater Treatment Worker's office and domestic sewage: septic tank, 1, volume 12m3 New
Solid Waste Treatment General solid waste temporary storage room, 1 room, 50m2; several household trash cans New
Noise Control Foundation vibration reduction, plant sound insulation, distance attenuation New
Get Floating Fish Feed Cost

Main floating fish feed machine of the 20-21t/h best quality floating fish feed mill plant for extruded floating fish feed

Best floating fish mill machine name Model/Specs Quantity
Magnetic Separator / 1
Fish feed crushers 45kw 1
Floating feed extruder machines 110kw 4
Screener / 1
Conveyor / 1
Finished shredder 110kw 1
Screener / 1
Packaging Machine / 1
floating fish feed plant floating fish feed machine price in nigeria
Get Floating Fish Feed Cost

Process of making floating fish feed in the the 20-21t/h best quality floating fish feed mill plant

The followings are details of floating fish feed production process in this fish feed mill project.

  1. Feeding section——floating fish feed manufacturing system

    The raw material enters the elevator through the screw conveyor, and is lifted to the upper part of the elevator to enter the magnetic separation equipment.

  2. Magnetic separation——floating fish feed manufacturing system

    Mainly remove iron-containing impurities in raw materials, avoid entering subsequent sections, and select permanent magnets for high-strength magnetism.

    floating machine for fish feed how much is floating feed machine in nigeria

  3. Ingredient crushing section——floating fish feed manufacturing system

    The material after magnetic separation is temporarily stored in the silo to be pulverized, and is slowly fed into the raw material by the screw conveyor through speed regulation.

    The fish feed pulverizer coarsely pulverizes the raw materials and increases the surface area of ​​the materials, which is convenient for conditioning and puffing in the subsequent sections.

    Choose the SFSP series enhanced water drop mill for grinding fish feed materials. Pulverization increases the dust removal process and improves the pulverization efficiency.

    production line for floating feeds floating feed machine price

  4. Puffing section——floating fish feed manufacturing system

    The material is crushed by the fish feed grinder and then distributed to 4 silos to be extruded through the lower closed air screw conveyor, bucket elevator, upper part auger, and pneumatic gate.

    The auger enters the extruder machine for fish feed at a constant speed to heat up, pressurize, knead, and then quickly eject from the die hole to complete the extruding process. Use the new EXP160 dry corn special extruder.

  5. Cool section——floating fish feed manufacturing system

    The temperature of the material after puffing is 110-140℃, and the temperature needs to be lowered in the cooling section to meet the requirements of the subsequent crushing and packaging section. The patented technology of the cooling silo is used to quickly reduce the temperature of the extruder feed.

    floating fish feed machine south africa floating pelleting machine price in ghana

  6. Finished pellets crumbling section——floating fish feed manufacturing system

    The puffed feed is cylindrical and large in shape. The feed is crumbled by a crumbler, and then pulverized into a powdery feed, which is subjected to negative pressure sedimentation through a high-pressure fan and a cyclone dust collector.

  7. Finished product screening section——floating fish feed manufacturing system

    After the negative pressure settling, the powdery materials enter the elevator for material screening, the floating fish pellets that meet the requirements enter the finished product warehouse, and the materials that do not meet the requirements enter the fish feed hammer mill for re-pulverization. After pulverization, they are lifted again and entered into the screening.

    2 floating feed pellet machine floating feed macking machine

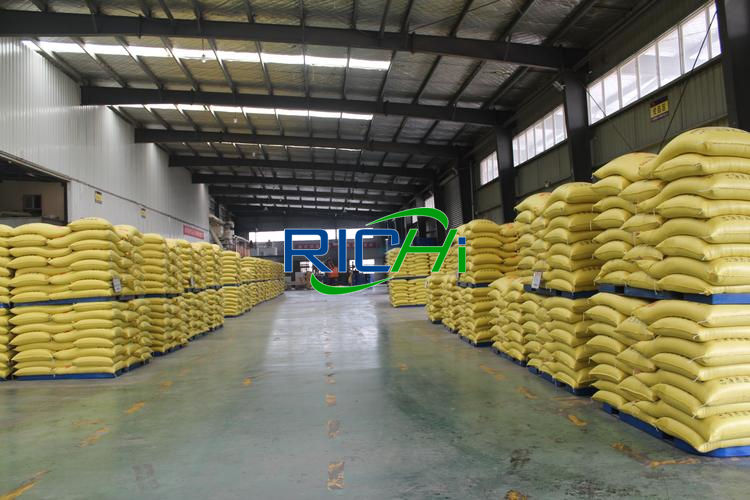

    Product warehouse of the fish feed miller

  8. Finished product packaging section——floating fish feed manufacturing system

    After screening, the finished materials flow into the finished product warehouse and enter the automatic packing scale. The automatic packing scale will automatically weigh and seal the packing bags, and then carry out pallet stacking. The forklift truck will put it into the finished product storage area to complete all the process engineering.

    Product warehouse of the fish feed miller

Get Floating Fish Feed Cost

Project water supply and drainage of the 20-21t/h best quality floating fish feed mill plant for extruded floating fish feed

Water supply

The fresh water consumption of this 20-21t/h extruder feed mill project is 0.83m3/d, 249m3/a, mainly for cooling water circulation and domestic water for employees.

The water used in this 20-21t/h extruder fish feed mill project is self-provided wells in the 20-21t/h extruder feed mill plant, which can meet its water demand.

  • Cooling circulating water

    According to the information provided by the company, the cooling cycle water volume of this 20-21t/h extruder feed mill project is 12m3/a, which is recycled and discharged every six months. Therefore, the cooling cycle supplementary water consumption of this 20-21t/h extruder feed mill project is 0.080m3/d, 24m3/a,

    fish pellet floating machine japan purvaj engineering floating fish feed machine

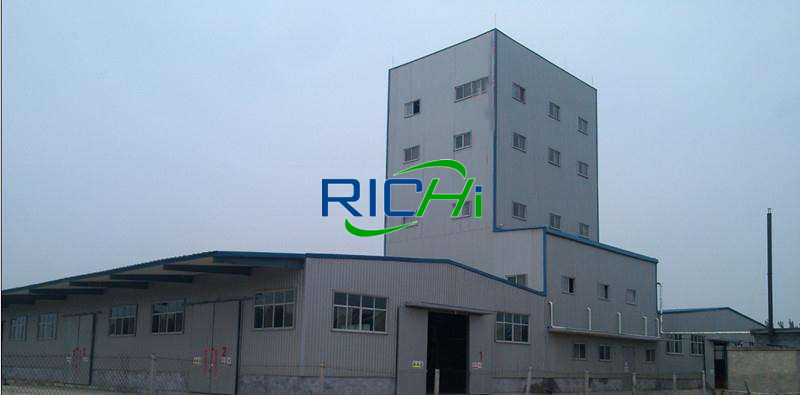

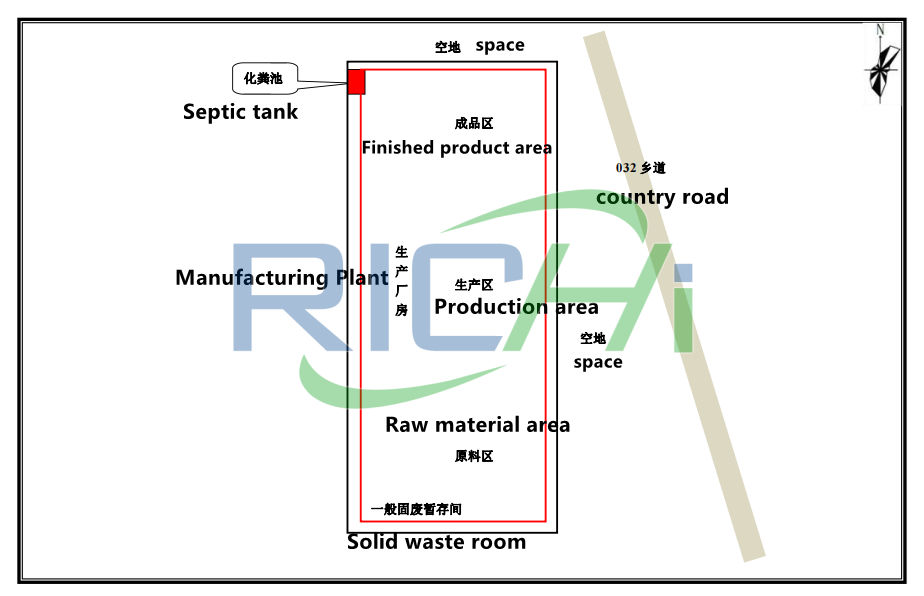

    The 20-21tph extruder fish feed mill layout

  • Water for domestic use

    The 20-21t/h extruder feed mill project plans to employ 15 employees, all of whom are not in the fish feed mill factory for board and lodging (the water consumption index for board and lodging outside the factory is calculated as 0.05m3/d·person), and the annual work is 300 days, the office and domestic water consumption is 0.75m3/d, 225m3 /a.

Drainage

The cooling water of this 20-21t/h extruder feed mill project is used for recycling, but it needs to be discharged regularly. Therefore, the wastewater of this 20-21t/h extruder floating fish feed mill project is mainly office and domestic wastewater.

floating fish feed production processing machine cost floating fish feed machine spare parts pdf

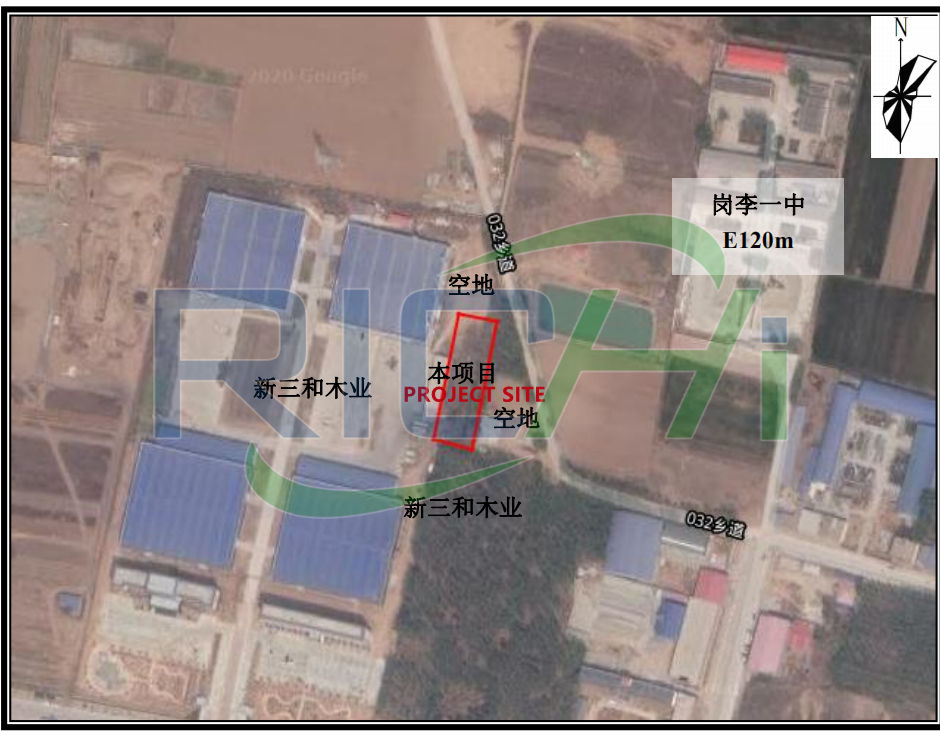

The extruder fish feed mill project site and surroundings

Worker's office and domestic wastewater: The discharge amount of the staff's office and domestic wastewater in this large floating fish feed mill project is calculated as 80% of the staff's office and domestic water consumption, then the employee's office and domestic wastewater discharge is 0.60m3/d, 180m3/a, which is treated by the septic tank in the 20-21t/h extruder feed mill afterwards, the compost is regularly pulled away by nearby villagers.
