2500 Tons Per Month Large Capacity Wood Pellet Factory For Making Wood And Agricultural Waste Straw Pellets(12.5TPH)

In this case, the customer invested 1,570,000USD to build a new biomass wood pellet manufacturing business with an annual output of 30,000 tons, which is of great practical significance. It can not only drive social and economic benefits, but also meet the needs of Environmental protection needs.

2500 Tons Per Month Large Capacity Wood Pellet Factory For Making Wood And Agricultural Waste Straw Pellets(12.5TPH)

OVERVIEW

With the development of China's national economy, biomass as a clean energy will be valued and favored, and biomass power plants will continue to expand. Straw charcoal can replace raw coal and fuel oil, and is widely used in biomass power plant gasification boilers, domestic boilers, heating furnaces, hotels, restaurants and other industries, and can replace traditional coal. Therefore, the demand for straw charcoal will continue to grow.

  • Name:

    Large biomass wood pellet production factory

  • Country:

    China

  • Date:

    January 2019

  • Capacity:

    12.5t/h, 100t/d

  • Pellet Size:

    8mm

  • The install period:

    60 Days

  • Control Mode:

    Automatic

  • Wood pellet factory investment:

    1570000 USD

Shou County, where the 2500 tons per month wood pellet factory project is located, is a large agricultural county with abundant crop straw resources. The rational utilization of straw has also become an important force in promoting local economic development.

Therefore, the customer of this wood biomass pellet plant project, Shouxian Chuangzhi Biofuel Technology Co., Ltd., invested 10 million yuan (1,570,000USD) to build a new biomass wood pellet manufacturing business with an annual output of 30,000 tons, which is of great practical significance. It can not only drive social and economic benefits, but also meet the needs of Environmental protection needs.

The 2500 tons per month large capacity wood pellet factory project has 8 employees, the annual effective production is 300 days, 8 hours a day. It can be calculated that the output of the project is 12.5t/h, 100t/d.

Contruction content of the 2500 tons per month large capacity industrial wood pellet factory

Project name Single project name Project content and scale Remarks
Main Engineering Crushing Workshop The leased rice plant in Yankou Town, Shouxian County has built a factory building with a construction area of ​​about 1500㎡; it mainly purchases wood pellet production machine such as biomass pellet machines, wooden scrap crusher, and produces 30,000t of pellets annually. The wood pellet factory building relies on the existing, newly purchased equipment
Pelletizing workshop Located on the west side of the crushing workshop, with a building area of ​​about 500㎡ and a built-in wood pellet forming machine.
Crushing Workshop Is a new steel structure workshop, located on the east side of the wood pellet factory area and on the south side of the crushing workshop, with an area of ​​about 750㎡, mainly used for raw material crushing and raw material storage. New
Auxiliary Engineering Office area A 2-story building, located on the south side of the wood pellet factory, with a total construction area of ​​about 300㎡. Build on existing
Storage and transportation  Ingredient warehouse Located in the crushing workshop, with an area of ​​400㎡, the workshop is a steel structure workshop. New
Finished Products Warehouse Located on the south side of the crushing room and west of the crushing workshop, with an area of ​​about 350㎡. New
Utilities Powered Supplied by municipal power transmission line, one 1000KVA transformer is planned to be installed in the wood pellet factory. Build on existing
Water Supply The water supply pipe network of Yankou Town can meet the production and domestic water supply of the wood pellet factory project. Build on existing
Drainage Separation system for rain and sewage, waste water is not discharged. Build on existing
Environmental protection  Wastewater Treatment After being treated in the septic tank, it is regularly scooped up to be used as agricultural fertilizer, and is not discharged. Build on existing
Exhaust gas treatment The dust of crushing process is gas collecting hood + bag filter + 15 exhaust pipe; the waste gas treatment facility of crushing process is gas collecting hood + bag filter; granulation waste gas: equipment airtight + gas collector + bag filter Unorganized emissions in the workshop; drying process waste gas facilities: bag filter + 15m exhaust pipe. New
Solid Waste General garbage bins; ash and slag temporary storage pool, hazardous waste temporary storage room. Build on existing
Noise Control Use low-noise wood pellet making equipment, high-noise equipment to reduce vibration and sound insulation of workshops. Build on existing
Risk Prevention Set up a 15m³ rainwater pool and a 20m³ fire pool with fire extinguishers.
Greening Plant trees and turf in the wood pellet factory area. Build on existing
small crusher wood machine bamboo pellets vs wood pellets where are wood pellets made kahl wood pelleting plants

Product solutions of the 2500 tons per month large capacity wood pellet mill factory

Product name Production scale
Biomass Pellet Fuel 30000 tons/year

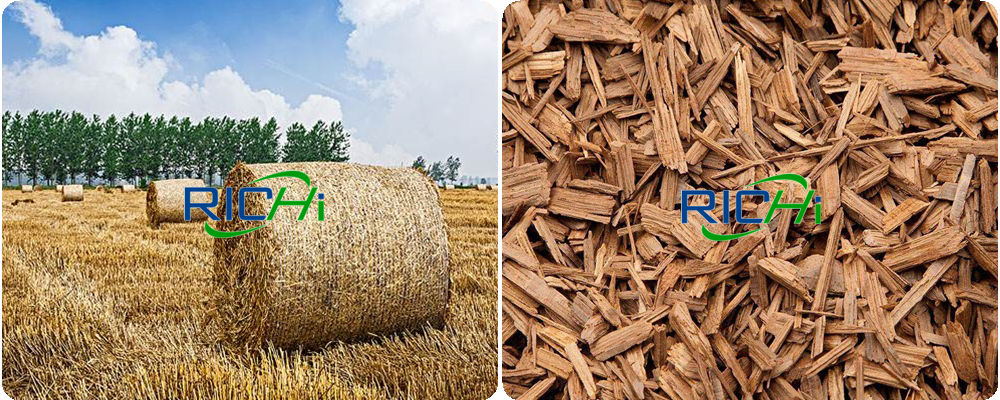

Main raw and auxiliary material consumption

Name Amount (t/a) Maximum Storage Packaging Specifications Raw Material Properties Storage location and area
Straw 30000 600 tons Bundle Agricultural Waste Inside the crushing workshop (area 15m*25m)
Biomass pellets 300 5.0t Bag Fuel Pelletizing workshop
Sawdust 10000 200 tons Bulk Waste wood Inside the crushing workshop (area 15m*25m)

Main energy and resource consumption

Name Annual consumption source
Water 102 tons/a Water Network
Electricity 300,000 degrees/a Power grid
ring die wood pellet mill wood pellet equipment for sale enplus a1 wood pellet specification pellet mill cpm master pellet mill woodstock business industrial business industrial

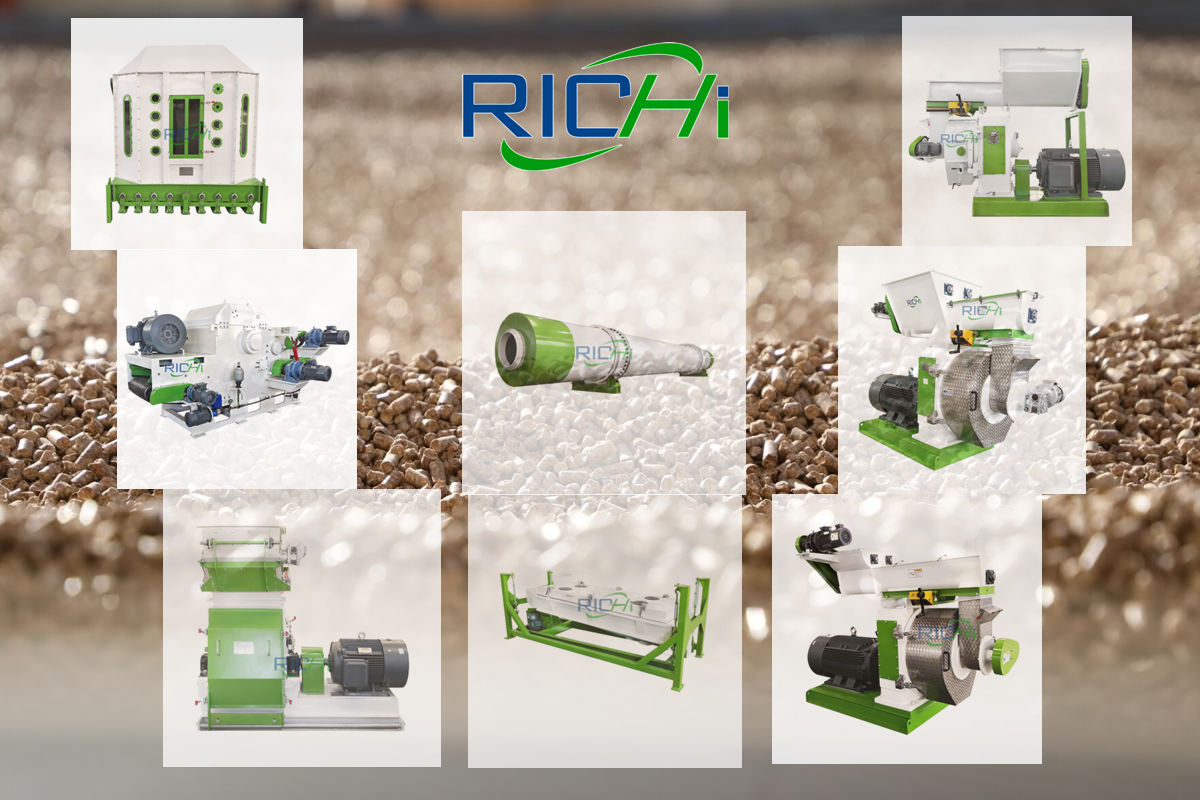

Machine to make wood pellets in the industrial 2500 tons per month large scale wood pellet mill factory

Name of machinery needed for making wood pellets Model Specifications Number Affiliated to the production line or workshop Remarks
C Type Double Row Blanking Auger SLJL3x1.2-C 1 Raw Material Workshop /
Separation Auger FLJL-400x4.5 m 1 Raw Material Workshop /
Wood straw agri wastes crushers Comprehensive Smash 1 Crushing Workshop /
Wood scraps crushers Comprehensive crushing 1 Crushing Workshop /
Biomass Hot Air Stove FKQH-60 1 Pelletizing workshop Fuel consumption: 125kg/h; size 1.3*1.3*2.2m
Conveyor Belt SSD-600x7m 4 Crushing Workshop Closed
Straw wood pelletizer MZLH-520 2 Pelletizing workshop /
Automatic Packaging Machine XSB-25 1 Pelletizing workshop /
Control cabinet base assembly KZGDZ-XL21-700x350 1 Pelletizing workshop /
Corner Aggregate Belt ZJJLD-500x4+1m 1 Raw Material Workshop /
Corner Scraper Belt ZJGBD-500x8.5+1.5m 2 Pelletizing workshop /
Bag Dust Collector BDCC-1.5x1.5 3 Raw material workshop, Pelletizing workshop /
Ton belt conveyor DSS600-5 1 Pelletizing workshop Closed
Type A Raw Material Silo YLC-10³-A 2 Raw Material Workshop /
Pellet Silo KLC-40³ 1 Pelletizing workshop /
wood pellet machines for sale wood pellet pricing https www google com url sa t&source web&rct j&url http m ro kingwoodru com biomass pellet mill machine pellet extruder biomass

Utilities of the large industrial 2500 tons per month wood pellet factory for commercial

  • Water supply and drainage

    This 12.5t/h wood pellet factory project uses the municipal water supply pipe network of Yankou Town. The drainage system of the wood pellet factory area shall be implemented with the rainwater and sewage diversion system.

    The wastewater in the 12.5tph large wood pellet factory area is mainly domestic sewage. After the domestic sewage is treated in the septic tank, it is regularly cleaned and used as agricultural fertilizer, and is not discharged outside.

  • Powered

    The power supply of this 12.5tph large wood pellet factory project is connected to the municipal power supply system of Yankou Town, which can meet the electricity demand of the wood pellet factory project.

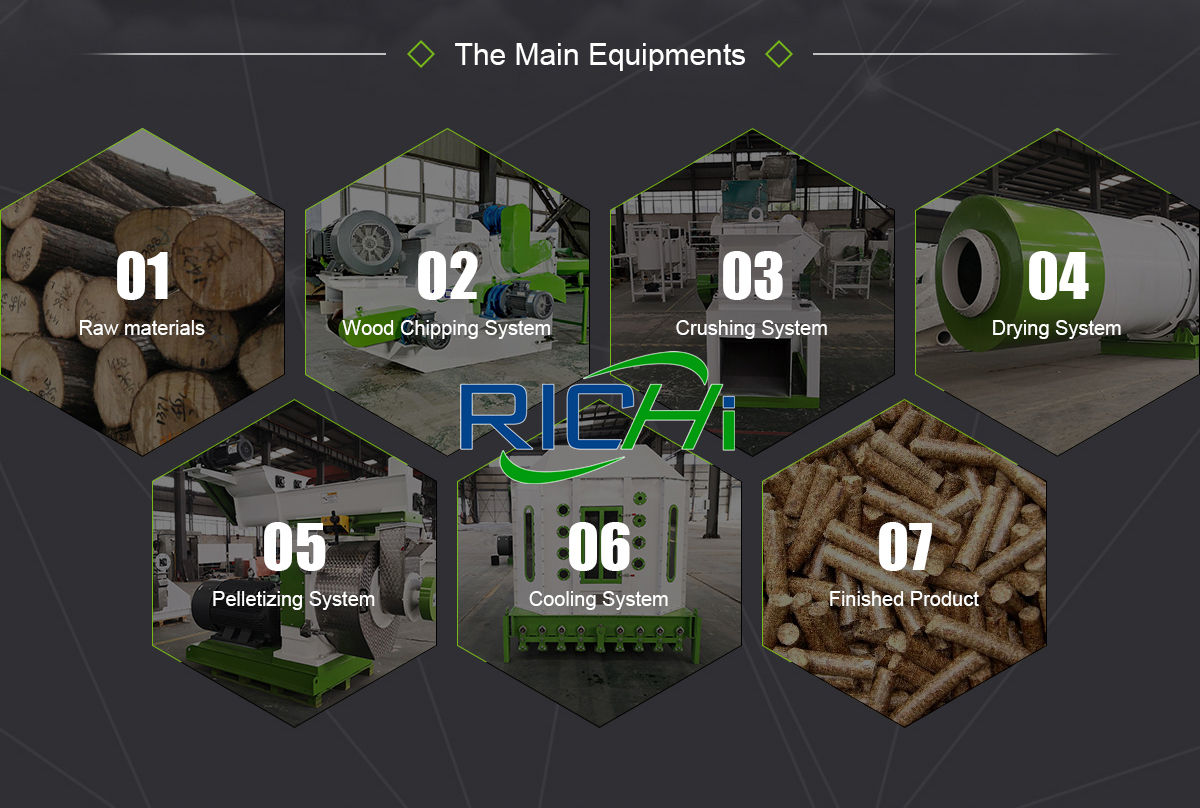

Wood pelletizing process of the large industrial 2500 tons per month wood pellet factory for commercial

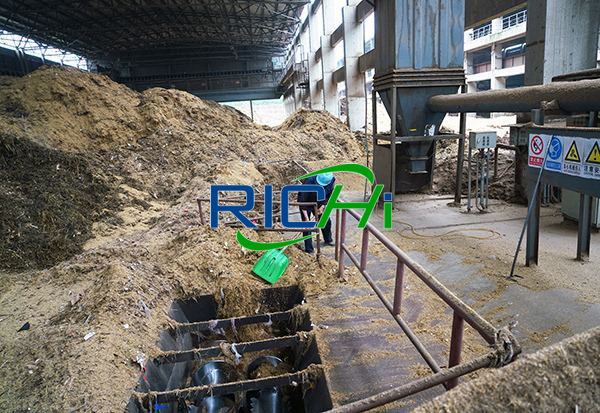

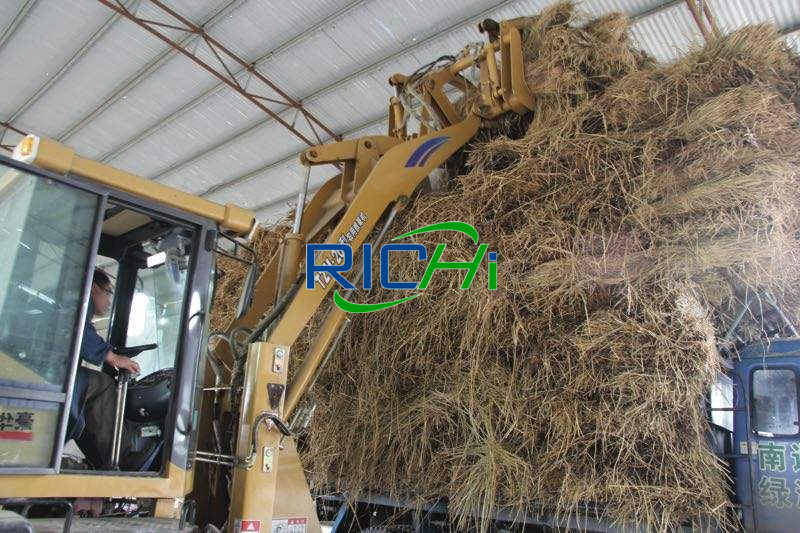

Note: The raw material (sawdust, straw, etc.) storage sites of this 12.5t/h wood pellet factory project should be set up in the workshop and not stored in the open air; closed measures should be taken for the conveyor belts, feeding and blanking ports, etc., to increase the air volume of the air collecting hood and improve exhaust gas collection efficiency, strengthen equipment maintenance, keep dust removal equipment in good condition; strengthen workshop ventilation, and discharge unorganized dust up to the standard.

  1. Crushing and pulverizing

    The main raw materials, straw and wood chips, are pulverized by wood crusher machines and straw crushers to make the particle size less than 5mm.



  2. Drying

    For some waste wood scraps with high water content, it is necessary to dry the granules that have been pulverized as raw materials to make their moisture content meet the requirements for granulation (moisture content is less than 5%).

    The materials in this wood pellet factory project are dried. The wood dyer machine is usually equipped with a biomass hot blast stove or boiler, and the fuel is biomass pellets.

  3. Conveying and feeding

    The raw materials are sucked into the feeding port of the wood pellet making machine through the feeding auger.

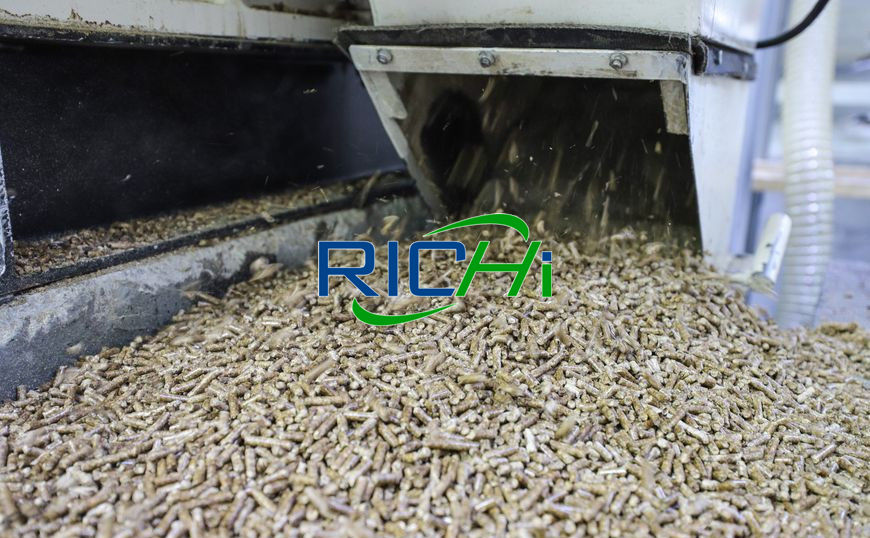

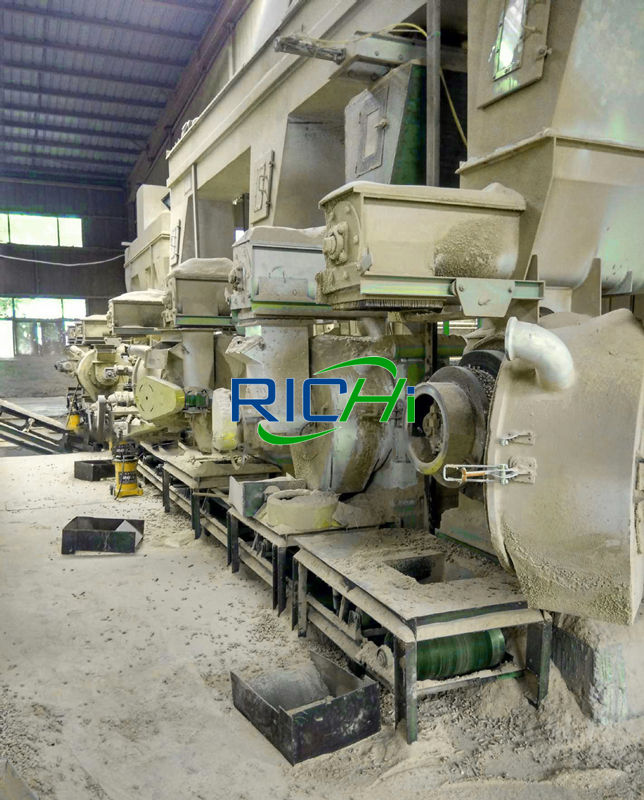

  4. Pelletizing

    The raw materials are fed into the wood & straw pellet machines through the feeding auger, and the finished product is made by extrusion molding. The extrusion process is a physical process, no adhesive is added, and no chemical reaction occurs.

    Except for the connection of the feeding auger, the pelleting systems for straw wood machine is sealed at the place and the discharge port and outside.

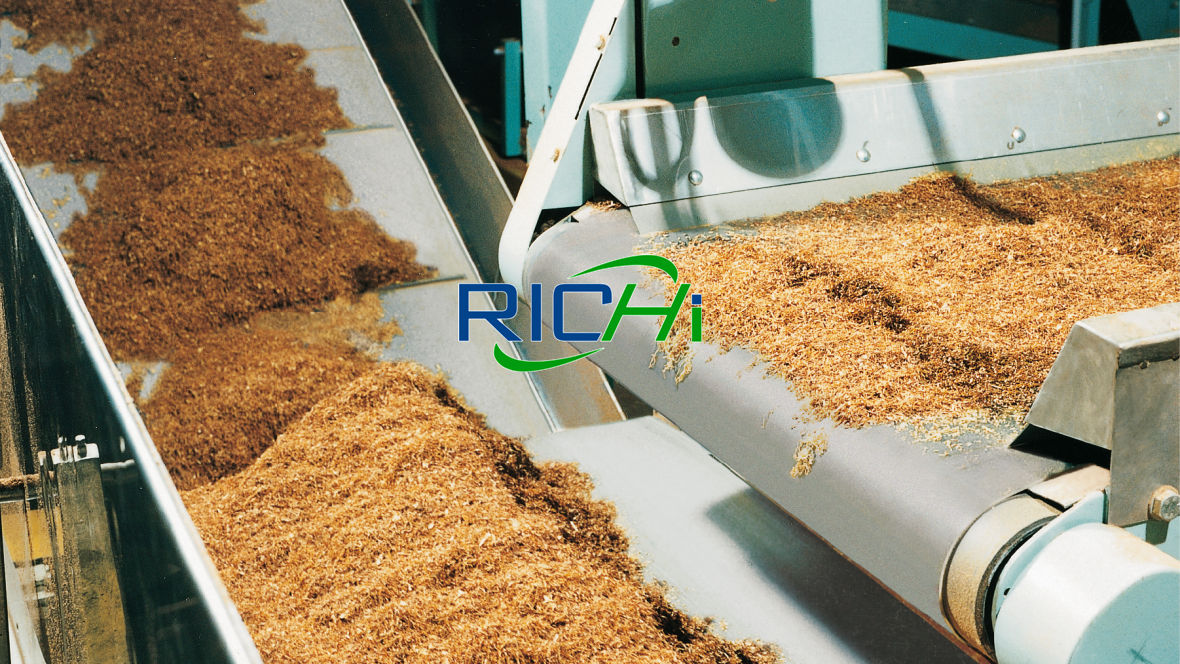

  5. Conveying and cooling

    The granulated biomass pellets are naturally cooled by conveying, so that the temperature can reach the conditions of packaging and storage, and finally conveyed to the finished product storage tank.

  6. Packaging and warehousing

    After cooling in the storage tank, the products are packaged and put into the warehouse.

Material balance of the large industrial 2500 tons per month wood pellet factory for biofuel

Input output
Ingredient name Amount (t/a) Output method or name Output (t/a)
Straw 30000 Biomass pellets 30000
Sawdust 10000 Dust 43.97
Biomass pellets 300 ash 6.0
    Water Vapor 10250.03
Total 43000 Total 43000

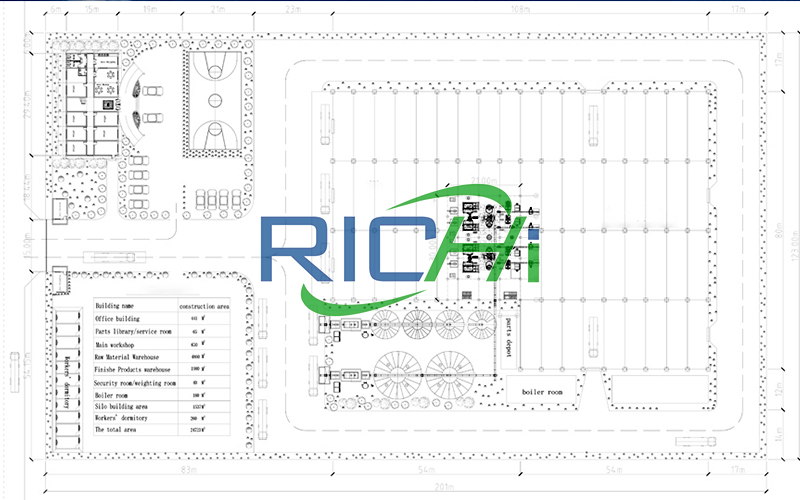

Analysis of rationality of the large industrial 2500 tons per month wood pellet factory layout

This wood biomass pellet mill factory project mainly reconstructs the crushing workshop, pelletizing workshop, raw material warehouse and finished product warehouse.

The entrance and exit of the wood pellet mill factory project are located on the west side of the factory area, the crushing workshop and molding workshop are located on the north side of the wood pellet factory area, and the office area is located on the south side of the wood pellet factory area.

Outside the gate of the wood pellet factory is a rural road, about 100 meters to the west to connect to the 020 county road, the transportation of products and raw materials in the factory is very convenient.

The overall production workshop of this wood pellet factory project is arranged from east to west according to the wood pellet production process flow, followed by crushing workshop (about 400㎡ area is set aside as a raw material stacking area in the workshop, and the daily storage of raw materials such as straw and wood chips is about 800 tons) , crushing workshop, granulation workshop and finished product stacking workshop.

wood pellet fabrication machine biochar from wood pellet burning in power plant wood pellets manufacturing process jual pressed wood pellet di bandung

The crushing workshop and pelletizing workshop are the main pollution sources of the wood pellet factory project. They are located on the north side of the wood pellet factory area. The north side of the wood pellet factory project site is surrounded by forests and farmland, which can be used to reduce dust and noise and reduce the impact on surrounding residents.

According to the noise prediction results, the noise at the biomass pellet production line project boundary can reach the emission standard. The overall layout of the wood pellet factory project is reasonable.

Analysis of rationality of planning and site selection of the large industrial 2500 tons per month wood pellet factory for fuel pellets

The location of the large wood pellet factory project site has convenient transportation, flat terrain and superior geographical location, which is conducive to the transportation of raw materials, auxiliary materials and finished products required for the production of the large wood pellet factory project.

Convenient communication, abundant energy supply, suitable for manufacturing activities. The large wood pellet factory project site is located in Yankou Town, Shou County, Huainan City, Anhui Province. The large wood pellet factory has been built by renting a rice seed farm.

The large wood pellet factory project will not add new land. The north and south sides of the large wood pellet factory project are farmland, and the east side is forest. The large wood pellet factory project is about 100m from 020 County Road, there are rural road connections between them, and the transportation is convenient.

There are no nature reserves, scenic spots, drinking water sources and other environmentally sensitive targets around the 100m site, and the natural environment conditions are good.

All pollutants of the large wood pellet factory project can be discharged up to the standard after treatment, with little impact on the surrounding environment. The large wood pellet factory project conforms to the general land use planning of Yankou Town, Shou County, and conforms to the local construction plan.
