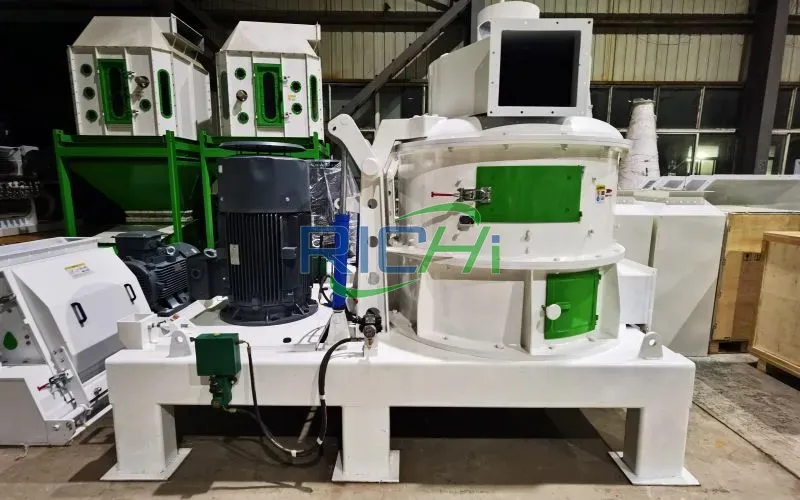

3.0-4.0 T/H Sinking Fish Feed Powder Grinder in Pakistan

The company's technical manager knew that to capture this essential segment of the Pakistani market, they needed to upgrade the very foundation of their aquafeed process: the grinding stage. They were not building a new factory but strategically inserting a single, specialized machine into their existing line.

Their mixer machine, fish feed extruder (configured for sinking pellets), and dryer were adequate, but their output quality was fundamentally limited by poor raw material preparation.

They needed a dedicated sinking fish feed powder grinder capable of producing an ultra-fine, homogeneous, and thermally stable powder—the absolute prerequisite for manufacturing high-stability sinking pellets. After evaluating equipment from various regional and international suppliers, RICHI Machinery's SWFL series was chosen.

Its specific engineering for aquatic feed, with a focus on precise particle control and low-heat grinding, directly addressed their core problem. This led to the installation of a Sinking Fish Feed Powder Grinder in Pakistan, a single-machine solution that transformed their aquafeed quality.

Material Profile: Grinding for Robust Pakistani Aquafeed Formulations

The raw material mix for their sinking carp and tilapia feed is designed for cost-effectiveness and performance:

• Fishmeal (imported, for essential amino acid profile).
• Mustard Oil Cake (a locally abundant, cost-effective plant protein source, but fibrous and challenging to grind finely).
• Rice Polish and Wheat Middlings (local by-products for energy and binder content).
• Maize (for starch to aid in sinking pellet binding).
• Vitamin/Mineral Premixes (imported, heat-sensitive).

The grinding specification was exacting and driven by the need for water stability: achieve a consistent particle size where 95% of the material passes through an 80-mesh screen (approx. 180 microns), with an extremely narrow distribution. This specific fineness is critical in the Pakistani context for several reasons:

1. Maximized Water Stability: An ultra-fine, uniform powder ensures complete and uniform starch gelatinization during conditioning. This creates a dense, cohesive pellet matrix that can withstand immersion for 1-2 hours without significant disintegration, which is vital for bottom-feeding fish and pond water quality management.
2. Improved Digestibility for Carp: Major carps lack a true stomach and rely on thorough enzymatic digestion. A finely ground feed dramatically increases the surface area for enzyme action, improving protein and energy absorption and directly lowering the FCR—a key selling point for farmers.
3. Efficient Binding with Local Ingredients: The fibrous mustard oil cake requires fine grinding to expose its protein and allow for effective binding with maize starch, ensuring pellet integrity.

Given the company's significant production goals to supply a large number of small and medium-sized fish farms, they needed a crusher machine with robust, reliable mid-range capacity. RICHI's engineers recommended the Model SWFL130 Ultrafine Pulverizer.

This model was selected as the optimal balance of precision and power for their Pakistani operation:

• Main Motor Power: 132 kW (Sufficient power to handle the tough, fibrous mustard oil cake efficiently).
• Classification Wheel Power: 11 kW.
• Feeding Power: 1.5 kW.
• Fineness Range: 80-200 mesh (Perfectly aligned with their 80-mesh core target).
• Output (Secondary Crushing): 3.0-4.0 T/H (An ideal capacity to match their extruder's output for sinking pellets).

The Pivotal Role in Sinking Pellet Production

This RICHI sinking fish feed grinder is now the dedicated preprocessing heart of their aquafeed line. Pre-mixed dry ingredients are fed via a controlled screw conveyor into the grinding chamber. The high-speed rotor, armed with wear-optimized alloy hammers and the innovative wave-toothed ring, subjects the material to intense impact and shear forces.

The core of the system is the dynamic classifier. It functions as an internal, instantaneous precision selector, continuously allowing particles that meet the 80-mesh specification to exit via the air stream to the cyclone, while recirculating any coarser particles for further reduction.

This closed-loop grind-classify system delivers transformative outcomes:

• Guaranteed Pellet Integrity: The consistent, ultra-fine powder it produces ensures optimal starch cook and binding. This directly translates to sinking pellets with high durability and water stability, a quality parameter immediately recognized and valued by Pakistani fish farmers.
• Low-Temperature Grinding for Nutrient Preservation: The efficient, high-volume airflow through the chamber carries away grinding heat. This is essential for preserving the potency of the imported, heat-sensitive vitamin and mineral packs, ensuring the nutritional claims on the feed bag are met.
• Process Optimization: The uniform powder quality stabilizes the downstream conditioning and extrusion process, leading to more consistent pellet sinking speeds, reduced die wear on the extruder, and fewer production disruptions.

The resulting high-quality powder is used to produce premium, slow-sinking feed for major carps and tilapia, directly contributing to improved farm productivity and solidifying the company's reputation in Pakistan's competitive aquafeed market.

Shipping and Logistics to South Asia

The SWFL130 sinking fish feed grinder, complete with feeder and cyclone, was manufactured, tested, and prepared for shipment. It was packed into containers and shipped from Qingdao Port, China. For Pakistan, a major South Asian destination, the closest and most efficient port is the Port of Karachi, Pakistan. The shipment was delivered directly to Karachi, where after customs clearance, it was transported by road to the feed mill in Punjab.

Technical Superiority: Engineered for Precision and Tough Conditions

The successful deployment of the Sinking Fish Feed Powder Grinder in Pakistan is based on features that tackle both precision requirements and operational challenges:

• Precision Particle Sizing via Dynamic Classification: The independently driven classifier allows operators to dial in the exact fineness (80-200 mesh) in real-time. This is crucial for optimizing the grind for different sinking feed formulas without stopping production, ensuring each batch meets the strict water stability standard.
• Advanced Wear Resistance for Fibrous Materials: The strategic placement of hardened alloy plates on high-wear components is particularly important when processing abrasive and fibrous ingredients like Pakistani mustard oil cake and rice polish. This technology extends service life, reduces maintenance frequency and cost, and maintains consistent grinding performance—key for product quality and operating economics.
• Intelligent Monitoring for Reliable Uptime: The comprehensive sensor suite (bearing temperature, vibration, classifier speed) enables predictive maintenance. In a market where production delays can mean lost contracts, this early-warning system is invaluable for preventing unplanned shutdowns and ensuring consistent supply to farmers.
• Optimized Airflow for Cooling and Efficiency: The multi-point, uniform air inlet system is engineered to synergize with grinding, improving efficiency while providing critical in-process cooling. This protects heat-sensitive nutrients, a major quality advantage.
• Stable, Heavy-Duty Construction: The precision-balanced rotor (<4mm/s vibration) and robust frame ensure smooth, stable operation even when processing dense materials, leading to longer machine life and reliable integration into the production line.

Client Testimonial from Punjab, Pakistan

After the first full production cycle, supplying feed for the major carp stocking season, the technical manager shared his feedback: "Entering the sinking feed market required us to solve the water stability problem.

The RICHI sinking fish feed powder grinder was the solution. The fineness and consistency of the powder are exactly what we needed. Our pellets now hold together in water for over 90 minutes, which our farmers are very happy about. The machine handles our local mustard cake without any issues.

The operational data from the sensors helps us plan maintenance proactively. For a single machine that targeted our key quality constraint, this aquafeed micro grinder has performed exceptionally well and has been vital to our success in the Pakistani market."

The SWFL Platform: A Foundation for Diversification

While central to this project as a sinking fish feed powder grinder in Pakistan, the SWFL130 is a versatile platform for fine grinding:

• Production of starter feeds for other aquatic species.
• Fine grinding for poultry pre-starter feeds.
• Processing of specialty food or chemical powders.

This versatility provides the Pakistani company with a platform for future product line expansion.

Why RICHI was the Partner of Choice

The Pakistani feed manufacturer selected RICHI after a thorough evaluation:

1. Application-Specific Expertise: RICHI demonstrated a clear understanding of the link between ultra-fine grinding, starch gelatinization, and final pellet water stability—the core of their quality challenge.
2. Value and Performance Balance: The machine offered precision grinding technology and durability at a capital and operational cost point that made the business case for entering the specialty aquafeed segment highly viable.
3. Complete System Support: RICHI provided a full system package with detailed documentation and responsive remote support during installation, ensuring a smooth integration into their existing layout.
4. Focus on Long-Term Operation: The design emphasis on wear resistance, intelligent monitoring, and serviceability showed a commitment to maximizing uptime and return on investment.

Partner with RICHI for Your Specialty Feed Production

The Pakistan case illustrates how a targeted investment in a precision sinking fish feed powder grinder can solve a defining quality challenge, enabling a feed mill to successfully enter and compete in a demanding specialty market.

At RICHI Machinery, we partner with feed producers to analyze their specific material and market challenges. We deliver engineered grinding solutions that combine precision, robustness, and smart features, ensuring your investment becomes a reliable driver of product quality and market share.

If you are producing sinking feeds, or any aquafeed requiring superior water stability and digestibility, a RICHI micro grinding system is engineered to provide the foundational powder quality you need.

Contact RICHI Machinery today. Discuss your sinking feed formulations and production goals. Let's build a grinding solution that ensures your pellets perform in the water.
