4T/H Plywood Factory Edge Waste Pellet Making Machine in Indonesia

Where the raw material actually comes from

This project is tied to a plywood factory located in Sumatra. The factory mainly processes tropical hardwood veneers, producing a large amount of edge trimming waste. The raw material for this plywood factory edge waste pellet machine in Indonesia is not typical sawdust.

It includes:

• Veneer edge strips (long, thin, slightly curled)
• Broken plywood pieces with glue layers
• Some sanding dust from finishing lines (about 10% mixed in)

One thing that needed attention early on was glue content. Unlike pure wood residues, plywood waste contains adhesive, which affects pelletizing behavior. Too much can cause sticking inside the ring die; too little makes pellets less stable.

After testing, the client settled on a controlled mix—mostly edge waste, with a small portion of drier wood dust to balance moisture and binding.

Why only one pellet machine?

The client chose to install one MZLH768 plywood edge waste pellet machine in Indonesia, targeting a capacity of around 4 tons per hour.

This wasn’t about budget limitations. It was more about how much waste the factory actually generates per shift. During peak production, edge waste output is high, but it’s not continuous.

Installing two machines would have created idle time. So a single biomass pellet machine in Indonesia was enough to handle daily accumulation without overinvestment. Also, the client wanted to observe long-term performance before expanding.

They mentioned clearly:

If this works well for six months, we will consider a second unit.

Equipment configuration and real considerations

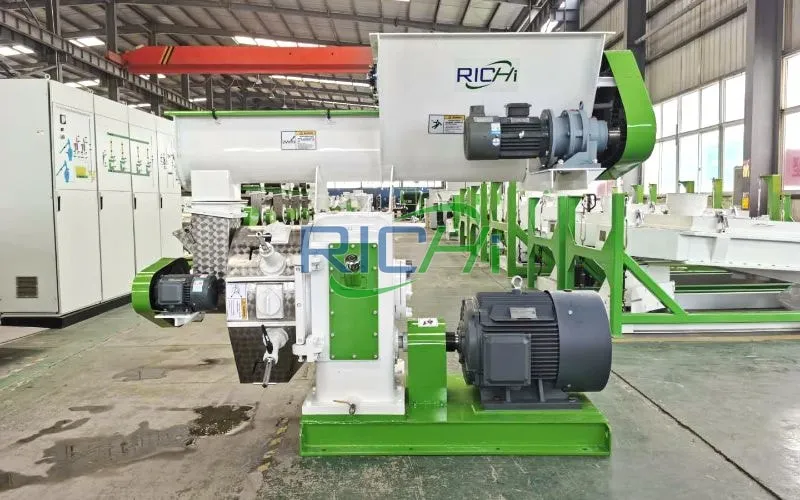

The selected model was MZLH768, configured slightly differently compared to standard wood pellet projects.

Main parameters

• Main motor: 250 kW
• Ring die inner diameter: 762 mm
• Pellet size: 8 mm (chosen for industrial boiler use)
• Feeder system: anti-arching feeder (4 kW) and forced feeder (1.5 kW)

The reason for choosing 8 mm pellets was tied to the end users. Local factories using biomass boilers prefer slightly larger pellets for slower combustion. During commissioning, one adjustment stood out.

Veneer strips tend to bridge inside the hopper. Without proper feeding, the plywood waste pellet mill in Indonesia would experience uneven load.

The anti-arching feeder solved most of this, but feeding angle and speed still required adjustment. These are small things, but they make a difference in daily operation.

What the pellets are used for

The output from this plywood factory edge waste pellet machine in Indonesia is used entirely as fuel. Not for export. Not for retail.

It goes directly to:

• Palm oil mills using biomass boilers
• Small industrial heat users
• Brick kilns in nearby regions

Before installing the plywood pellet press in Indonesia, the factory was actually buying biomass fuel from outside suppliers. Now, they are partially self-sufficient. One interesting point is that the calorific value of these pellets is slightly higher than standard wood pellets due to the presence of adhesive in the raw material. That turned out to be an unexpected advantage.

Shipping route and delivery details

Like most Southeast Asia projects, the machine was shipped from Qingdao Port. The destination port for this plywood edge waste pellet machine in Indonesia was Belawan Port in North Sumatra. Given the tropical climate, packaging focused heavily on moisture protection.

Electrical cabinets and key components were sealed carefully. Anyone who has handled equipment in humid regions knows how quickly corrosion can start if this step is ignored.

Installation notes from the site

This wasn’t a clean, empty workshop. The plywood factory edge waste pellet machine in Indonesia had to be installed inside an active production environment.

That brought a few challenges:

• Limited space between existing cutting lines
• Irregular raw material flow from different sections
• Dust and fiber accumulation around the feeding area

Instead of redesigning the entire layout, the pellet machine was integrated into the existing waste handling system. Material is first roughly broken down, then conveyed to the biomass pelletizer in Indonesia. Not perfect, but practical and cost-effective.

What actually changed after installation

Before the project, edge waste was seen as a disposal problem. After installing the plywood waste pellet machine in Indonesia, it became a usable resource. The factory reduced its reliance on external fuel suppliers.

Waste storage areas became cleaner. Transport frequency for waste removal dropped significantly. One operator mentioned something simple during a follow-up visit: Before, this area was always full. Now we can see the floor. That kind of feedback tells you more than performance data sometimes.

Why this type of machine fits this kind of factory

The plywood factory edge waste pellet making machine in Indonesia works well here because it’s flexible.

It can handle:

• Irregular shapes
• Mixed moisture content
• Materials with small amounts of adhesive

That’s not always the case with lower-end wood pellet machines. Feeding stability and die strength become critical when dealing with plywood waste.

The MZLH768 wood pellet mill model has enough power and die surface area to manage these variations without constant adjustments.

A few technical observations from operation

Instead of listing standard features, here are some real points observed on-site:

• Glue content slightly increases die temperature during operation
• Mixing fine dust improves pellet density
• Stable feeding is more important than high feeding speed
• Regular die cleaning helps maintain output consistency

These are the kinds of details that only show up after running the machine for weeks.

Client feedback after running the machine

After about three months, feedback was received from the client. They said the plywood edge waste pellet machine in Indonesia is running steadily, with output close to expected levels. Maintenance is manageable, and operators have adapted quickly.

Their main comment was:

We didn’t expect the pellets to sell this easily. Apparently, local demand for biomass fuel is stronger than initially thought. They are now considering packaging part of the production for small-scale buyers.

Why projects like this are becoming more common

In Indonesia, plywood and wood processing industries generate large amounts of residue.

Traditionally, much of it is underutilized.

Projects like this plywood factory edge waste pellet machine in Indonesia show a different approach. Turning production waste into an energy product. It’s not just about environmental reasons. It’s also about cost control and resource efficiency.

If you’re dealing with similar materials

If your factory produces edge waste, veneer scraps, or mixed wood residues, it’s worth looking at how consistent your material flow is.

Questions usually discussed with clients:

1. How much waste is generated per shift
2. What is the proportion of glue-containing material
3. Do you already have crushing or drying equipment
4. Is there a local market for biomass fuel

These answers shape the solution more than the machine itself.

At RICHI Machinery, most projects like this start with raw material samples and a lot of back-and-forth discussion. No two factories are exactly the same. If you’re thinking about installing a plywood waste pellet mill in Indonesia or anywhere else, it usually begins with a simple idea. What if this waste could pay for itself?
