Organic manure making machine in Australia: FZLH420 for composted layer manure with 4 mm and 5 mm die options and a defined 6 T/H design duty.

Egg production sets the daily rhythm at this Geelong farm. Compost production follows the condition of each batch. Connecting those two schedules was the practical task behind the owner's investment in a pellet press for manure recovered from approximately 150,000 laying hens.
The organic manure making machine in Australia project centres on one RICHI FZLH420 organic fertilizer pellet machine. Its 90 kW main motor serves an industrial pelleting duty, with a 6 T/H design feed rate specified for the initial 5 mm product-development profile.
The farmer's objective was a traceable poultry-manure fertiliser for regional vineyards, orchards and other agricultural customers. The purchase added pellet formation to the composting arrangement, giving the business a defined stage between preparing manure and delivering a weighed commercial product.
Name:
Layer manure pelletising unit
Country:
Australia
Date:
2024
Capacity:
6-8 T/H
Model:
FZLH420
Main Motor Power:
90 kW
Raw materials:
Composted layer manure
Pellet diameter:
4mm and 5mm
A commercial layer farm supplies a relatively consistent manure source, but collection conditions still affect moisture and physical composition. Material removed from a manure belt can differ from a collection containing floor litter. The feed specification needs to describe what the farm actually recovers.
The manure stream is kept distinct from poultry mortalities, discarded eggs, packaging and cleaning waste. This separation supports a clearer compost recipe and product history. It also helps the operator identify changes when incoming material behaves differently during preparation or pressing.
Wood-based material has a specific job where it is needed. Suitable untreated sawdust or other approved plant material can contribute structure during composting. Its inclusion follows moisture, aeration and the carbon balance, with the existing litter content included in that assessment.
Added wood remains part of the product's material balance. Its condition after composting affects screening, size reduction and the declaration of the finished fertiliser. Persistent oversized fragments need a defined removal or reprocessing route before the material enters a small-diameter die.
Manure collection continues while a compost batch is maturing. The pelleting schedule therefore follows the quantity released for preparation, with covered storage protecting that supply. This lets the owner plan machine operation around ready material and the farm's other work.
The farm's preparation arrangement includes three separate aerobic composting units. Their value lies in keeping batches identifiable through filling, treatment and maturation. Each batch needs its own record of ingredients, handling and condition before it is released to the pelleting section.
Aeration and moisture management support biological treatment. Temperature monitoring needs to represent the material being treated, including locations that heat less readily. Turning or other appropriate mixing redistributes material as required by the selected composting process.
Pasteurisation and maturation have distinct purposes. The first addresses specified biological hazards through a controlled treatment process; the second develops a more stable compost. Release depends on the relevant process evidence and checks for the intended product.
For a poultry manure pellet machine in Australia, a representative trial starts with material at that release condition. Fresh droppings and mature prepared compost present different duties. Identifying the sample's treatment history makes the machinery evaluation relevant to routine production.
After maturation, screening and suitable size reduction prepare the material for feeding. Moisture adjustment is assessed at this point. Drying capacity is required where the feed remains too wet for the agreed process; material already meeting the operating condition can move directly to the next stage.
The three-unit arrangement also supports traceability after sale. A lot identifier can follow the compost through preparation, pressing, finishing and bagging. If an analytical result or handling issue needs investigation, the operator can identify the corresponding material and processing record.
The main development profile is a 5 mm cylindrical pellet, with an approximate length target of 8–16 mm. Australian poultry-industry research has documented a commercial composted poultry-litter fertiliser using approximately 5 mm pellets for conventional spreading equipment.
A second option uses a 4 mm die with a shorter 6–10 mm length target. This profile requires its own trial and application assessment. The two diameters come from separate ring dies, while cutter adjustment helps establish the appropriate length for each profile.
The 6 T/H design feed rate relates to the initial 5 mm trial brief. A smaller die changes the pressing duty, so the 4 mm option needs separate performance acceptance. The saleable specification includes dimensions after cooling and screening, together with the measured fines content.
Vineyard and orchard customers need samples that can be assessed through their actual application equipment. Pellet size, length, bulk density and strength all affect handling. A distribution test helps establish usable settings and whether the product suits the intended spreading or placement method.
The proposed bagged format remains 25 kg. Packaging assessment covers filling, closure, handling and protection during storage. The label and product sheet identify the lot and its declared properties, allowing a grower or rural merchant to relate the bag to its supporting analysis.
An organic fertiliser pelletiser in Australia is selected around this complete product brief. Pelleting contributes a consistent physical format. Nutrient supply, application advice and suitability for a particular crop continue to depend on the tested compost and the receiving soil.

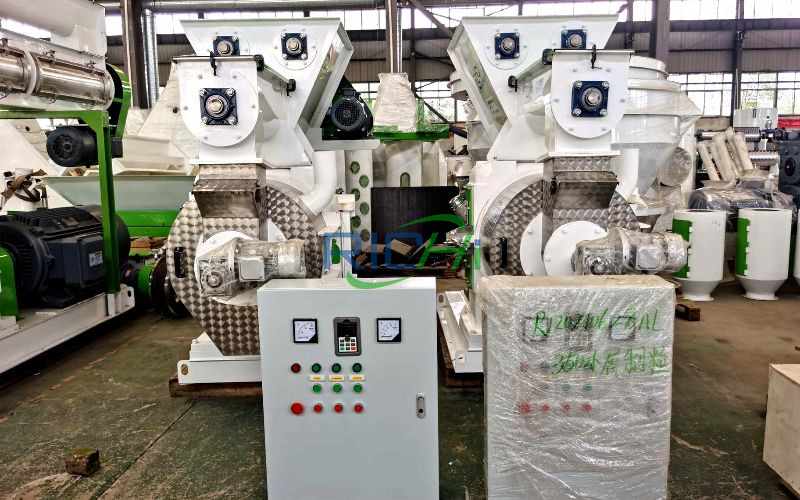

RICHI configured the fertilizer granulator machine selection around treated layer manure. The FZLH420 combines ring-die pressing with arch-breaking and forced-feeding mechanisms, helping deliver prepared organic material into the forming chamber at a controlled rate.
| Pelleting-stage item | Selection and acceptance basis |
|---|---|
| Machine quantity and model | One FZLH420 |
| Rated main drive | 90 kW |
| Arch-breaking mechanism | 3 kW drive |
| Forced-feeding mechanism | 1.5 kW drive |
| Internal ring die diameter | 420 mm |
| Published model capacity | 6–8 T/H; material and configuration dependent |
| Initial design duty | 6 T/H of prepared feed for the 5 mm profile |
| Main product-development target | 5 mm diameter × approximately 8–16 mm length |
| Separately evaluated option | 4 mm diameter × approximately 6–10 mm length |
| Sum of the listed drive ratings | 94.5 kW; additional equipment counted separately |
Acceptance for this organic manure making machine in Australia uses sustained operation with an identified compost recipe. Feed weight, moisture, operating time and motor load are recorded alongside the condition and accepted weight of the finished pellets.
Moisture and particle preparation influence the press's response. Sticky material, persistent fibres or an inconsistent feed can change load and pellet formation. Operating settings therefore follow representative trials, supported by the manufacturer's instructions for the supplied configuration.
The electrical review includes both feeding drives as well as the 90 kW main motor. Their listed ratings total 94.5 kW. Conveying, extraction, cooling and packing add further connected loads, with the site's installer checking supply capacity, starting arrangements and protection.
Existing equipment can remain in service where its condition, interfaces and capacity suit the new duty. The supply schedule identifies the press package and any additional modules. This gives the owner a useful boundary for installation planning and the complete project budget.
A planning example illustrates the difference between prepared feed and the preceding compost stock. Thirty-four tonnes of mature compost at 25% moisture contains 25.5 tonnes of dry solids. Reducing moisture to 15% leaves 30 tonnes of prepared material, after four tonnes of water removal.
These are reference conditions with constant dry solids, used to establish the preparation duty. The operating moisture window must be confirmed for the actual mixture. Drying and any associated heat demand belong in the upstream assessment.
At the 6 T/H design feed rate, the 30-tonne prepared lot represents five productive pressing hours. Stock preparation, start-up, finishing, cleaning and packing require their own time allowance. The farm can schedule such runs as suitable compost becomes available.
Cooling capacity needs to follow the press flow, with screened pellets checked against the agreed storage condition. Fines and unsuitable pieces have an identified handling route. The accepted finished weight determines the number of bags available for sale.
Good operating records also clarify electricity use. A useful measurement identifies the equipment included in the meter boundary and the accepted tonnes produced during the same period. Main-motor nameplate power alone cannot establish the electricity cost of the finished fertiliser.
Victoria's 2025 fertiliser regulations address product descriptions and controls for contaminants including cadmium, mercury and lead. The supplier needs the relevant analysis and label information for the actual product sold.
The product file should identify feedstock origin, treatment history, moisture, organic matter and declared nutrients. Suitable laboratory testing supports the relevant hygiene and contaminant checks. Soil testing and agronomic advice then help the receiving grower determine an appropriate application programme.
EPA Victoria's general environmental duty applies to manure and waste activities. Relevant permissions and any applicable manure-and-effluent determination conditions need assessment for the operation. Runoff, odour, dust and the separation of incoming and treated material belong in site management.
Poultry-derived compost also needs a restricted-animal-material assessment where feed residues or other animal-derived inputs may be present. Applicable warnings and livestock-access requirements follow that assessment. Pressing the material into pellets does not remove those responsibilities.
Where buyers require evidence against AS 4454 or approval for use in certified organic farming, the relevant assessment is part of product qualification. A clear input history and current analysis help support that work. Claims on the bag must correspond to the product's verified status.
For containerised delivery to the Geelong area, Qingdao to the Port of Melbourne is a practical route to assess with the freight forwarder, followed by inland transport. The packing list and lifting information guide unloading arrangements, with booked shipment documents establishing the final routing and timing.
Australia's machinery-import requirements make trial planning important. DAFF treats machinery tested with plant or animal material as used for import purposes. The test method, cleaning arrangements and declaration therefore need agreement before dispatch.
The importer must ensure that machinery arrives free from biosecurity-risk material. Accessible surfaces and concealed areas need appropriate cleaning, with clean storage and loading maintaining that condition. This preparation supports a clearer inspection process on arrival.
Commissioning responsibilities cover installation checks, feeding and discharge interfaces, operating procedures and maintenance access. The local team also needs the component list, lubrication instructions and agreed spare parts. These details help make the chicken manure pellet machine purchase workable beyond delivery.
For buyers reviewing an organic manure making machine for sale in Australia, the useful quotation follows their actual manure and composting arrangement. An itemised scope can cover a single press upgrade or define the additional preparation and finishing equipment needed for an organic fertilizer production line.
RICHI's role in this organic fertilizer production project is equipment manufacture and process configuration. For the Geelong farm, the selection connects an identifiable layer-manure source, three composting units and a defined pelleting duty with the product requirements of agricultural buyers.
Discuss an organic manure making machine in Australia with RICHI MACHINERY. Provide a representative prepared-compost sample, the quantity available between production runs and the preferred pellet profile to request a trial plan, equipment specification and itemised quotation.
