1 T/H Compost Fertilizer Making Machine In New Zealand

Compost fertilizer making machine in New Zealand: FZLH250 for 1 T/H batch processing of mature sheep manure and wool compost into 8 mm pellets.

1 T/H Compost Fertilizer Making Machine In New Zealand

OVERVIEW

The wool was taking up space in the shed long before a pellet press entered the discussion. On a 160-hectare sheep property on Canterbury's plains, the owner had accumulated about eight tonnes of lower-grade wool. Short pieces and poorer fleece fractions needed an outlet alongside manure collected around the farm's working areas.

The compost fertilizer making machine in New Zealand specification centres on one FZLH250 ring die press, with a design feed rate of 1 tonne per hour. The business is a farm-based batch operation: material is prepared and matured first, then pelleted in campaigns that fit around livestock work.

The intended product is an 8 mm cylindrical compost pellet containing sheep-manure compost and processed wool. The useful connection between those materials is local and practical. Both arise from sheep farming, but each needs its own collection, preparation and quality checks before the mixture reaches the die.

  • Name:

    Sheep manure & wool pellet machine

  • Country:

    New Zealand

  • Date:

    2024

  • Capacity:

    1 T/H

  • Model:

    FZLH250

  • Main Motor Power:

    22 kw

  • Raw Materials:

    Sheep manure–wool compost

  • Pellet diameter:

    8mm

Start with what can actually be collected

A grazing property produces manure across its paddocks. Much of that material remains within the pasture nutrient cycle. The processing assessment therefore focuses on collectable deposits and bedding from holding areas, yards and sheds, with quantities established by weighing the material brought into preparation.

Wool arrives differently. Shearing and sorting create occasional lots that can be stored separately until a compost batch is ready to receive them. Keeping a record of each lot helps distinguish wool already in storage from a repeatable annual supply available for a commercial production plan.

The two materials also behave differently in a pile. Wool can form dense, resilient bundles, while manure may bring moisture, fine solids and grit. A clean timber-derived bulking material can help create an aerated structure. Its quantity follows the actual mixture rather than a fixed percentage applied to every batch.

Material stream Preparation requirement Point to check before use
Lower-grade farm wool Sort, open bundles and reduce fibre length with suitable equipment Treatment history, synthetic contamination and persistent clumps
Collected sheep manure and bedding Remove debris, blend and manage through composting and curing Moisture, grit, hygiene and maturity
Untreated sawdust or fine wood shavings Use as an assessed bulking component during compost preparation Source, cleanliness and effect on the mixture's carbon balance

This sheep manure pellet machine in New Zealand application depends on those collectable streams. Flock numbers and pasture area are useful background information, but a production budget needs measured raw-material receipts, compost yield and the quantity of prepared feed actually available for pressing.

Loose wool needs its own preparation

Sorting starts with the wool itself. Farm fleece pieces need separating from bale twine, plastic packaging and other foreign material. Wool sourced from shearing is kept identifiable, with animal treatment information available for the assessment of residues and the intended fertilizer use.

Opening bundles makes the fibres easier to distribute through a compost mixture. Suitable cutting equipment is then assessed using the actual greasy or contaminated wool. Cutter selection matters because resilient fibres can wrap around rotating components or remain as long strands after an unsuitable size-reduction step.

The wool preparation equipment has a separate duty from the compost pellet press. A trial should establish whether the prepared wool disperses through the mixture and stays dispersed during turning. Wet, compacted mats need attention before they become persistent pockets inside the pile.

Wool contains keratin, a nitrogen-bearing protein with a structure that resists rapid breakdown. Composting conditions and the form of the fibre influence decomposition. Adding wool therefore changes the biological preparation work as well as the physical handling of the mixture.

The practical aim is an aerated blend that can be managed throughout treatment. Wool inclusion is adjusted against pile behaviour, moisture and the resulting compost quality. A large wool stockpile gives the owner a resource to assess; it does not establish the amount suitable for every batch.

A stable compost batch earns its turn at the press

Composting and curing take place upstream of pelleting. Turning or another suitable aeration method, moisture management and records of treatment conditions support that work. The release decision needs evidence of stability, maturity and appropriate hygiene treatment for the intended product.

A calendar date alone cannot establish readiness. Wool-rich pockets may behave differently from the surrounding manure and bedding. Sampling across the pile, checking for renewed heating and examining the material's structure help identify where further treatment or remixing is needed.

Some fibre fragments can remain in a stable compost. Their length and quantity still matter to the next processing stage. Tough strands and compacted lumps are separated during preparation and assessed for further treatment before the accepted fraction is sent towards the press.

The moisture required for pressing is established with representative compost samples. Trials need to examine feed flow, motor load, pellet formation and the condition of the die. Drying arrangements are assessed against that agreed feed condition and the farm's seasonal working environment.

Size reduction follows the condition of the matured material. The friable compost fraction can be broken down and screened, while any remaining wool-rich fraction needs suitable fibre preparation. The final particle distribution and freedom from entangling strands are more useful specifications than a grinder screen size alone.

The pelleting duty stays within a farm routine

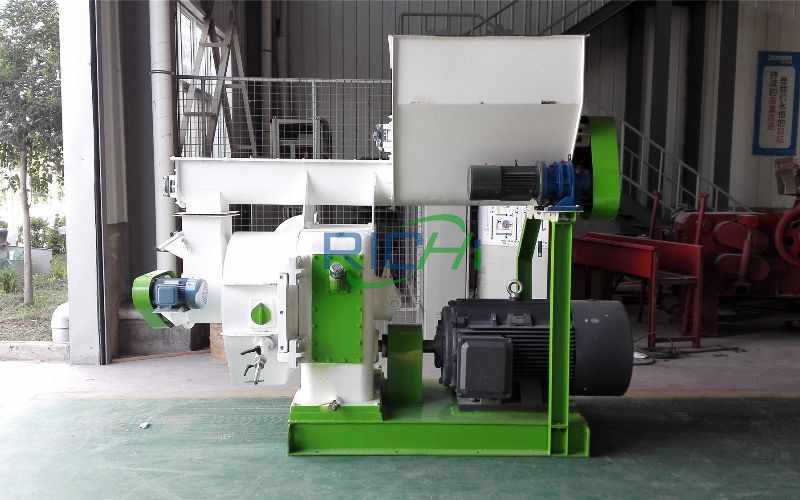

The FZLH250 compost pellet machine in New Zealand configuration gives this project a defined forming stage. Prepared compost is fed through the feeding system into the ring die chamber, where rollers compress it through the die holes. The cutter sets the approximate pellet length.

The design product is 8 mm in diameter and approximately 10–20 mm long. That specification gives the owner a consistent form for handling and application trials. Length distribution, breakage and fines are checked after cooling, using the product that will actually enter the bag.

Component or duty Selection for this project
Pelleting unit One FZLH250 ring die compost press
Press motor nameplate 22 kW
Arch-breaking mechanism drive 2.2 kW
Forced-feed mechanism drive 0.75 kW
Inside diameter of ring die 250 mm
Published model output reference 1–1.5 T/H, dependent on material and configuration
Batch-planning feed rate 1 T/H of prepared, mature compost
Selected pellet dimensions 8 mm diameter × approximately 10–20 mm length
Order scope Single press with its specified feeding components

The compost fertilizer making machine in New Zealand material test needs the same compost composition and fibre preparation intended for regular production. Weighing feed, accepted pellets and recovered fines over a timed run connects the equipment selection with a measurable operating result.

The listed motor ratings add up to 24.95 kW. The electrical assessment also covers starting requirements, protection and the loads of any conveyors, extraction or finishing equipment. The farm's available supply is checked against that complete schedule before installation.

Batch operation suits material accumulated through shearing and compost preparation. It also gives the farm a clear stopping point for inspection, cleaning and recording the output of each lot. Production frequency follows mature compost availability and orders, rather than a continuous-shift assumption.

Weigh the water before estimating output

Moisture removal can account for a substantial part of preparation. Consider a sizing example that starts with 4,200 kg of mature compost at 40% moisture. That material contains 2,520 kg of dry solids, with composting losses already outside the calculation.

If preparation brings the material to an assumed 16% moisture, those dry solids remain in 3,000 kg of feed. The difference is 1,200 kg of water removed. The 16% value is an engineering example; the working moisture setting comes from the actual compost trial.

At the 1 tonne/hour design feed rate, that prepared batch represents three productive pressing hours. Cooling, screening, loading and packing take additional time. Contaminants removed during cleaning and solids rejected during preparation require separate records.

Finished weight is measured after cooling and screening. Water loss and rejected material affect the quantity available for sale, while reusable fines stay identified within the batch. This prevents gross material passing through the press from being counted as an equal weight of bagged product.

Give horticultural buyers a usable specification

The intended customer base is horticultural: orchard and vineyard operators, ornamental growers and other buyers able to assess the compost within a soil management programme. The proposed 20 kg bag supports local handling, with the accepted product weight determining the number of bags released from each batch.

Cooling needs an arrangement matched to the batch quantity. A ventilated holding system or a suitable mechanical cooler can be assessed, with temperature and moisture checked across the material before bagging. Product below the surface needs checking as well as the exposed pellets.

A product sheet should report the measured moisture, organic matter and relevant nutrients on a stated analytical basis. Hygiene, maturity and suitable contaminant testing support product release. Wool contributes organic nitrogen, but the amount available to a crop over time needs assessment for this particular compost.

Application trials can examine how the pellets wet, soften and mix with soil under the intended irrigation conditions. Spreaders require calibration with the actual pellets. For nursery or potting use, the compost's salinity, maturity and suitability for the growing medium deserve separate evaluation.

Because the mixture includes sheep-derived keratin, its product assessment also needs to address New Zealand's ruminant-protein rules, including any applicable labelling and stock-access requirements. Packaged fertilizer is kept separate from livestock feed, and its horticultural use instructions need to match the assessed product.

The sales claims and product status should be reviewed against MPI guidance for fertilizers and soil conditioners. Canterbury site conditions also need checking against relevant composting and discharge requirements. Organic certification, where sought, is a separate assessment of materials and production practices.

Build the order around a representative sample

For an organic fertilizer pelletizer in New Zealand, a useful test sample includes the processed wool fraction expected during routine production. It should come with the compost recipe, treatment record, moisture analysis and a description of the remaining fibres. That information helps define the pressing trial.

The supply schedule identifies the press, feeders, selected die, controls and interfaces. Wool preparation, compost treatment, drying, cooling, screening and bagging have their own responsibilities within the project. The layout review connects these duties and checks safe access for operation and maintenance.

Delivery planning can use Qingdao as the departure port and Lyttelton as the South Island gateway for the Canterbury site. The transport quotation needs confirmed package weights, dimensions and lifting points, followed by an inland unloading plan. The booking establishes the actual route and transit schedule.

A compost granulator for sale in New Zealand also needs a practical wear-parts and service plan. Die and roller selection follows the prepared material, while inspection looks for grit damage, fibre build-up and uneven feeding. Maintenance instructions and spare-part identification belong with the supplied machine.

RICHI's role is to manufacture the organic fertilizer pellet machine and assess the interfaces around its pelleting duty. The farm remains responsible for compost treatment and product release. A fertilizer granulator machine proposal is strongest when those responsibilities are tied to an agreed material test.

For a compost fertilizer making machine in New Zealand enquiry, send RICHI MACHINERY the wool preparation details, mature compost analysis and tonnes available per batch. Add the target pellet size, intended application and power information so the equipment recommendation follows the material the farm can reliably prepare.
