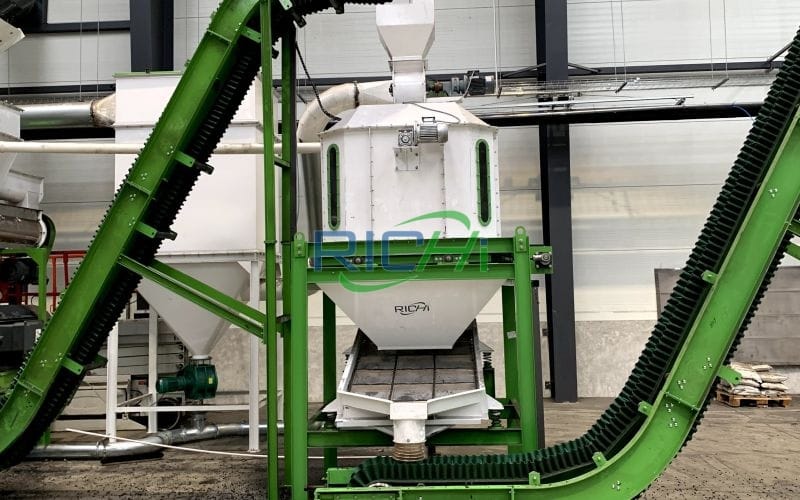

25-30 T/H Large Biomass Pellet Cooler in South Korea

Meeting Stringent Quality Standards for Industrial Biofuel

Our client operates a major biomass pellet plant in a coastal industrial complex, primarily processing imported wood chips and domestic forestry residues into industrial-grade wood pellets. These pellets are supplied under strict, long-term contracts to power plants and large-scale heating systems that have precise specifications for moisture content, durability, and safe handling.

Their existing cooling solution, a bank of several small, older vertical coolers, had become a bottleneck. It caused inconsistent cooling, leading to occasional hot spots in pellet batches. More critically, it contributed to an unacceptably high fines generation (pellet breakage) rate, which directly reduced their saleable product yield and posed a dust explosion risk in their automated bagging and silo system.

To secure their reputation as a premium supplier and improve overall plant yield, they initiated a project to replace their outdated setup with a single, high-capacity, gentle cooling solution. This was a definitive replacement project—they sought to purchase a single, advanced biomass pellet cooler that could handle their entire biomass pellet production line output with greater efficiency and gentler product handling.

Material Profile and the Demand for Precision Cooling

The material is standardized industrial wood pellets, 6mm and 8mm in diameter, produced from a mix of softwood and hardwood. Exiting the biomass pellet mill at 80-90°C, these pellets are dense and have a relatively low moisture content (≈8% after drying) but carry significant sensible heat.

The cooling objective is twofold: first, to reduce the pellet temperature to within 3-5°C of the ambient plant temperature (around 20-25°C) to ensure thermal stability for bulk storage and transport; second, and equally important, to achieve this cooling with minimal mechanical abrasion to preserve the pellet's structural integrity and minimize the creation of dust (fines).

Given the plant's high output of over 25 tons per hour and the critical need for minimal breakage, RICHI engineers proposed the large-capacity SKLF28*28 Flip-Plate Counterflow Cooler. This model, rated for 25-30 T/H, was the perfect fit.

The flip-plate discharge mechanism was specifically selected for its reputation for gentler handling compared to rotary vane systems, especially for hard, dense pellets. The large, octagonal cooling chamber ensures an even air distribution and minimizes dead zones.

The advanced hydraulic system controlling the flip plates allows for smooth, shock-free discharge, which is directly linked to preserving pellet durability. This industrial pellet cooling system was designed to be the linchpin in their quality assurance chain post-pelletizing.

Operational Impact: Enhancing Yield, Safety, and System Integration

The integration of this high-capacity biomass pellet cooler delivered measurable improvements across key performance indicators:

1. Significant Reduction in Fines: The gentle flip-plate action led to an immediate and measurable drop in pellet breakage, increasing their saleable product yield by over 1.5%—a substantial financial gain at their production volume.
2. Perfect Cooling Consistency: The counterflow design and precise level control eliminated hot spots, ensuring every pellet met the temperature specification required by their off-takers, enhancing their reliability as a supplier.
3. Improved Plant Safety: By drastically reducing the amount of fine dust generated at the cooling stage, the cooler lowered the overall combustible dust load in the plant, contributing to a safer working environment.
4. Seamless Automation: The cooler's reliable mechanical level sensor and consistent discharge integrated flawlessly with their downstream automated screening and conveying system, improving overall line uptime.

This pellet cooling machine transformed from a source of product degradation and risk into a key asset for quality optimization and yield improvement.

Logistics to a Technologically Advanced Market: Shipping to the Port of Busan

The SKLF28*28 cooler is a substantial piece of equipment. It was manufactured in modular sections, pre-assembled for alignment verification, and then expertly disassembled and crated for ocean transport. The shipment left Qingdao Port on a dedicated vessel.

The destination was the Port of Busan, South Korea's largest port and a global hub renowned for its efficiency in handling complex project cargo. Busan's state-of-the-art facilities guaranteed a smooth and timely delivery process for the client's sophisticated logistics team.

The Decision-Making Process: Why RICHI Met South Korea's High Standards

The client's evaluation was rigorous, involving detailed consultations with European and Asian manufacturers. RICHI's SKLF series cooler was selected based on a compelling technical and value proposition:

• Focus on Pellet Integrity (PDI): Our proposal centered on data showing how the flip-plate design minimizes shear forces on pellets, directly addressing their core yield problem. We provided comparative Pellet Durability Index (PDI) projections.
• Advanced Control for Integration: We offered an optional programmable logic controller (PLC) interface package that allowed the cooler to communicate seamlessly with their plant-wide SCADA system, providing real-time data on cooling status and alarms.
• Superior Construction Details: The use of wear-resistant materials in high-impact areas and the robust hydraulic system design promised lower lifetime maintenance costs and higher availability.
• Compliance-Oriented Design: We highlighted features like dust-tight construction and integrated safety interlocks that aligned with South Korea's stringent industrial safety regulations.

Feedback from the Plant's Chief Process Engineer

"Our goal was to find a cooler that acted as a quality-preserving device, not just a heat extractor. The RICHI SKLF28*28 biomass pellet cooler has performed exactly to that specification. The reduction in fines is not marginal; it's a step-change that has positively impacted our bottom line. The cooling uniformity is excellent, which is critical for our QA/QC protocols. The machine's construction is robust, and the hydraulic system operates very smoothly.

The integration with our control system was straightforward thanks to the clear communication protocol provided. For a large-scale pellet producer in South Korea competing on quality and reliability, investing in a high-performance pellet cooling system like this one is a strategic decision. The RICHI team provided strong technical support throughout the commissioning phase."

The Essential Role of Cooling in Diverse Pelletizing Industries

While this project highlights a biomass pellet cooler in South Korea, the fundamental cooling requirement is universal across all pelletizing sectors. A high-performance counterflow pellet cooler is indispensable for:

• Animal Nutrition: Cooling feed pellets to stabilize vitamins, prevent fat oxidation, and ensure hygienic storage.
• Organic Fertilizers: Cooling fertilizer granules to stop chemical reactions, prevent caking, and ensure safe bagging.
• Advanced Materials: Processing plastic or chemical pellets where precise thermal control is needed for crystallization or stability.

The core benefits of efficient heat removal, moisture reduction, gentle handling, and improved storage stability make it a non-negotiable component in any modern pellet production line.

RICHI Machinery: Partnering for Precision and Performance

Our engagement with the South Korean client exemplified a collaborative engineering partnership. We conducted a pre-installation audit of their downstream handling system, provided 3D layout drawings for space optimization, and delivered comprehensive functional specifications for their automation team.

We understand that in mature markets, equipment must not only work in isolation but must elevate the performance of the entire production system.
