8t/h Straw and Waste Wood Pellet Production Line Project

  • Clicks:

Invest in a project to process 20,000 tons of biomass pellet fuel annually. The leased workshop area of ​​the project is 1682 square meters and the investment is 8 million RMB. The project mainly processes waste wood and crop straws into biomass pellet fuel for external sales. After the project is completed and put into production, it will have an annual production capacity of 20,000 tons of biomass pellet fuel.

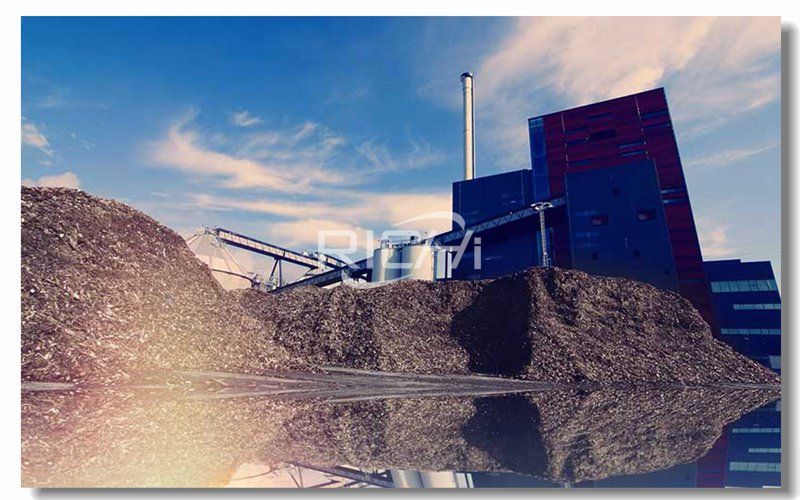

Straw and Waste Wood Pellet Production Line Project
Straw and Waste Wood Pellet Production Line Project

1. Project overview of straw pellet production line

  • Project name: Biomass pellet fuel project with an annual output of 20,000 tons
  • Daily output: 66 tons per day crop straw pellet production line project
  • Hourly output: 8T/H straw and waste wood pellet production line project
  • Construction nature: new construction
  • Construction unit: a limited company in Binhai County
  • Construction site: Binhai County, Yancheng City
  • Total investment: 8 million RMB

2. Raw and auxiliary materials and production equipment

Table 1-1 Main raw and auxiliary materials

Serial number Name of raw and auxiliary materials Quantity unit source
1 Crop straw 6000.99 t/a Outsourcing; mainly corn stalk, rice, wheat; about <1.5m in length; moisture content below 13%
2 Waste wood 14000 t/a Outsourcing; about 4-8cm wide; moisture content below 13%
3 water 60 m3/a Park water supply network
4 Electricity 20000 kwh/a Park grid

Table 1-2 List of main production equipment

Serial number Equipment name Specification model Quantity unit
1 Granulator Model 560 2 station
3 Discharging machine 600*3m/600*10m 2 station
4 grinder 650-1000 1 station
5 Outfeed conveyor 650*10m 1 station
6 Bag filter Φ220*240 2 station
7 Fan 4-13-29 3 station
8 Windshield 400*400 1 station
9 Cyclone Φ1200 1 station
10 Feeder 600*10m/600*6m 2 station
11 Sealer / 1 A

3. Water and energy consumption

Water and energy consumption are shown in Table 1-3

Table 1-3 List of water and energy consumption

name consumption name consumption
Water (tons/year) 60 Steam (ton/year) -
Electricity (kWh/year) 20000 Gas (cubic meters/year) -
Coal (tons/year) - Biomass fuel (tons/year) 20000.99

4. Product standard of straw pellet production line

Table 1-4 Biomass pellet fuel product quality standards

Fuel properties unit Level 1 Level 2 Level 3
specification mm The length is less than 4 times the diameter The length is less than 5 times the diameter The length is less than 5 times the diameter
Bulk density Kg/m 3 ≥600 ≥500 ≥500
Mechanical durability % ≥97.5 ≥95 ≥95
The

amount of fine particles less than 3.15mm

%

≤1.0

≤1.0

≤1.0
Total moisture (received base) % ≤10 ≤12 ≤15
Ash (dry basis) % ≤6 ≤8 ≤12
Receive base low heat MJ/kg ≥14.6 ≥13.4 ≥12.6

5. Construction scale and products

The project will produce 20,000 tons of biomass pellet fuel annually. The company's product plan is shown in the following table 1-6:

Table 1-5 Project product plan

 Serial number  product name Production quantity  unit  Remarks
 1  Biomass pellet fuel  2  10,000 tons/a /

6. Construction content of straw and waste wood pellet production line

This project is to lease the No. 10 workshop of Jiangsu Shuangna Lighting Co., Ltd., with a construction area of ​​1682m2. There is mainly a one-story steel structure workshop, including a production area of ​​400m2, a raw material area of ​​600m2, and a finished product area of ​​682m2. The specific project composition is shown in Table 1-7.

Table 1-6 List of project composition

  Project classification project name Construction content and scale Remarks


structural work


Manufacturing Plant

Production area
The main production processes are granulation and crushing; the construction area is
400m 2 ; the annual output is 2t/a

Lease No. 10 workshop of Jiangsu xx Co., Ltd.
Finished product area Product manual packaging area and storage area; construction area of ​​682
m2
Storage and Transportation Engineering Raw material area Unloading and raw material storage area; construction area of ​​600 m 2


Public works
powered by 20,000 kwh/a, provided by the park power grid /
Water supply 60m 3 /a, provided by the water supply network of the park /
drain 48m 3 /a, agricultural fertilizer is operated outside the septic tank, not
discharged.

Environmental Engineering
Waste gas treatment
Crushed dust + Collector cyclone collector hood (1 set) + addition bag
dust (1 set) +15 m discharge pipe (1)

Share 1 exhaust tube
Granulating dust Collection hood + collector baghouse (set 1) + 15m rows of
cylinders (1)
Wastewater treatment Sewage treatment After being treated in a septic tank, it is transported to be used as agricultural fertilizer and not discharged. Relying on the existing septic tank of Jiangsu Shuangna Lighting Co., Ltd.
Noise processing noise Take low-noise equipment, plant sound insulation, sound insulation and other measures
applied
/
Solid waste Domestic garbage Sanitation Department Clearance /

7. Labor quota and work system

The project has a labor force of 4 people, with an annual working day of 300 days, and the production system is one shift per day, with 8 hours of working time per shift, without accommodation in the factory.

8. Environmental protection investment in straw and waste wood pellet production line

The environmental protection investment of this project is 180,000 RMB, accounting for 2.3% of the total investment (8 million RMB). The environmental protection investment estimate of the project is shown in Table 1-7.

Table 1-7 Project Environmental Protection Investment Estimate Table


category

Pollution source

Pollutants

Governance measures
Investment (ten thousand
dollars)

Complete time



Exhaust


Process waste gas

Crushed dust
Collecting hood collection + cyclone dust collector (1
set) + bag dust removal (1 set)


12
The main body apparatus designed, administration
work, administered concurrently
Granulating dust Air collecting hood collection + bag dust removal (1 set)
/ 1 15m high exhaust pipe

Waste water

domestic sewage
COD, SS,
TP, ammonia nitrogen
Septic tank (relying on the
existing Jiangsu Shuangna Lighting Co., Ltd.)

0

noise

Production equipment

noise
Low-noise equipment, plant sound insulation, and other
sound insulation measures

4
Solid waste life Domestic garbage Trash can, sanitation and transportation 2
total 18

9. Process flow of straw and waste wood pellet production line

(1) Unloading: the purchased crop stalks (mainly corn stalks, rice, wheat; about 1m-1.5m in length; moisture content below 13%), waste wood (about 8cm wide; moisture content below 13%) Transportation and unloading to the silo of the production workshop, this process produces unorganized dust (Gu1); due to the large straw and wood particles, the amount of dust generated is small and unorganized discharge.

(2) Crushing: The raw materials in the silo are transported to the crusher by the conveyor belt, and the straw or wood chips are crushed into tobacco shreds with the crusher. The crushed particles have no impurities such as inclusions, and no screening is required. The dust collecting hood is generated during the crushing process (95% collection rate) It is collected and recycled through cyclone dust removal and bag dust removal, and then discharged through a 15m exhaust cylinder. This process produces dust (G1), and the collected dust is reused in the granulation process. The untrapped dust (Gu2) is discharged unorganized.

(3) Granulation: The raw materials purchased in this project are all dry materials with a moisture content below 13% and can be dried without drying. Therefore, the crushed raw materials can be directly sent to the pelletizer, and the raw materials are pressurized and extruded. Compressed into granules, and then compressed by external force, the arrangement of loosely stacked solid particles begins to change, The voids inside the biomass are reduced. When the pressure gradually increases, the large biomass particles rupture under the action of the pressure, become smaller particles, and undergo deformation or plastic flow. The particles begin to fill the voids, and the particles are in closer contact and mesh with each other. A part of the residue should be stored In the inside of the forming block, the bond between particles is stronger. The dust generated in the granulation process is collected by the air collecting hood (95% collection rate), and discharged through a 15m exhaust cylinder (G2) after being collected by bag dust removal, and the collected dust is reused in the granulation process. The untrapped dust is discharged unorganized (Gu2).

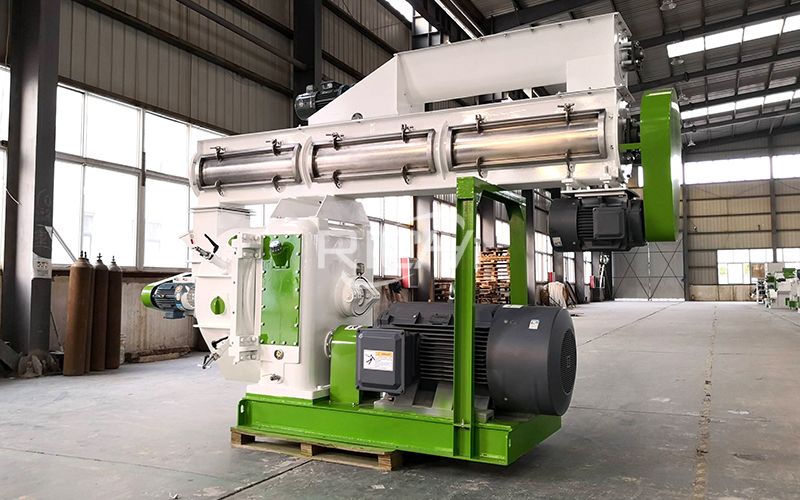

Wood Pellet mill
Wood Pellet mill

(4) Packaging and warehousing: After the granulation is completed, the biomass fuel particles are manually packaged with a sealing machine; they are warehousing and finally sold out. The pelletized biomass fuel has a particle size of 0.6cm, which is relatively large, so no dust will be generated during the packaging process.

The above is the article for you: 8t/h Straw and Waste Wood Pellet Production Line Project. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: sales@cnrichi.cn
